1. Support network: quad-band network
2. Operating voltage: 3.7-4.2V (current peak 1A, please do a good job)
3. Serial port is TTL serial port, can be directly linked with the microcontroller
4. Module power-on automatic boot, automatic network search
5. Board all the way signal indicator (signal slow flash, no signal fast flash)
6. Full machine chip processing, reflow soldering, stable performance, power supply can be directly powered by lithium batteries
7. Weight: about 5.4 g

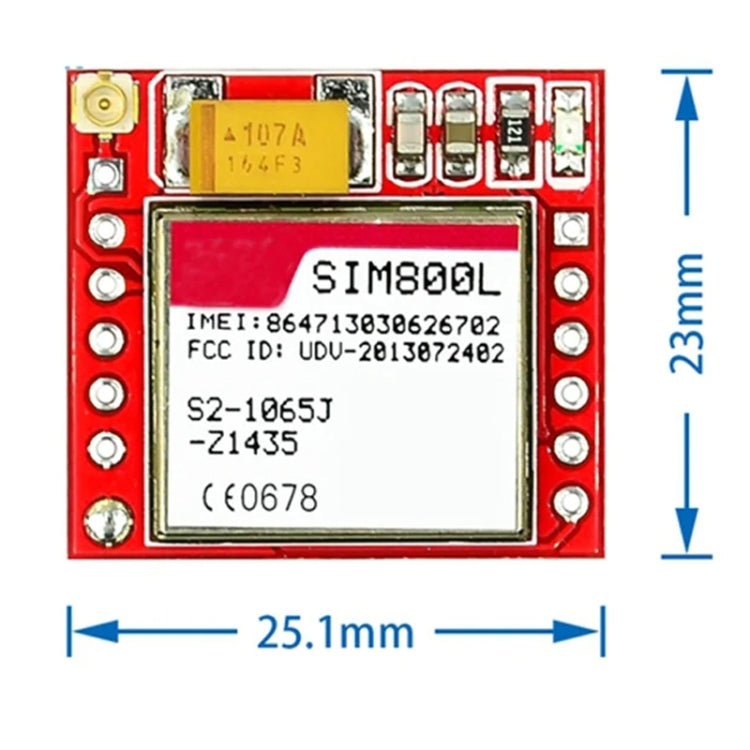

8. Module size: about 2.5 x 2.3 cm
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.03lb
|
| One Package Size |
8cm * 5cm * 1cm / 3.15inch * 1.97inch * 0.39inch
|
| Carton Weight |
11.90kgs / 26.23lb
|
| Carton Size |
50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 520 cartons * 1080 pcs = 561600 pcs
40HQ: 1209 cartons * 1080 pcs = 1305720 pcs
|
|
