1. Measuring range: 0μm - 1700μm
2. Measurement principle: magnetic and eddy current thickness measurement
3. Resolution: 0.1μm (0 - 99μm) 1μm (100 - 1700μm)
4. Measurement repeatability: 1μm 0-500μm / 2μm 500-1500μm
5. Measuring area (minimum): magnetic 25x25mm; non-magnetic 25x25mm
6. Curvature (minimum): convex 5mm; concave 30mm
7. Substrate thickness (minimum): magnetic 0.2mm; non-magnetic 0.05mm
8. LCD backlight: yes
9. Low battery warning: yes
10. Zero calibration: yes
11. Basic calibration: yes
12. Single/continuous measurement: yes
13. Auto power off: yes
14. Unit conversion: yes
15. Operating environment: 0-50°C
16. Power supply: 2 x 1.5V AAA batteries (not included)
17. Data storage: 20 data sets
18. Automatic calibration: calibrates based on five different calibration substrates: 0/50/100/250/500

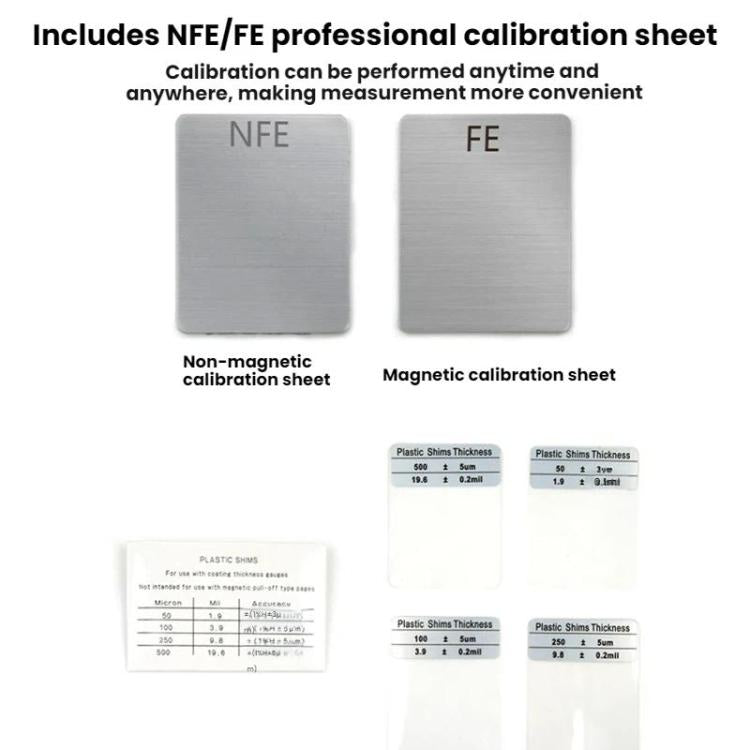

19. Includes NFE/FE professional calibration sheets for convenient calibration anytime, anywhere

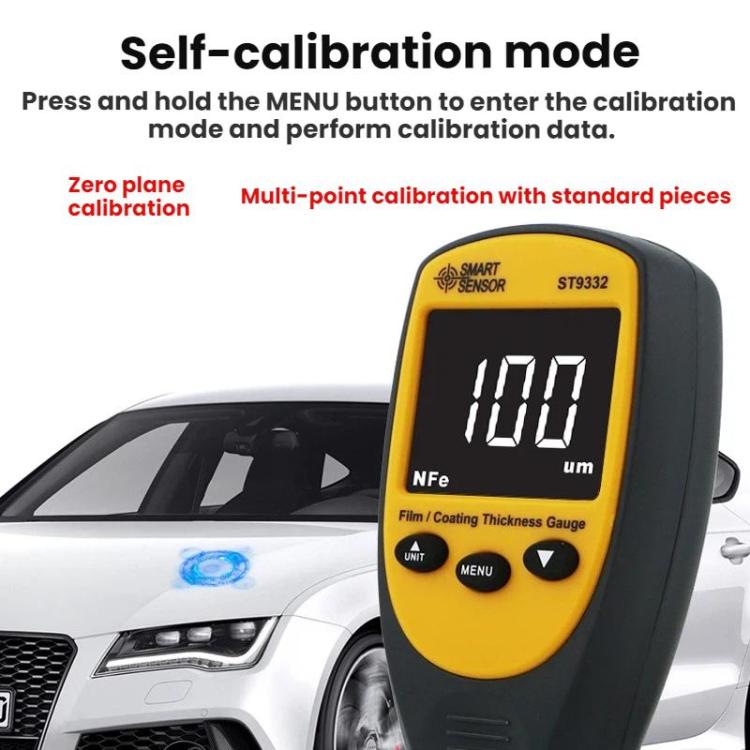

20. Press and hold the MENU button to enter calibration mode, which allows for calibration data, zero calibration, and multi-point calibration using standard sheets

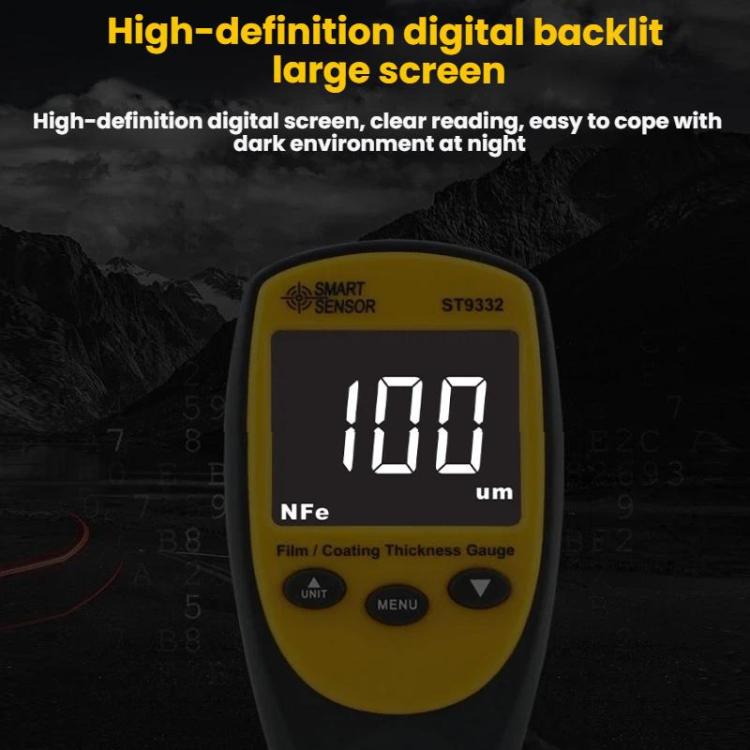

21. High-definition digital screen with backlight for clear readings, perfect for dark environments

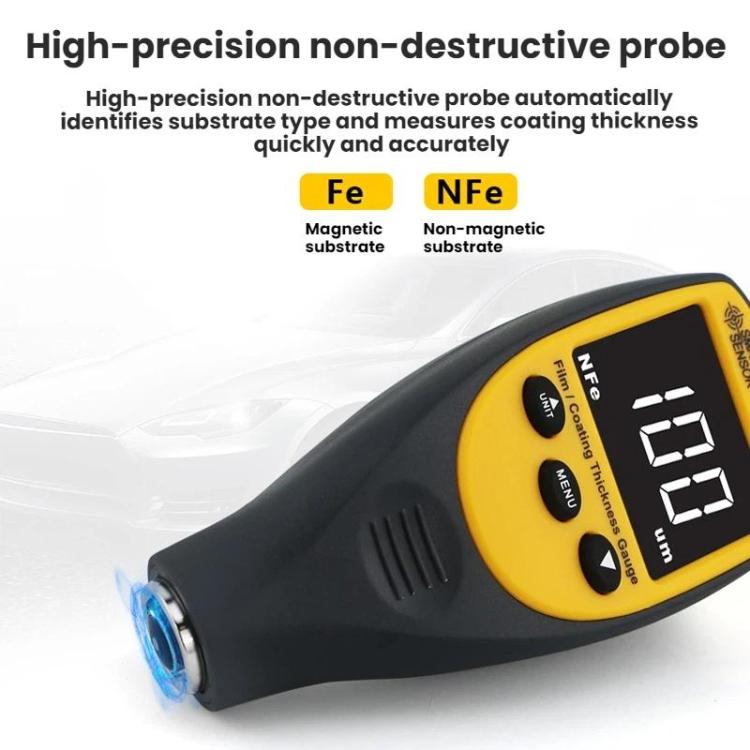

22. High-precision, non-destructive probe automatically identifies substrate type for fast and accurate coating thickness measurements

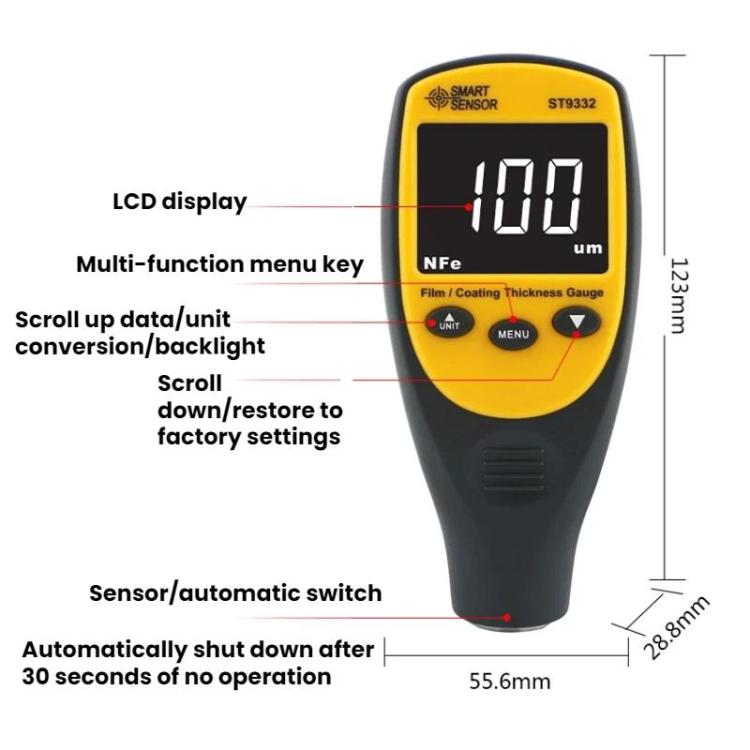

23. Dimensions: 123 x 55.6 x 28.8 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.48kgs / 1.06lb
|
| One Package Size |
24cm * 20cm * 6cm / 9.45inch * 7.87inch * 2.36inch
|
| Carton Weight |
10.70kgs / 23.59lb
|
| Carton Size |
41cm * 28cm * 50cm / 16.14inch * 11.02inch * 19.69inch
|
| Loading Container |
20GP: 464 cartons * 20 pcs = 9280 pcs
40HQ: 1078 cartons * 20 pcs = 21560 pcs
|
|
