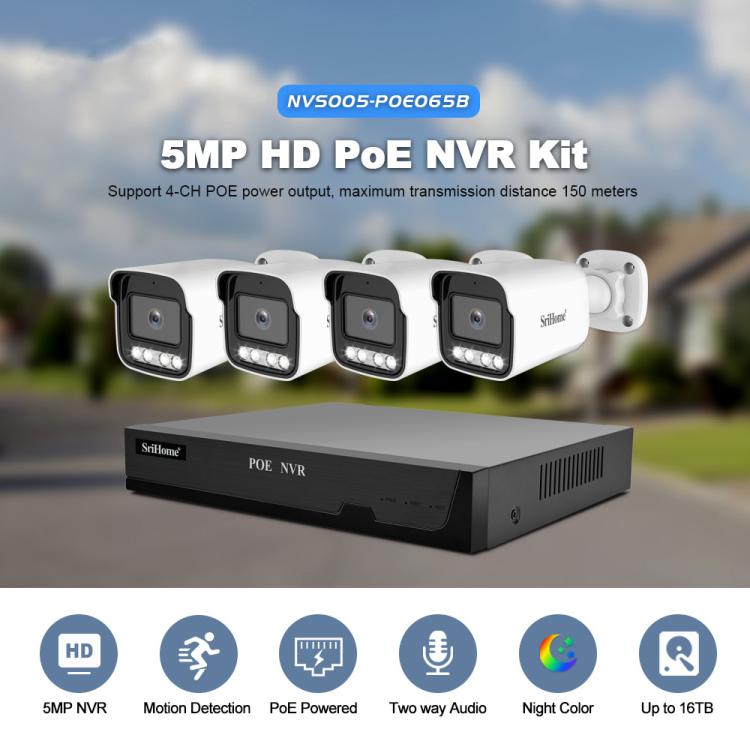

1. HD 5MP PoE camera with preview, storage, and playback support.
2. Built-in microphone and speaker with two-way audio support.
3. Three night vision modes: infrared dual-light, full-color night vision, and human tracking.
4. Supports up to 16TB hard drive storage, with 1TB storing about 20 days.

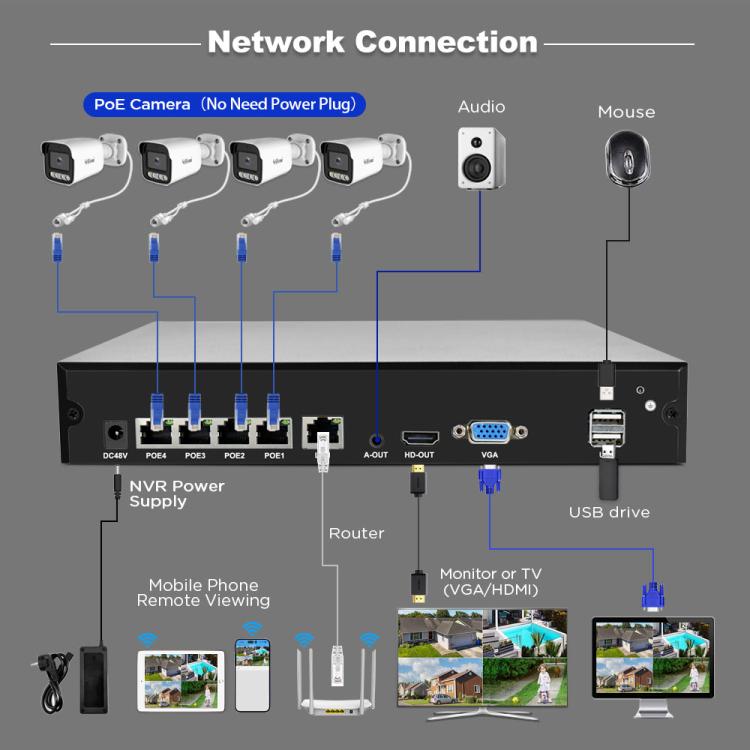

5. Supports 4-channel PoE power output with a maximum power supply distance of 150 meters.
6. Supports H.264/H.265 encoding with adaptive front-end access.
7. AI intelligence: supports human alarm, motion detection alarm, alarm siren
8. Supports mobile phone remote monitoring, intercom, and playback.
9. Utilizes the SriNPT protocol, requiring no IP configuration for plug-and-play operation.
10. Expandable to up to 16 channels of simultaneous monitoring.
NVS005 Specifications
Video Output: HDMI, VGA
Compression/Decoding Format: H.264/H.265
Video Decoding: 1x5M/25fps (Main Stream), 16xD1/25fps (Common Stream)
Audio Output: HDMI, AUX
Audio Decoding Format: G.711U, AAC
Hard disk Interface: 1 x SATA, SSD & HDD
Hard disk Capacity: Max. 16TB (not included)
Video Recording: All-day recording, scheduled recording, alarm recording
Video Backup: USB backup and hard disk backup
Network: RJ45 wired connection
Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
Alarm Methods: Motion detection alarm, human detection alarm, human tracking
Alarm reminder: App push
I/O Interfaces: 1000M RJ45 x 1, 2 USB 2.0 x 2, HDMI x 1, VGA x 1, AUX audio x 1, DC 52V/48V 2.3A x 1
App: Support SriHome APP, IOS and Android remote access
POE065 Camera Specifications
Main Processor: Multi-core high-speed processor
Sensor: 1/3 inch, 5MP HD color CMOS sensor
Compression format: H.265
Lens focal length: 4mm
Viewing angle: Horizontal 80 degrees, Vertical 58 degrees, Diagonal 98 degrees
Video resolution: 5MP (2560x1920P), VGA (640x360), 15fps

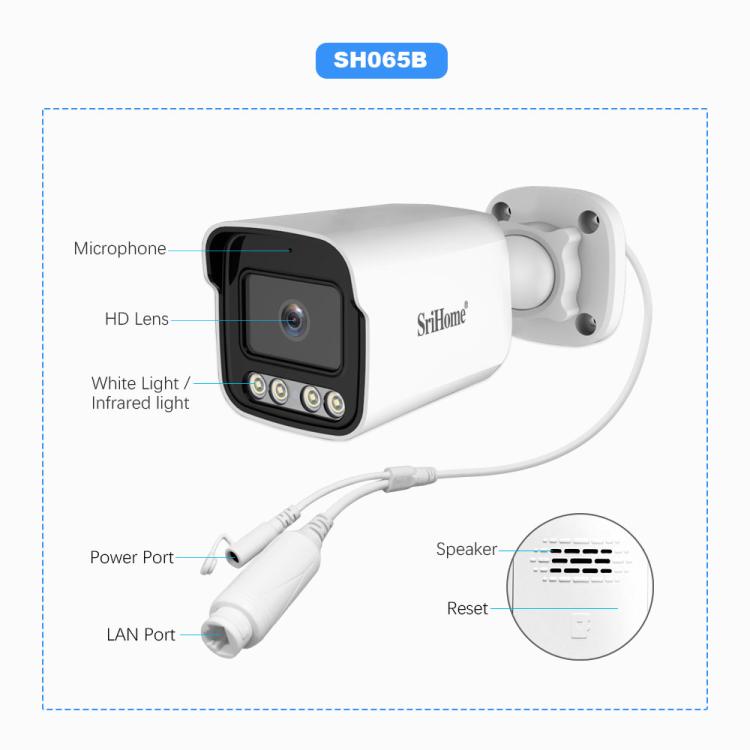

Audio: Built-in speaker, can speak to the IPC through the NVR host or mobile APP. Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP
Night Vision Modes:
Alarm Mode - The default is black and white night vision. When an alarm is detected, the white light is turned on.
White Light Mode - Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)
Infrared Mode - White light is turned off and switched to normal night vision (black and white night vision)
Network port: RJ45

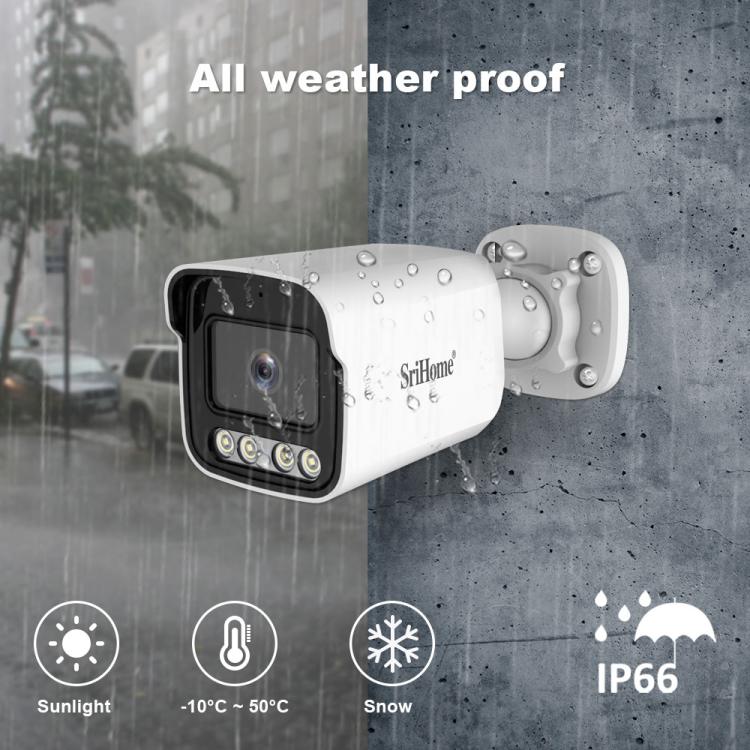

Waterproof: IP66
Dimensions: 80x80x150mm
Net weight: 230g
Specification:
|
Package Weight
|
| One Package Weight |
4.55kgs / 10.04lb
|
| One Package Size |
40cm * 26cm * 29cm / 15.75inch * 10.24inch * 11.42inch
|
| Carton Weight |
20.00kgs / 44.09lb
|
| Carton Size |
58cm * 52cm * 40cm / 22.83inch * 20.47inch * 15.75inch
|
| Loading Container |
20GP: 221 cartons * 4 pcs = 884 pcs
40HQ: 513 cartons * 4 pcs = 2052 pcs
|
|
