1. Power Supply: 220VAC +/-10%, 50/60Hz
2. Temperature Measurement Range: -40 to 99 degrees Celsius
3. Temperature Control Range: -40 to 70 degrees Celsius
4. Resolution: 1
5. Accuracy: +/-1 degree Celsius

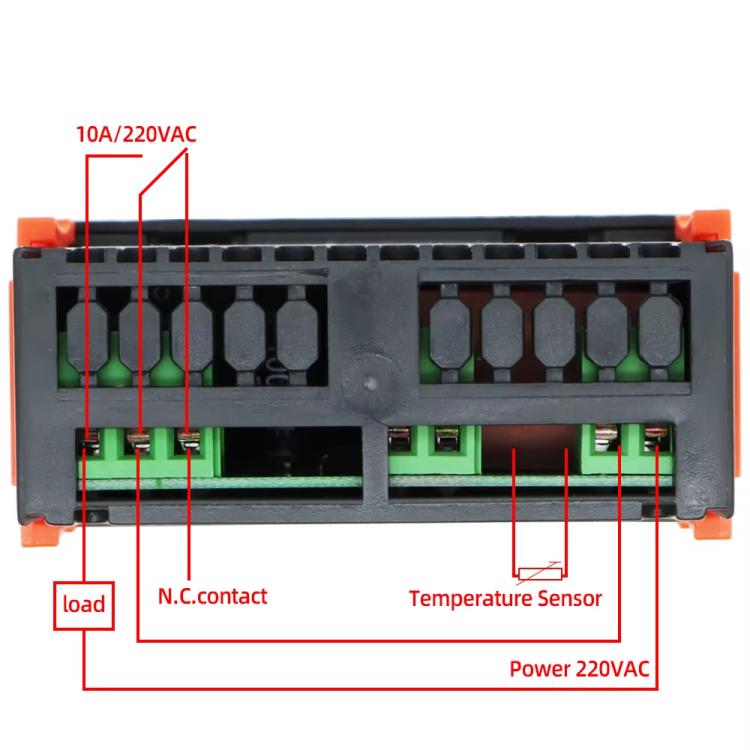

6. Relay Contact Capacity: 7A/250VAC
7. Sensor Type and Cable Length: NTC, 2 meters
8. Alarm Type: Buzzer (When "Alarm" mode is selected, it is a relay switch output)
9. Power Consumption: 5W

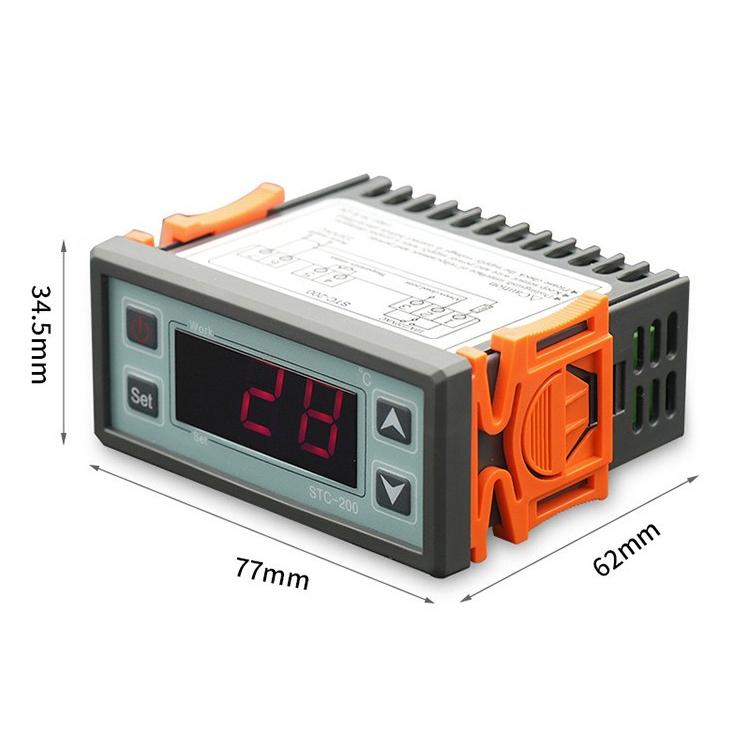

10. Overall Dimensions: 77.0 mm (Width) × 34.5 mm (Height) × 65.5 mm (Depth)
11. Installation Dimensions: 70.5 mm (Width) × 28.5 mm (Height)
12. Operating Ambient Temperature: -5 to 60 degrees Celsius
13. Operating Ambient Humidity: 20%RH~90%RH (non-condensing)
Specification:
|
Package Weight
|
| One Package Weight |
0.28kgs / 0.63lb
|
| One Package Size |
12cm * 8cm * 8cm / 4.72inch * 3.15inch * 3.15inch
|
| Carton Weight |
17.90kgs / 39.46lb
|
| Carton Size |
38cm * 42cm * 34cm / 14.96inch * 16.54inch * 13.39inch
|
| Loading Container |
20GP: 491 cartons * 60 pcs = 29460 pcs
40HQ: 1140 cartons * 60 pcs = 68400 pcs
|
|
