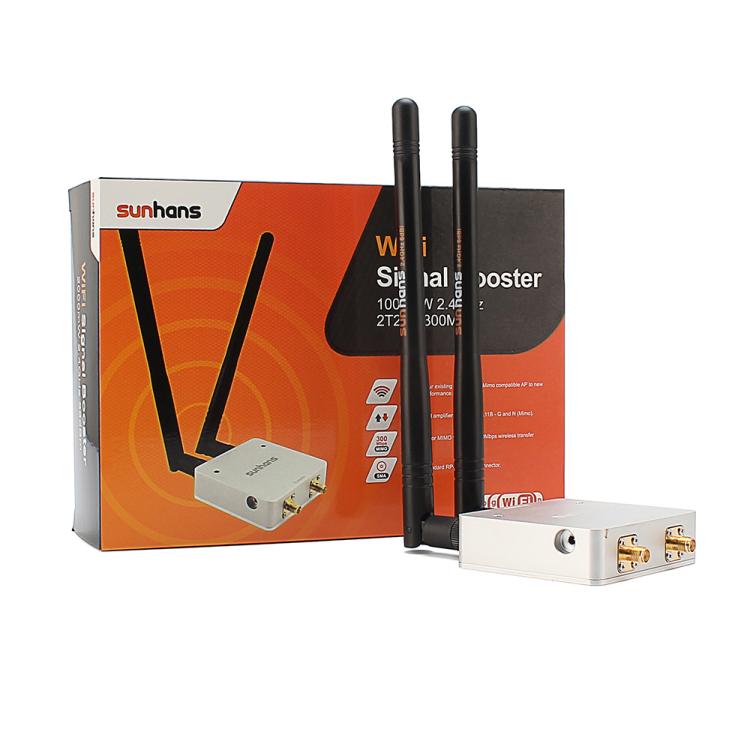

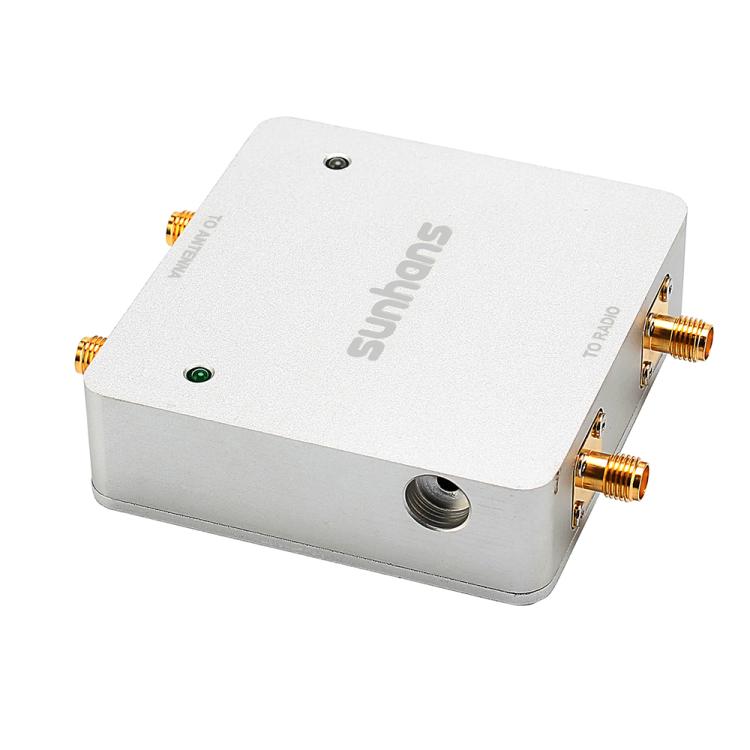

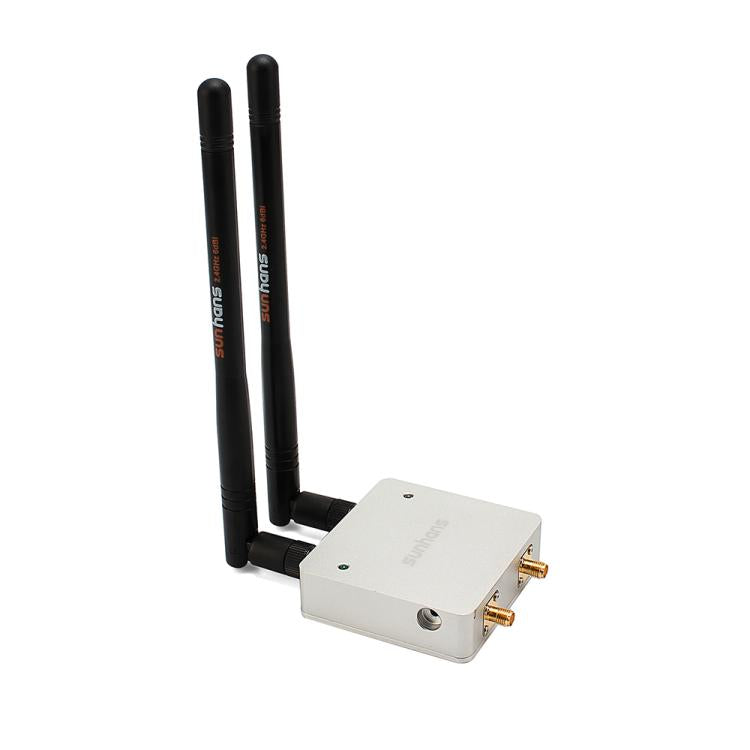

1. Booster model: SH24Gi1000-D2
2. Operating frequency range: 2400-2500MHz
3. Channel bandwidth: 20MHz and 40MHz
4. Supported standards: IEEE 802.11b/g/n (802.11n Draft 2.0), 2Tx2R
5. Operating modes: bidirectional, half-duplex, time-division duplex, MIMO

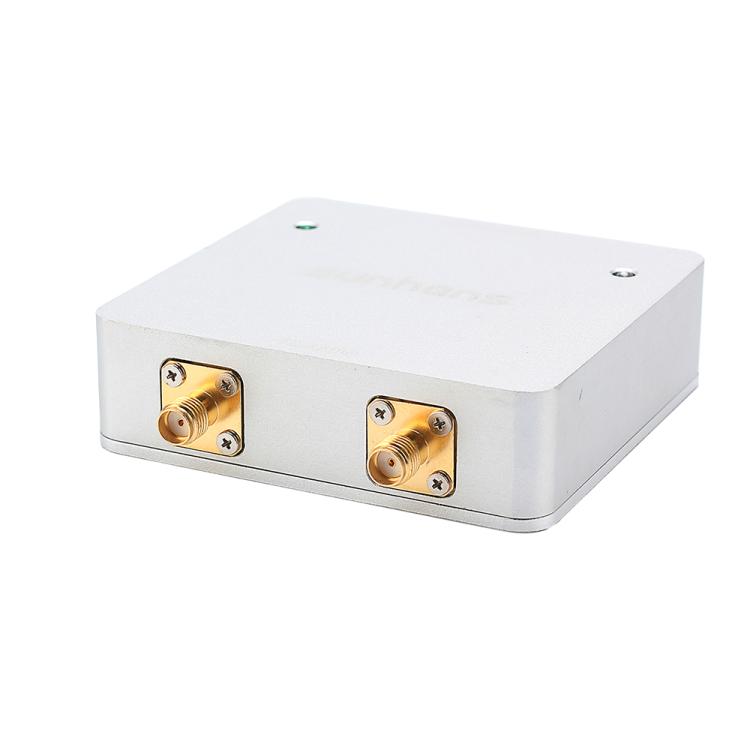

6. Connector type: SMA female connector connected to RF module
7. Connect antenna: RP-SMA female connector
8. Output power: 1000mW (30dBm)
9. Input power: 0-20dBm
10. Transmit gain: 12– 14dB
11. Receive gain: 9-11dB

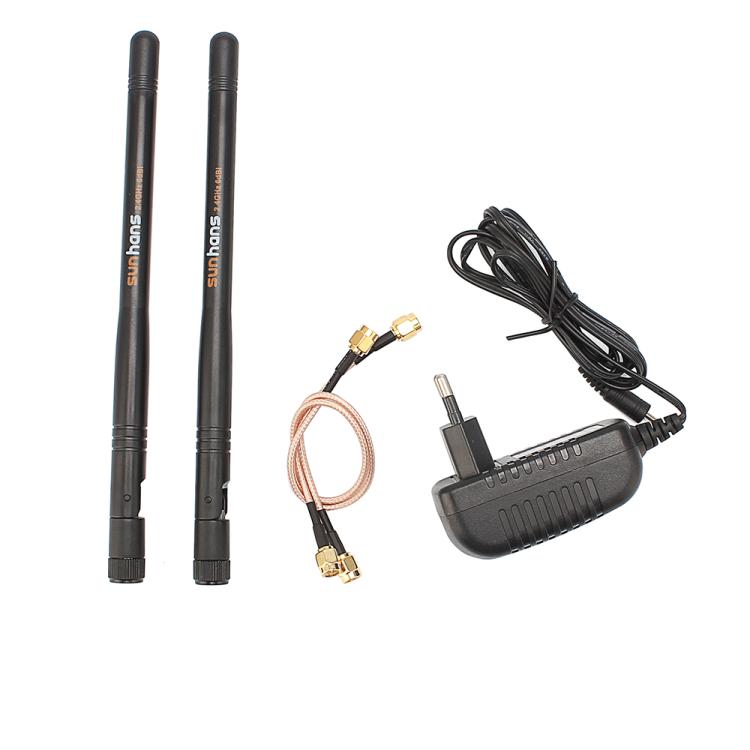

12. Power adapter: 12V/2A DC, 100-240V
13. Working temperature: -20 degrees Celsius to 70 degrees Celsius
14. Working humidity: Relative humidity up to 90%
15. Material: cast aluminum
16. Aluminum alloy CNC processed shell, anti-interference
17. Small size, safe and power-saving, easy to install
18. Suitable for home, office, drone, IP camera, remote control equipment, etc.
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| One Package Size |
22cm * 15cm * 6cm / 8.66inch * 5.91inch * 2.36inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
50cm * 46cm * 32cm / 19.69inch * 18.11inch * 12.6inch
|
| Loading Container |
20GP: 362 cartons * 32 pcs = 11584 pcs
40HQ: 841 cartons * 32 pcs = 26912 pcs
|
|
