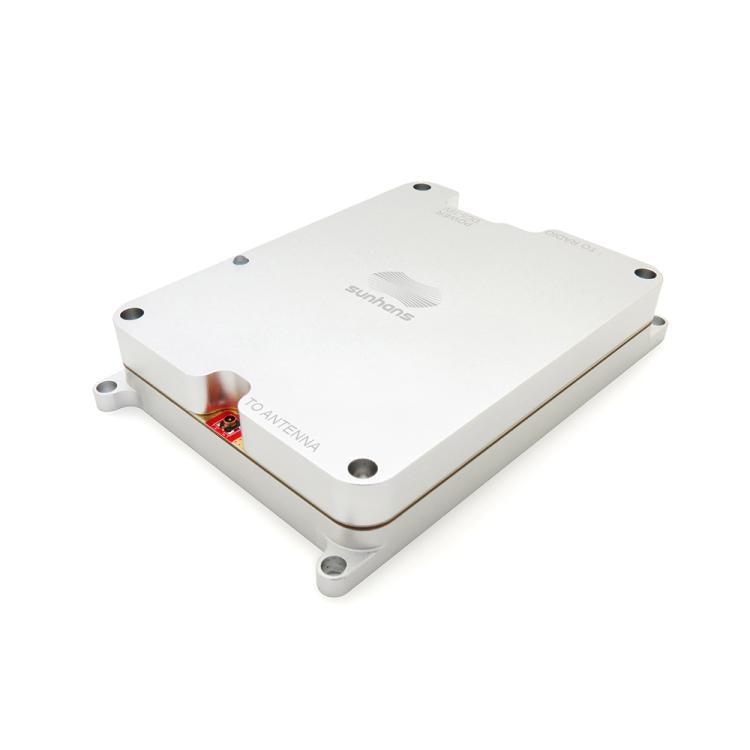

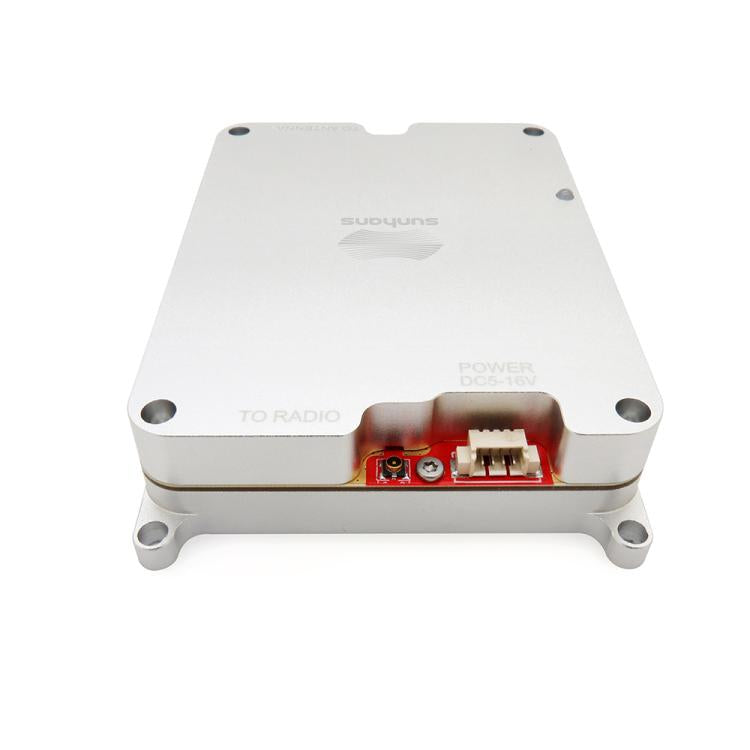

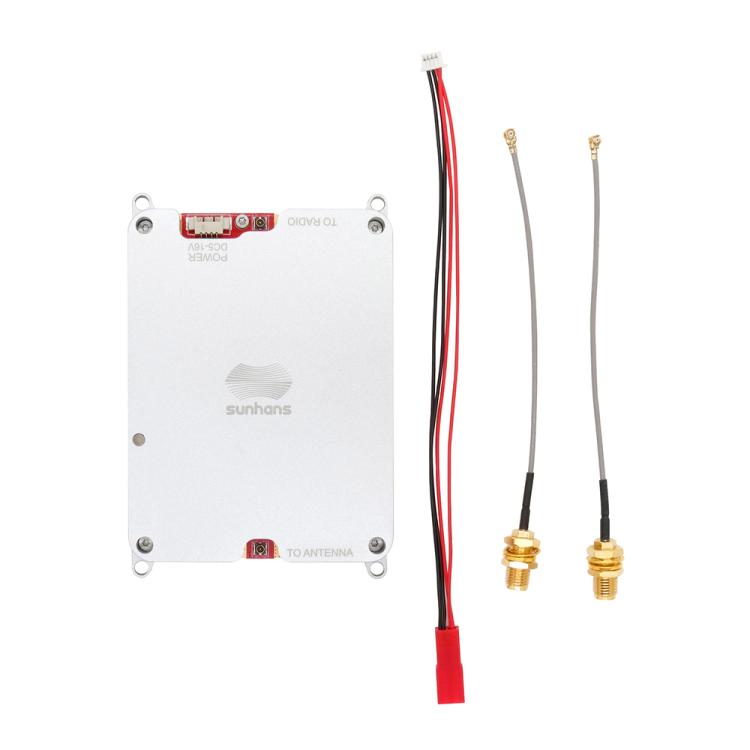

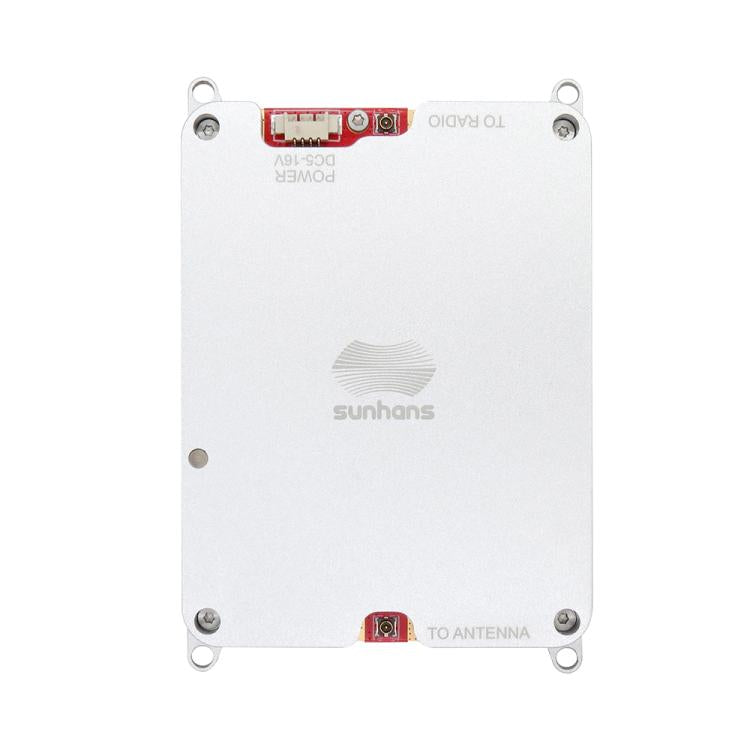

1. Material: cast aluminum

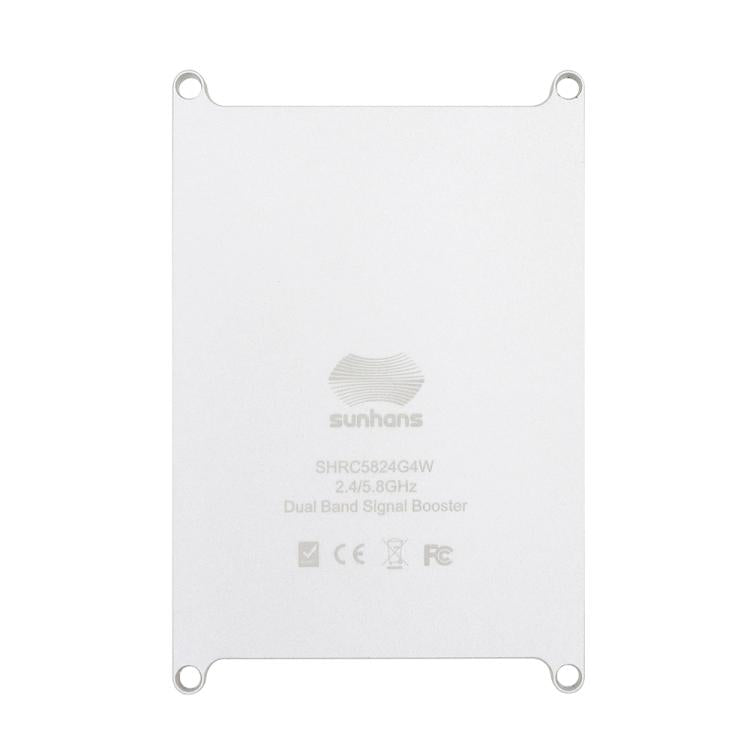

2. Booster model: SHRC5824G4W
3. Operating frequency: 2.4-2.5GHz, 5.0-5.8GHz
4. Channel bandwidth: 20MHz, 40MHz, 80MHz
5. Supported standards: IEEE 802.11b/g/n/a
6. Working mode: bidirectional, half-duplex, time division duplex
7. Output power: 4000mW (36dBm)
8. Input power: 0-20 dBm
9. Transmit gain: 16-19dB
10. Receive gain: 10dB
11. Noise figure: about 3.5dB (typical value)
12. Frequency response: -+1dB
14. Power adapter: 12V/2A DC, 100~240V
15. Working temperature: -20 degrees Celsius to 70 degrees Celsius
16. Working humidity: up to 75% relative humidity
17. 2.4G and 5.8G dual-band, automatic frequency switching
18. Maximum 4000mW actual output power, support different power supplies
19. Aluminum alloy shell, CNC finishing, anti-interference
20. Designed for drones, unmanned aircraft and remote control equipment
Specification:
|
Package Weight
|
| One Package Weight |
0.15kgs / 0.34lb
|
| One Package Size |
10cm * 7cm * 2cm / 3.94inch * 2.76inch * 0.79inch
|
| Carton Weight |
23.50kgs / 51.81lb
|
| Carton Size |
37cm * 32cm * 22cm / 14.57inch * 12.6inch * 8.66inch
|
| Loading Container |
20GP: 1023 cartons * 150 pcs = 153450 pcs
40HQ: 2376 cartons * 150 pcs = 356400 pcs
|
|
