1. Material: aluminum alloy
2. Tuning mode: semitone
3. Pitch range: 430-450Hz
4. Flat: b, bb, bbb, bbbb
5. Adjustment tolerance: +-0.5 cents
6. Power supply: AC Adapter 9V DC (Not Included)
7. Full metal shell, sturdy and durable
8. Tuning pedal, suitable for stage and studio
9. A4 is pitch button, flat is flat button

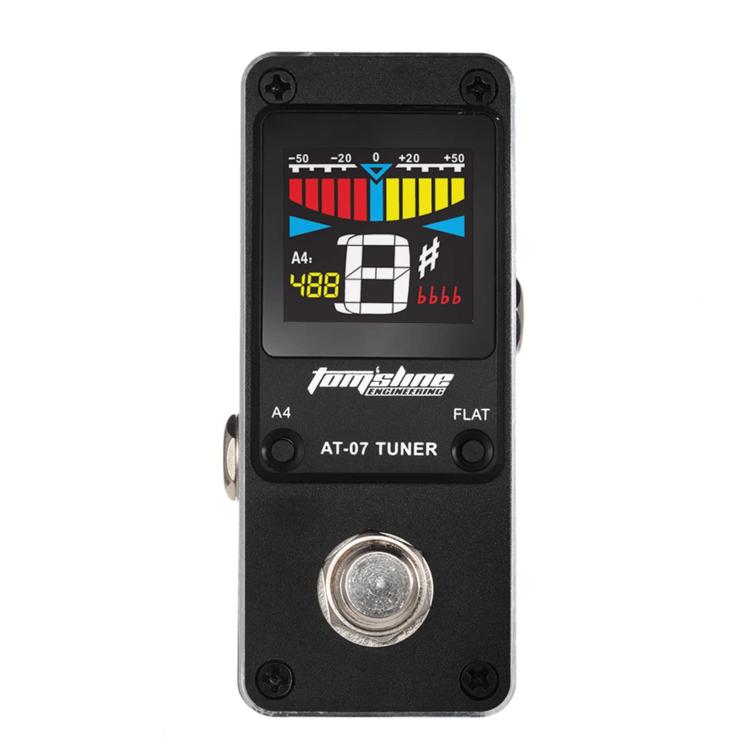

10. Screen displays note name, tuning table and calibration, pitch and flat
11. Output jack: 1/4" mono audio jack for signal output
12. Input jack: 1/4" mono audio jack for connecting guitar
13. Size: 9x3.8x4.8cm
14. Weight: 131g
How to Use:

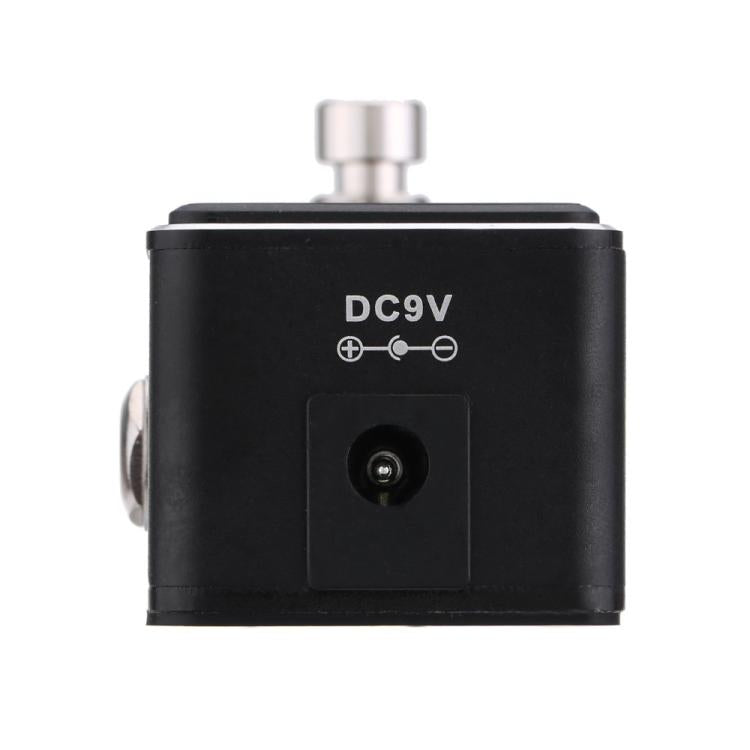

1. Connect DC 9V Power on the pedal
2. Connect the input and press the ON/OFF button to turn on the tuner
3. If you want to change the pitch, press the A4 button, the pitch range is from 430Hz to 450Hz
4. If you want to tune by flat, press the Flats button, Flats provides 4 steps: b, bb, bbb, bbbb
5. Play a note with the guitar, the note name will appear on the tuner screen. The screen color will change and the tuning needle will move
- The central blue tuning meter appears, and 2 blue triangles appear: the note is in tune
- The left red tuning meter appears, and the left blue triangle appears: flat notes
- The right yellow tuning meter appears, and the right blue triangle appears: sharp notes.
6. The tuner has a bypass function. After tuning is completed, press the ON/OFF key, and the original guitar signal will pass through without distortion.
Specification:
|
Package Weight
|
| One Package Weight |
0.23kgs / 0.50lb
|
| One Package Size |
13cm * 8cm * 8cm / 5.12inch * 3.15inch * 3.15inch
|
| Carton Weight |
6.50kgs / 14.33lb
|
| Carton Size |
41cm * 28cm * 34cm / 16.14inch * 11.02inch * 13.39inch
|
| Loading Container |
20GP: 683 cartons * 24 pcs = 16392 pcs
40HQ: 1586 cartons * 24 pcs = 38064 pcs
|
|
