1. WiFi Frequency Band: 2.4GHz
2. Single/Dual Band: Single-band
3. Wireless Transmission Rate: 300Mbps
4. Functions: WiFi Router/Bridge/Repeater/AP
5. Wireless Transmit Power: 2.4GHz: 14.5/16dBm
6. Ethernet Port Type: 2 x 100Mbps ports
7. Antennas: H: 2 external; L: 2 internal
8. Antenna Connector Type: IPEX Gen 1
9. Antenna Interface Type: SMA (Female/Jack)
10. IP and MAC Layer Transparent Transmission: Supported
11. Max Stored Hotspots: 100
12. Max Scanned Hotspots: 128
13. Auto-reconnect Function: Supported
14. Firewall: Supported
15. Smart Fan Start/Stop: No
16. Serial Port: 1 x UART (TTL level)
17. Power Supply Voltage (Recommended Power): DC 5V-24V (5W)
19. Dimensions: Approx. 5.1 x 3.0 x 1.3cm
Features:

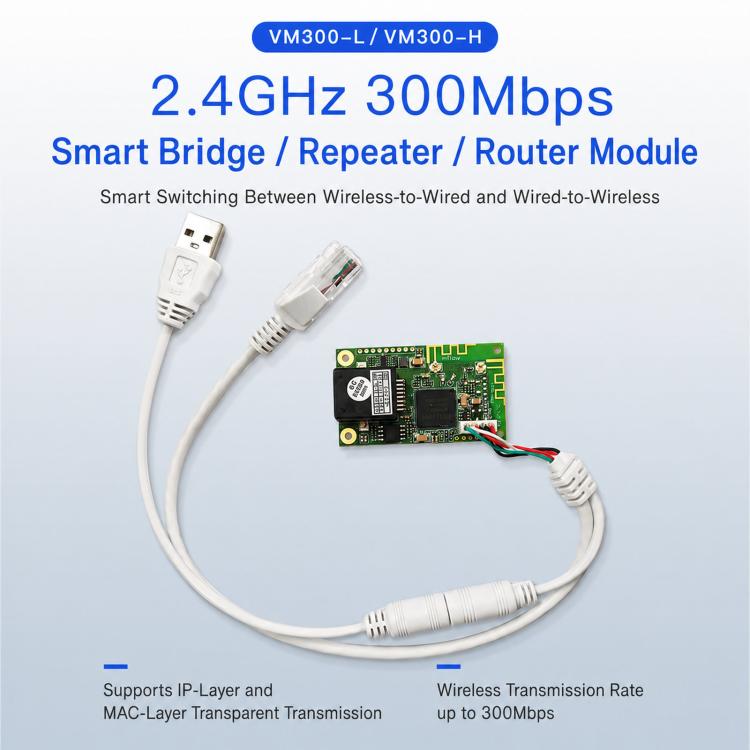

1. Compact design tailored for embedded device installation; space-saving and easy to integrate

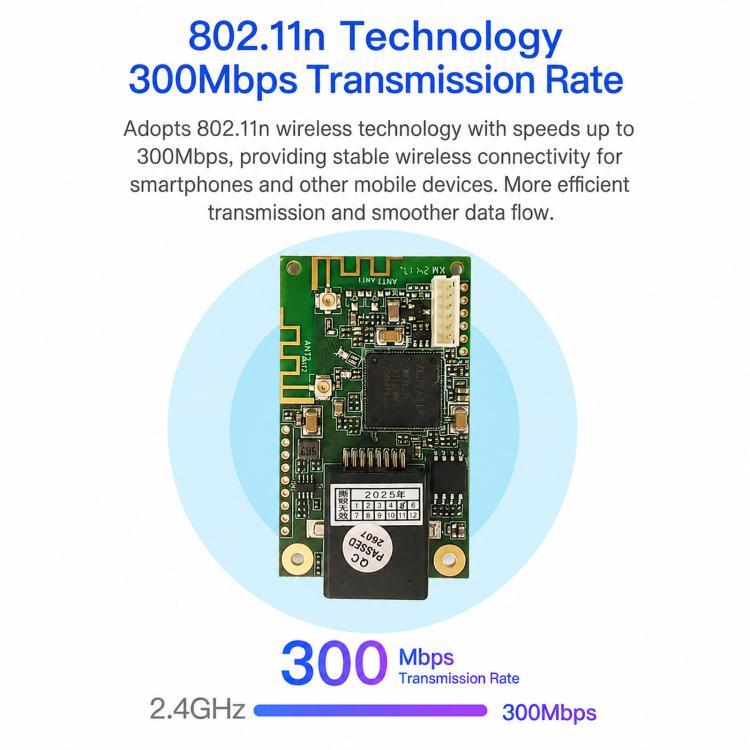

2. Utilizes 802.11n wireless technology; transmission rates up to 300Mbps in the 2.4GHz band

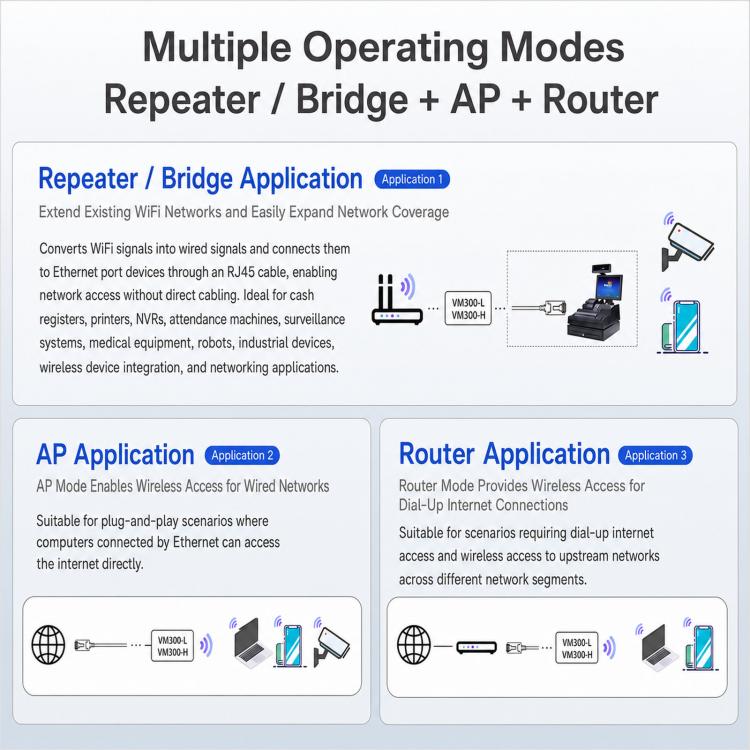

3. Supports multiple operating modes: Repeater/Bridge, AP, and Router

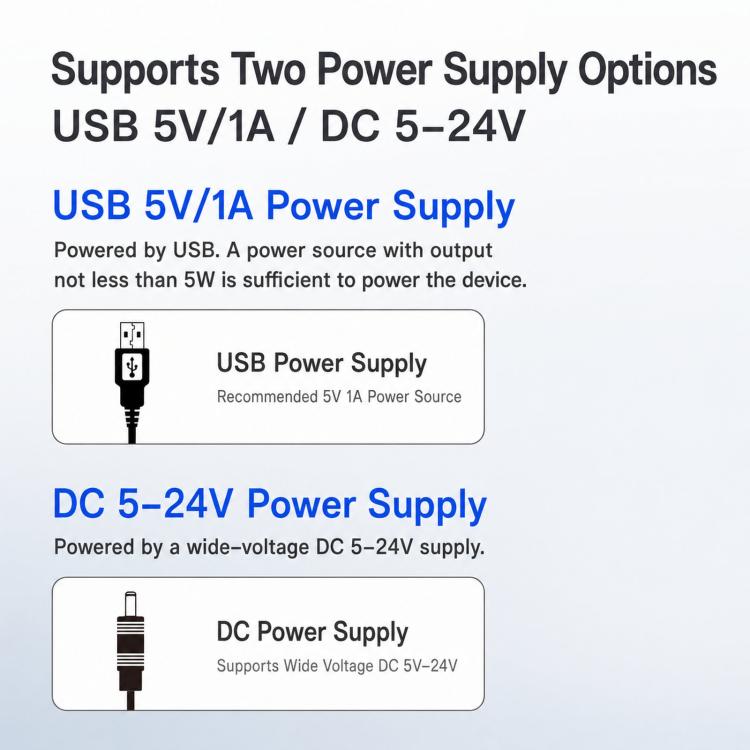

4. Supports USB 5V/1A and wide-range DC 5-24V power input, flexibly adapting to the power requirements of various industrial and consumer devices

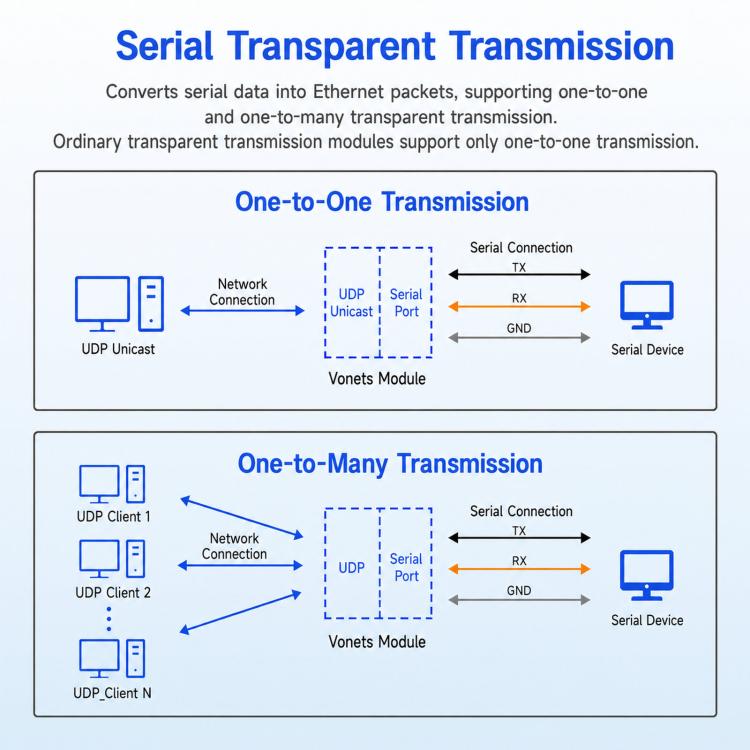

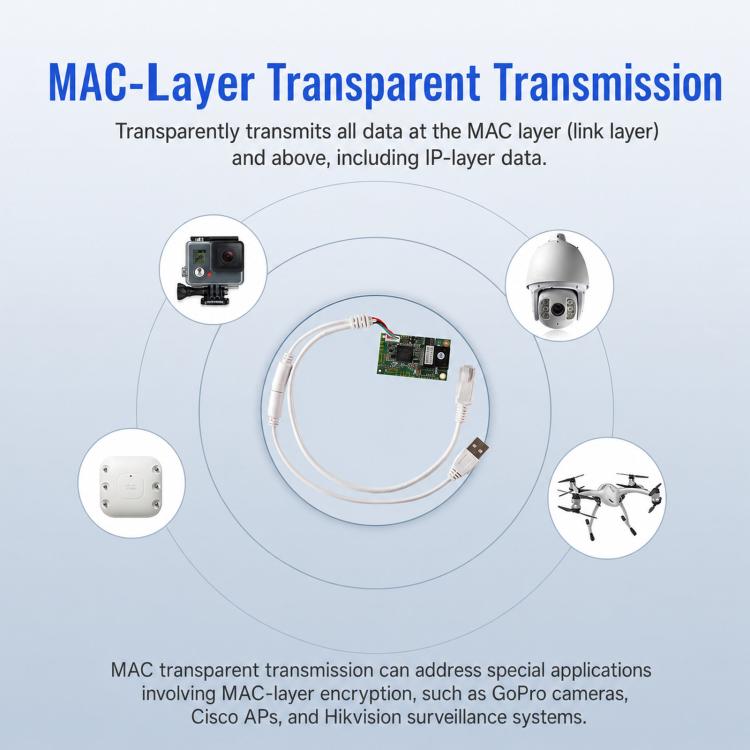

5. Supports serial-to-Ethernet data conversion (one-to-one/one-to-many transparent transmission) and MAC-layer transparent transmission, enhancing data compatibility

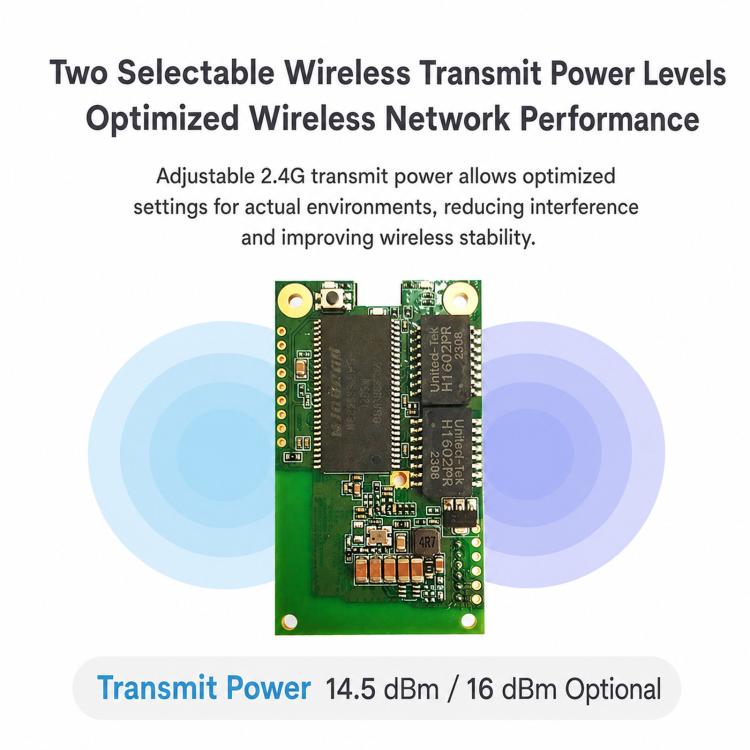

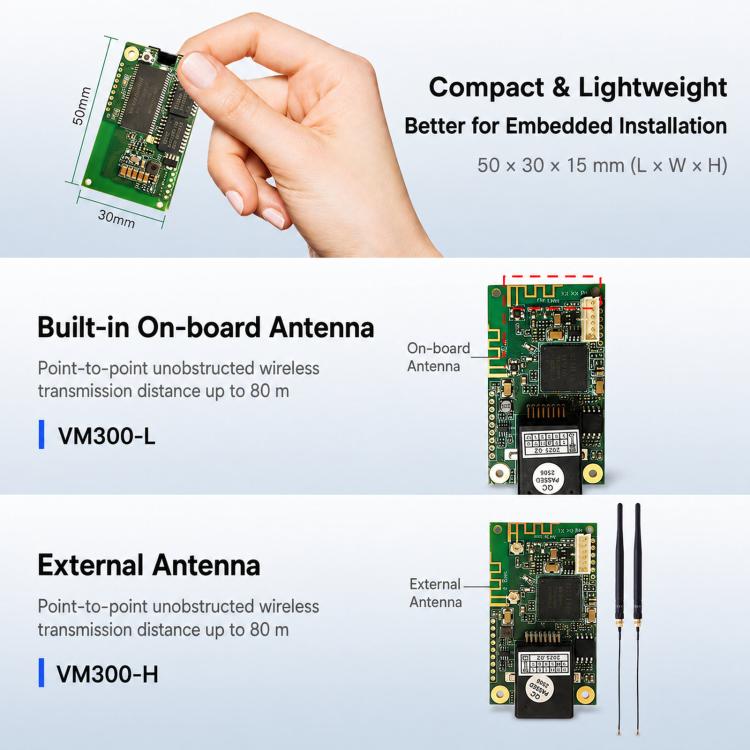

6. Available in versions with either an on-board antenna (VM300-L) or an external antenna (VM300-H), featuring adjustable transmit power (14.5 dBm/16 dBm) to suit various application scenarios.
Specification:
|
Package Weight
|
| One Package Weight |
0.09kgs / 0.21lb
|
| One Package Size |
15cm * 10cm * 3cm / 5.91inch * 3.94inch * 1.18inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
42cm * 32cm * 30cm / 16.54inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 661 cartons * 100 pcs = 66100 pcs
40HQ: 1535 cartons * 100 pcs = 153500 pcs
|
|
