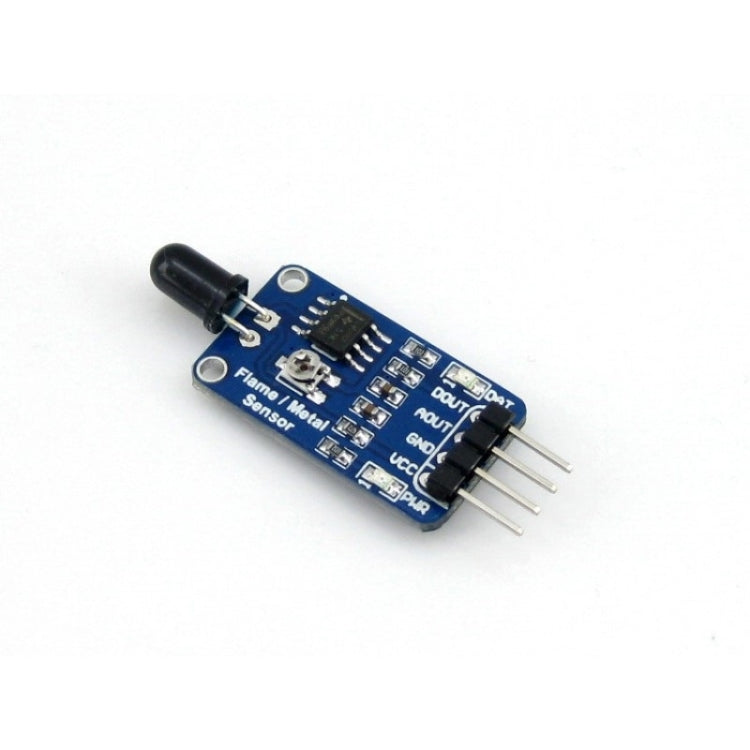

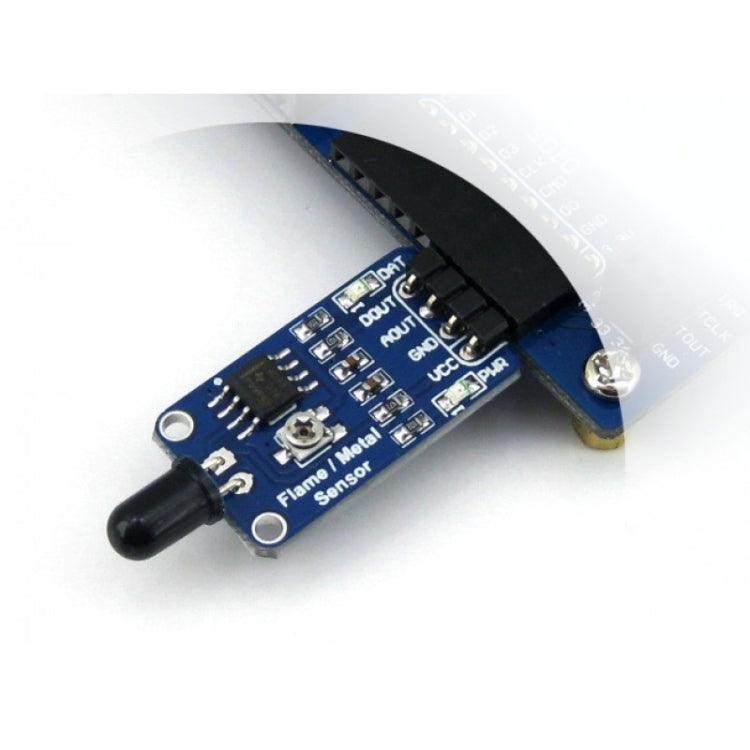

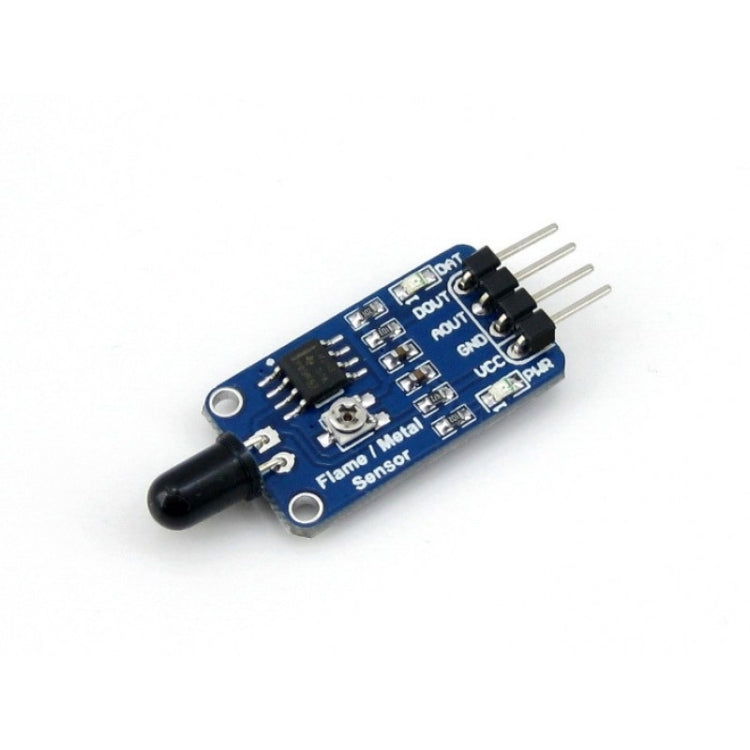

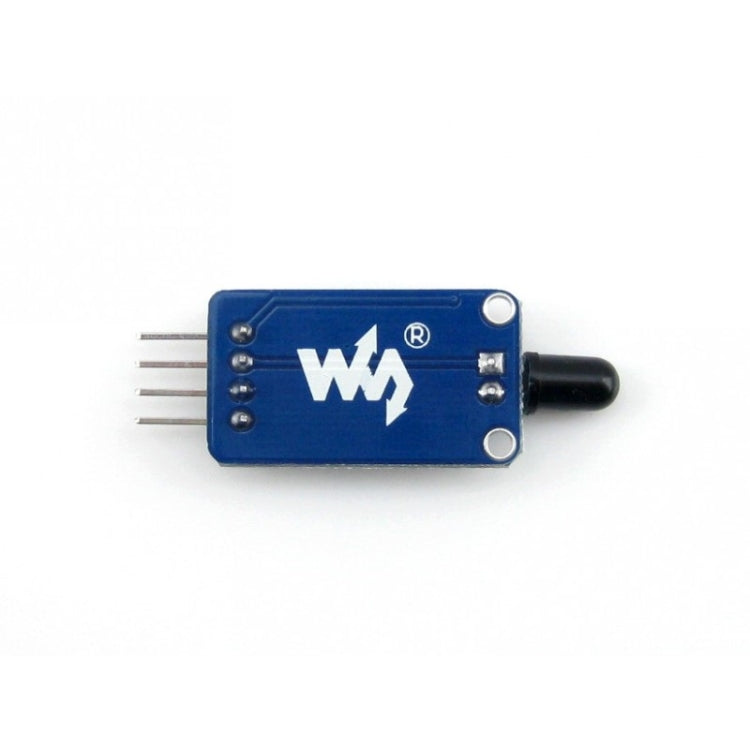

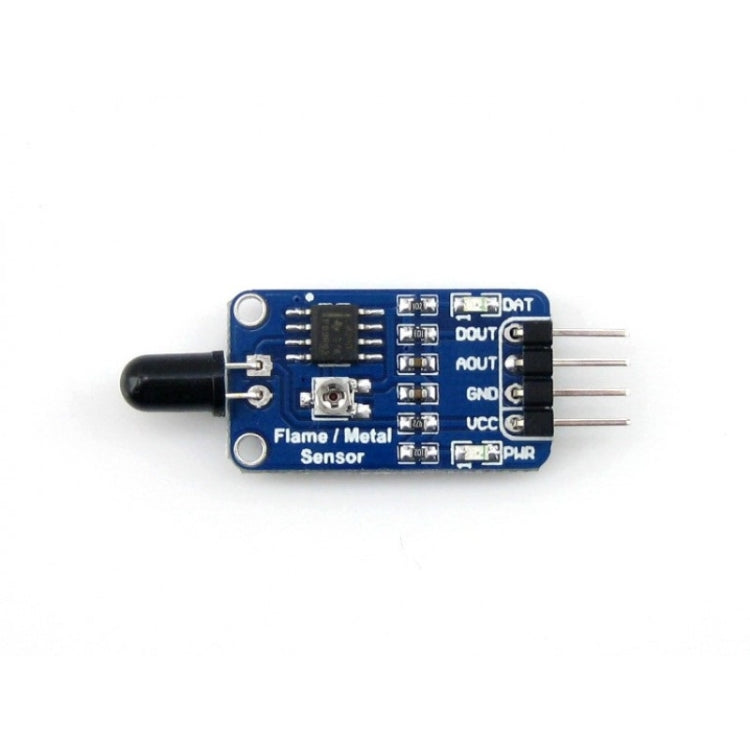

Overview
1. Sensitive to flame spectrum
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Spectrum range: 760nm ~ 1100nm
2. Detection angle: 0 - 60 degree
3. Power: 3.3V ~ 5.3V
4. Operating temperature: -25 ~ 85 degree C
5. Dimension: 27.3mm * 15.4mm
6. Mounting holes size: 2.0mm
Applications
1. Fire detection
2. Fire fighting robot
3. Fire alarm
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.02lb
|
| One Package Size |
5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch
|
| Loading Container |
20GP: 284 cartons * 6240 pcs = 1772160 pcs
40HQ: 661 cartons * 6240 pcs = 4124640 pcs
|
|
