1. Material: heating tube stainless steel 316; sleeve tool A3 steel; anode rod magnesium alloy
2. Voltage: 120V
3. Power: 1440W
4. OE: 520900
5. Scope of application: RV camper
6. Specifications: wrench socket 27mm (1-1/16) at one end; 38mm (1-1/2) at the other end
7. Auxiliary function: the hole diameter of the middle position of the wrench socket is 8.5mm, and a screwdriver or a pin with a diameter of less than 8mm can be inserted as a lever to increase the strength of disassembly or assembly
8. Use of the wrench socket: the main function is to provide a special tool for easily and safely disassembling and installing specific components in RV water heaters
9. The resistance heating tube has a built-in resistance wire, which can achieve efficient heating through the resistance heat energy generated by the current, and quickly heat up the surrounding environment
10. The pipe shape is compact and easy to install in limited space, suitable for RV or other compact space applications
11. Total length: 150mm (6 inches)
12. Net weight: 27mm/38mm wrench socket 251g; 120V heating tube + sleeve 457g; 3 pieces/pack heating tube + anode rod 594g; 4 pieces/pack heating tube + anode rod + sleeve 800g
13. Size: sleeve 15x4.2x4.2cm; electric heating tube 21x3.75x3.75cm; anode rod 23.5x2.1x2.1cm

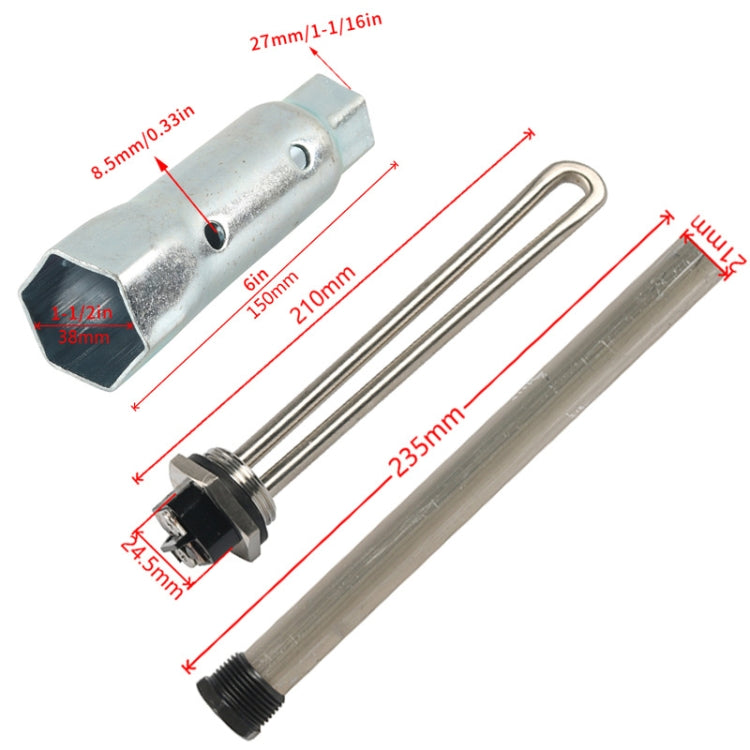

Product composition:
A9918-01: RV water heater element wrench socket x 1
A9919: electric heating tube x 1, sleeve tool x 1
A9920: electric heating tube x 1, anode rod x 2
A9921: electric heating tube x 1, sleeve tool x 1, anode rod x 2
Specification:
|
Package Weight
|
| One Package Weight |
0.26kgs / 0.57lb
|
| One Package Size |
17cm * 25cm * 7cm / 6.69inch * 9.84inch * 2.76inch
|
| Carton Weight |
3.20kgs / 7.05lb
|
| Carton Size |
36cm * 27cm * 30cm / 14.17inch * 10.63inch * 11.81inch
|
| Loading Container |
20GP: 914 cartons * 8 pcs = 7312 pcs
40HQ: 2122 cartons * 8 pcs = 16976 pcs
|
|
