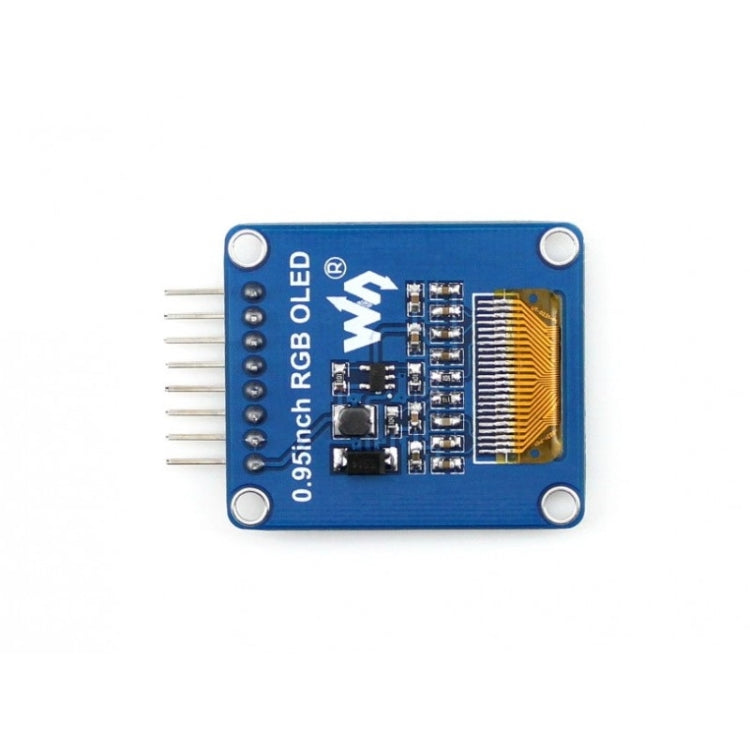

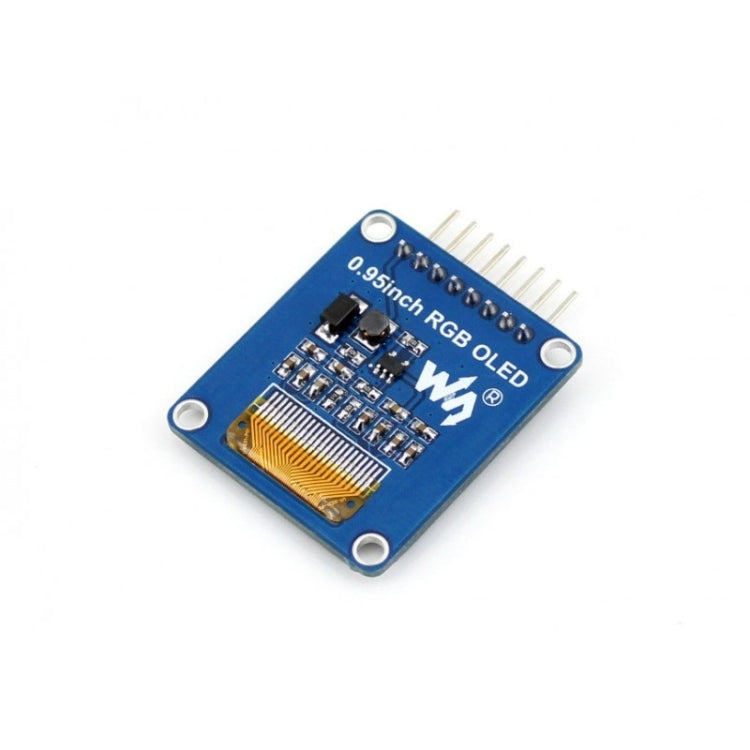

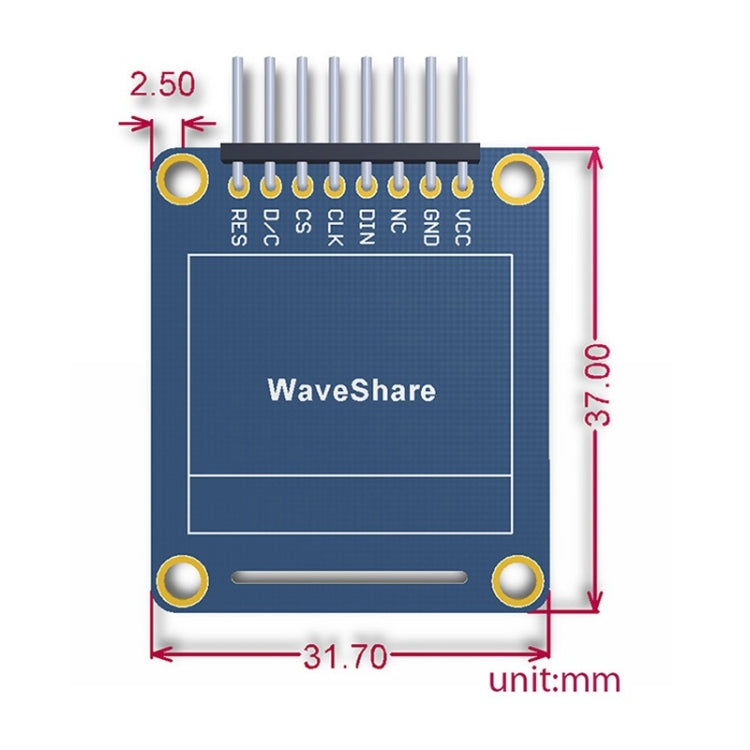

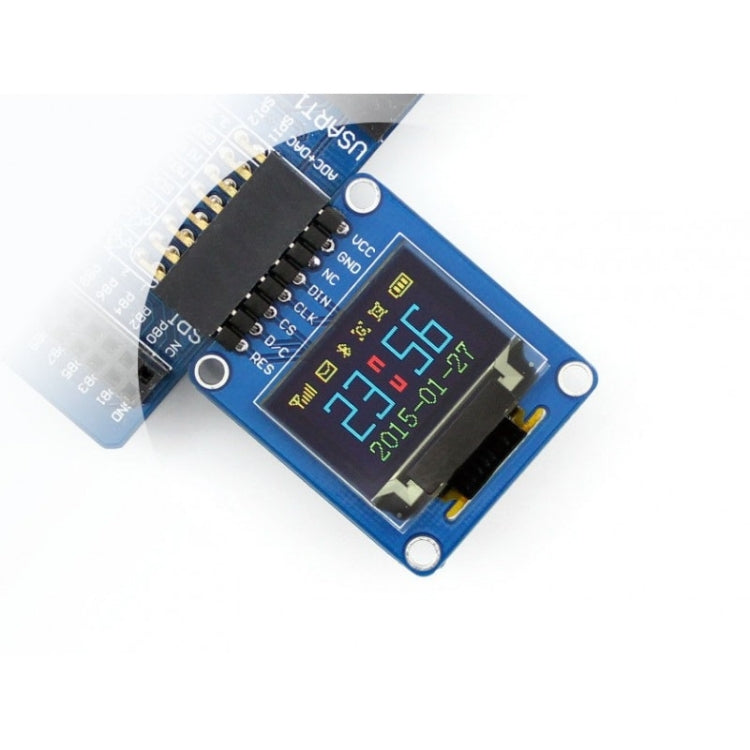

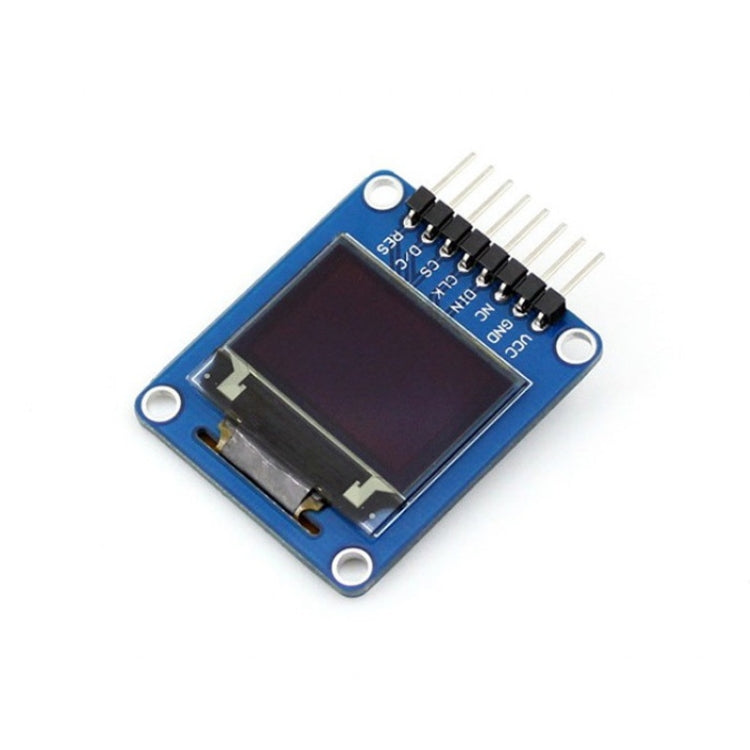

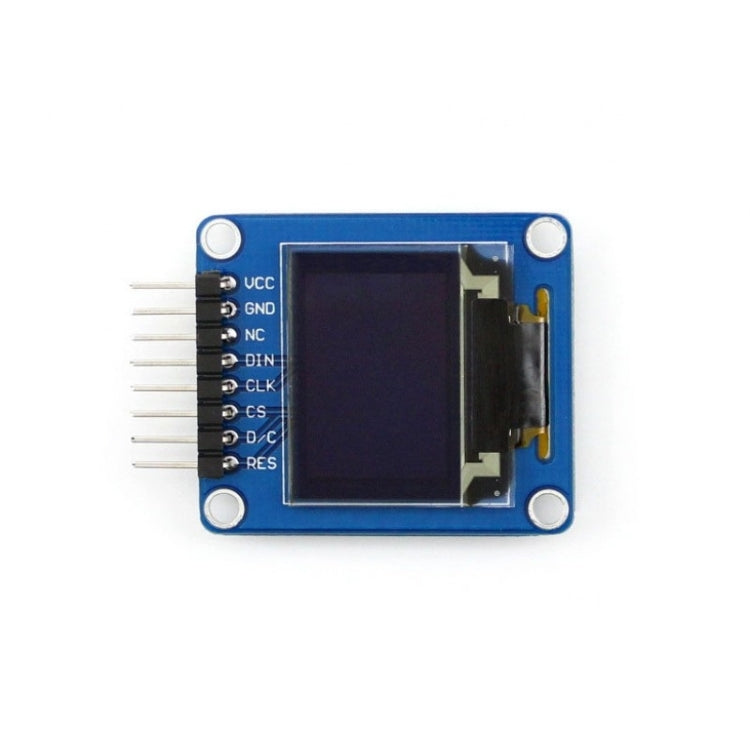

Name: Waveshare 0.95 inch RGB OLED (A), SPI Interface, Curved Horizontal Pinheader
Brand: MiOT Store
SKU: ZY15790501
Price: 9.0 GBP
Availability: InStock

ZY15790501.jpg@c80511c18365d0ee38b2eb016379de55

ZY15790501_1.jpg@e826aaf5aa5e74309d9186df24c17870

ZY15790501_2.jpg@bf951271996c5290969f3de988a2b6e8

ZY15790501_3.jpg@a5479b23ea954b248ef57d514334cc79

ZY15790501_4.jpg@82f96fdf2f2f48b1834b2c92a3ad360a

ZY15790501_5.jpg@b409e823ef157982b7274782fa165a37

Roll over image to zoom in Click on image to zoom

1. Driver chip: SSD1331
2. Interface: SPI
3. Resolution: 96×64
4. Display size: 0.95inch
5. Colors: 65K colorful
6. Visible angle: >160°
7. Operating temperature: -20~70 degree C
8. Storage temperature: -30~80 degree C
9. Operating voltage: 3.3V / 5V

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch

Qty per Carton

2000

Carton Weight

15.00kgs / 33.07lb

Carton Size

60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch

Loading Container

20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
