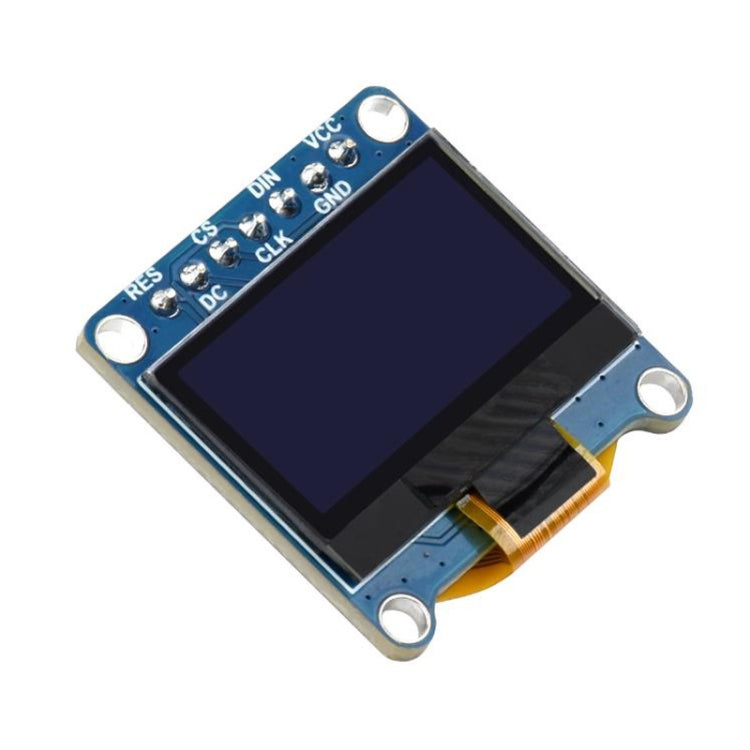

The Waveshare 0.96-Inch OLED Display Module is a compact display solution designed for embedded electronics projects, microcontroller applications and DIY development. Featuring a 128×64 pixel resolution and a two-colour yellow-blue OLED panel, it provides clear text and graphic display in a small form factor.
With support for both 4-wire SPI and I2C communication, this module offers flexible connectivity and compatibility with popular development platforms such as Raspberry Pi, Arduino and STM32. Its built-in level conversion circuit supports both 3.3V and 5V operating voltages, making integration into different electronic projects more convenient.
Key Features
-
Compact OLED Display: Features a 0.96-inch OLED panel with a 128×64 pixel resolution, delivering clear text, graphics and information in a compact format.
-
Yellow-Blue Two-Colour Display: Uses a yellow-blue display panel to distinguish different areas of displayed content and improve visual presentation.
-
Dual Communication Interfaces: Supports both 4-wire SPI and I2C communication, offering flexible connection options and compatibility with a wide range of microcontrollers.
-

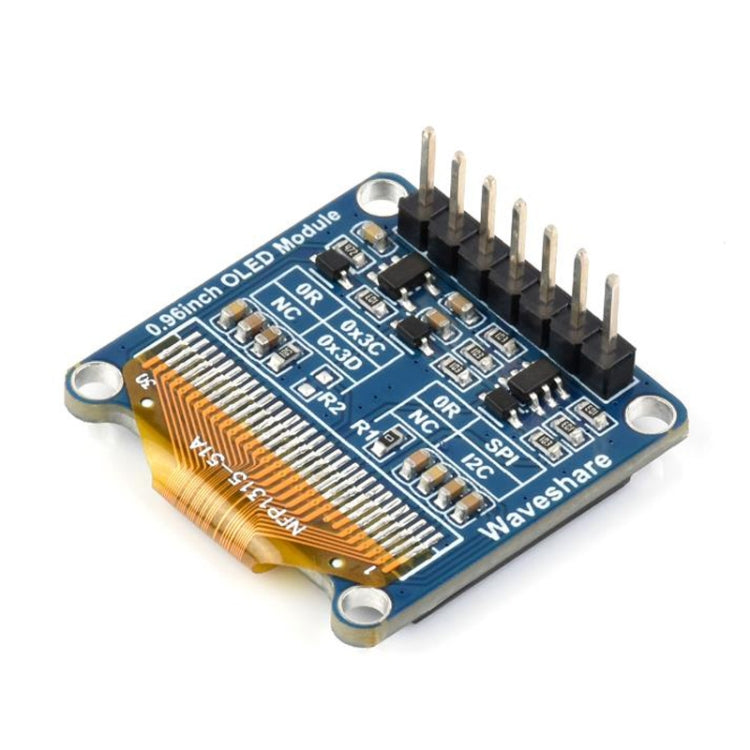

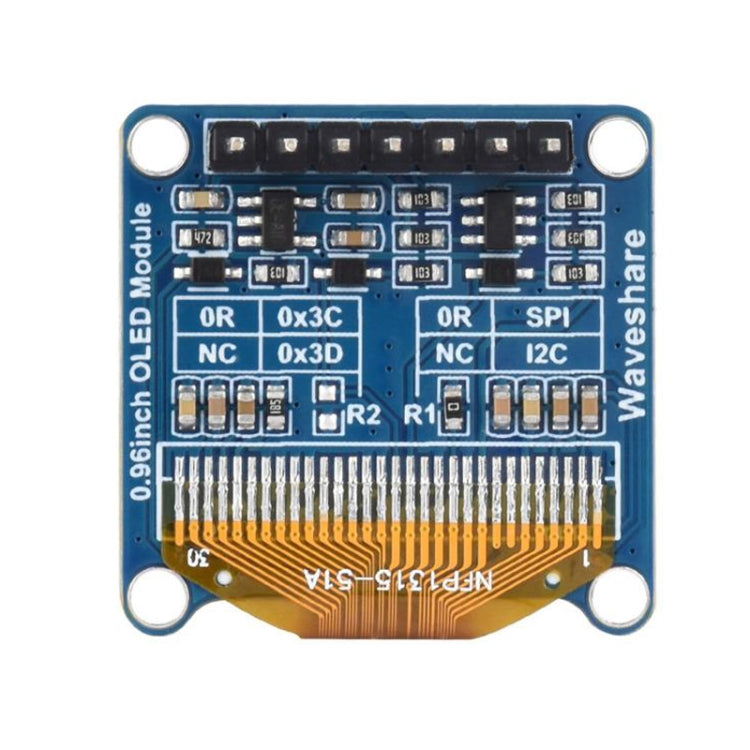

Built-In Level Conversion Circuit: Equipped with a level conversion circuit and supports 3.3V and 5V operating voltages for convenient integration into different development systems.
-
SSD1315 Driver Chip: Uses the SSD1315 display controller for managing screen output and communication with the connected development board.
-
Narrow Bezel and Compact Design: Its small dimensions make it suitable for space-constrained embedded applications, portable electronics and DIY projects.
-
Development Resources Included: Supporting documentation and sample programs are available for Raspberry Pi, Arduino and STM32 platforms to help simplify development and integration.
Technical Specifications
| Specification |
Details |
| Brand |
Waveshare |
| Display Type |
OLED |
| Display Size |
0.96 inches |
| Resolution |
128 × 64 pixels |
| Display Colour |
Yellow-Blue |
| Driver Chip |
SSD1315 |
| Communication Interface |
4-wire SPI / I2C |
| Working Voltage |
3.3V / 5V |
| Pixel Size |
0.15 × 0.15mm |
| Level Conversion |
Built-in |

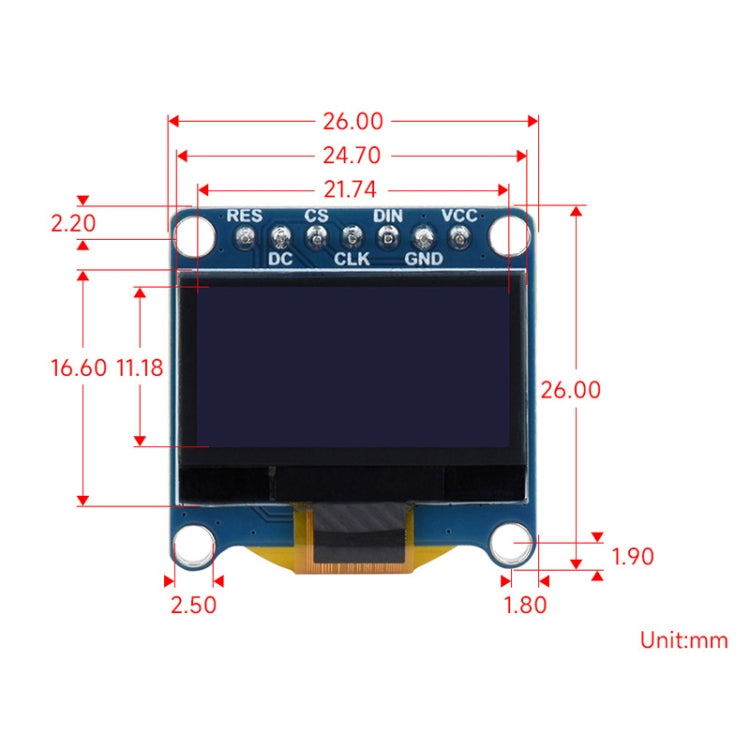

| Approximate Module Size |
2.6 × 2.6cm |

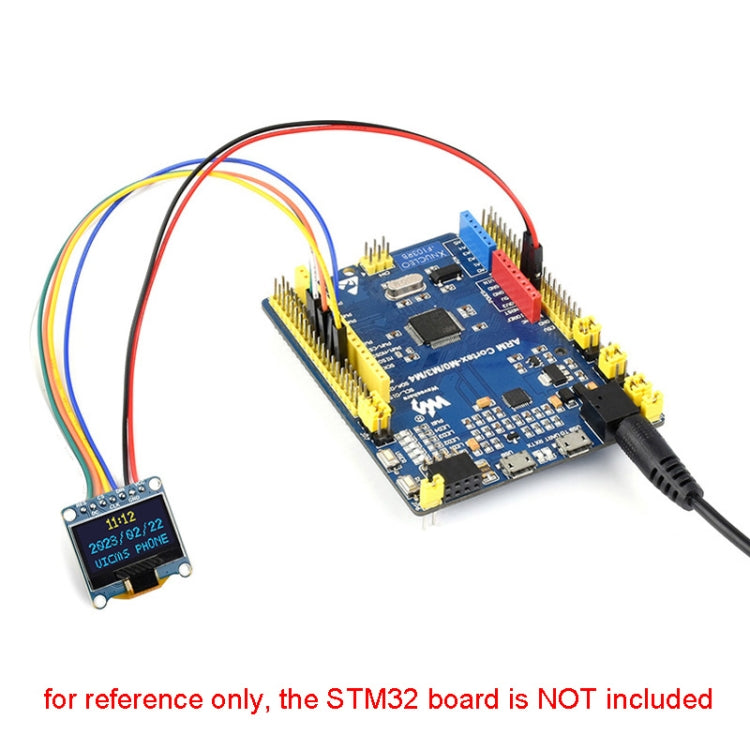

Compatible Development Platforms
Applications
-
Embedded display systems
-
DIY electronics projects
-
Smart home devices
-
Portable electronic equipment
-
Sensor monitoring displays
-
Microcontroller-based control panels
-
Robotics and development projects
Package Contents

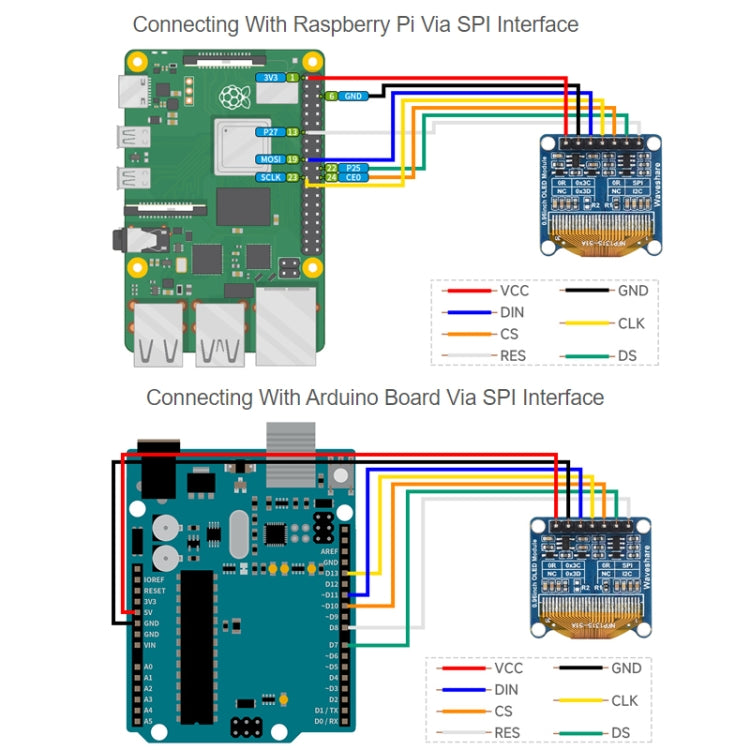

Note: Please check your development board's pin configuration and select the appropriate SPI or I2C communication interface before connection. Supporting documentation and sample programs are provided for development assistance.
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.05lb |
| One Package Size |
8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch |
| Carton Weight |
12.00kgs / 26.46lb |
| Carton Size |
30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch |
| Loading Container |
20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
|
|
