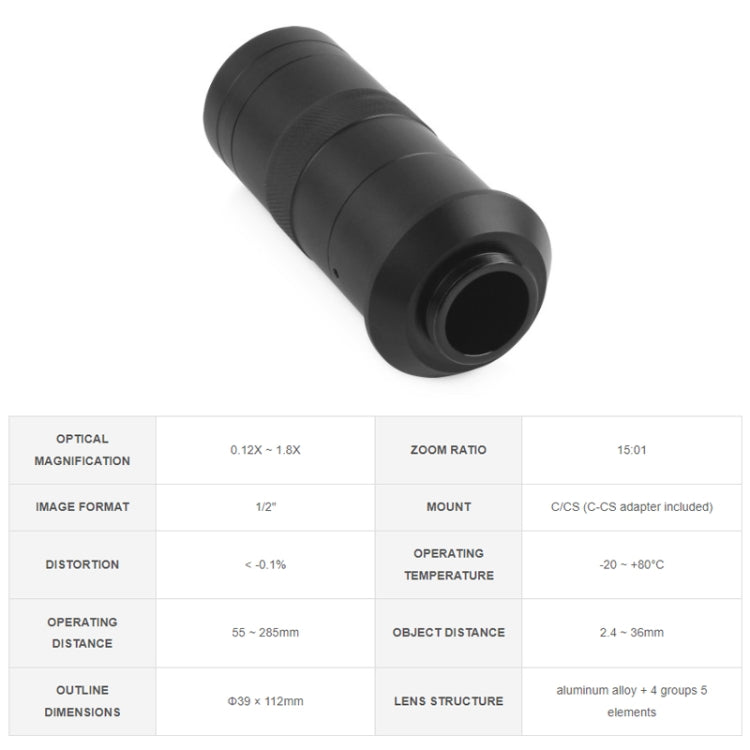

1. Optical magnification: 0.12X ~ 1.8X
2. Zoom ratio: 15:01

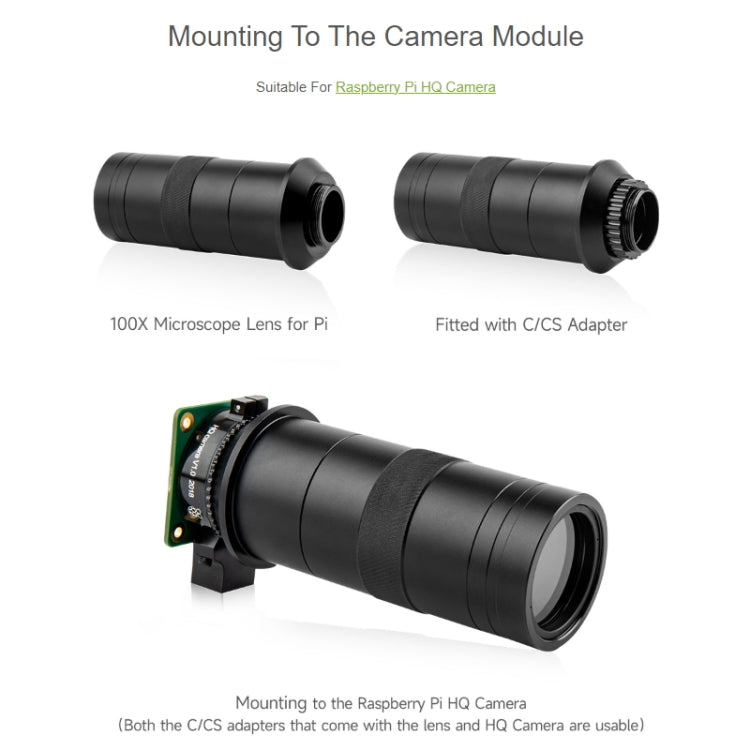

3. Image format: 1/2" MOUNT C/CS (C-CS adapter included)
4. Operating distance: 55 ~ 285 mm
5. Object distance: 2.4 ~ 36 mm

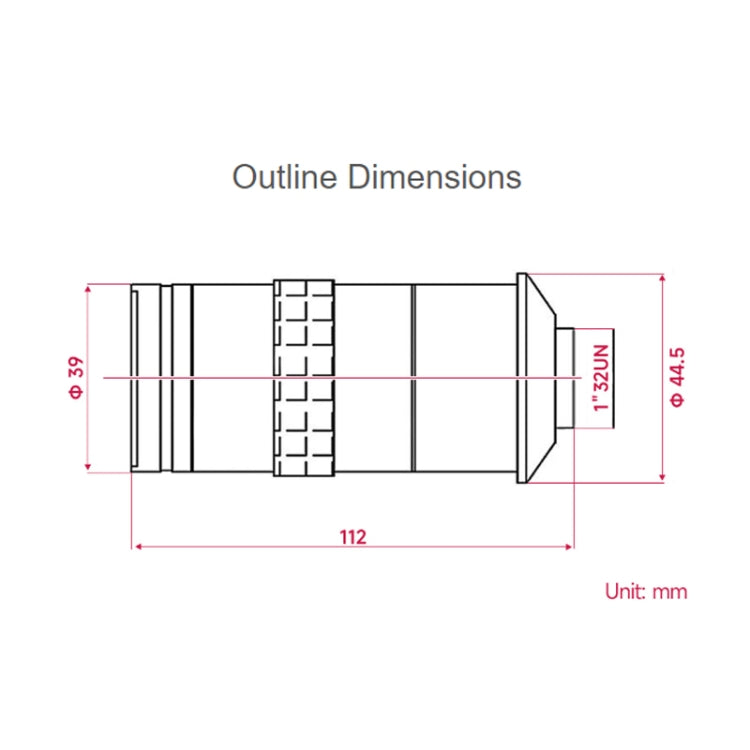

6. Dimensions: 39×112mm
7. Lens structure: aluminum alloy + 5 elements in 4 groups

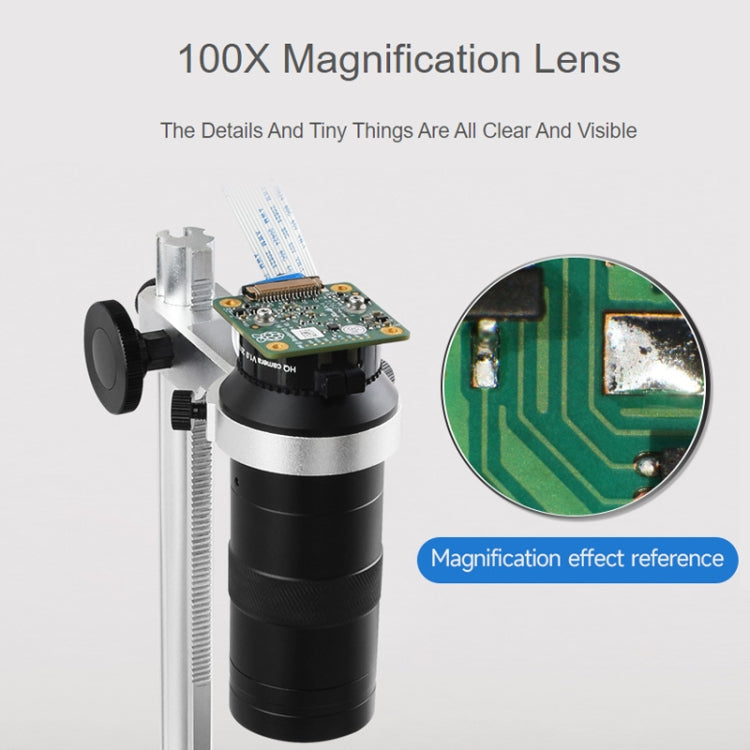

8. 100X magnification lens, details and tiny things are clearly visible

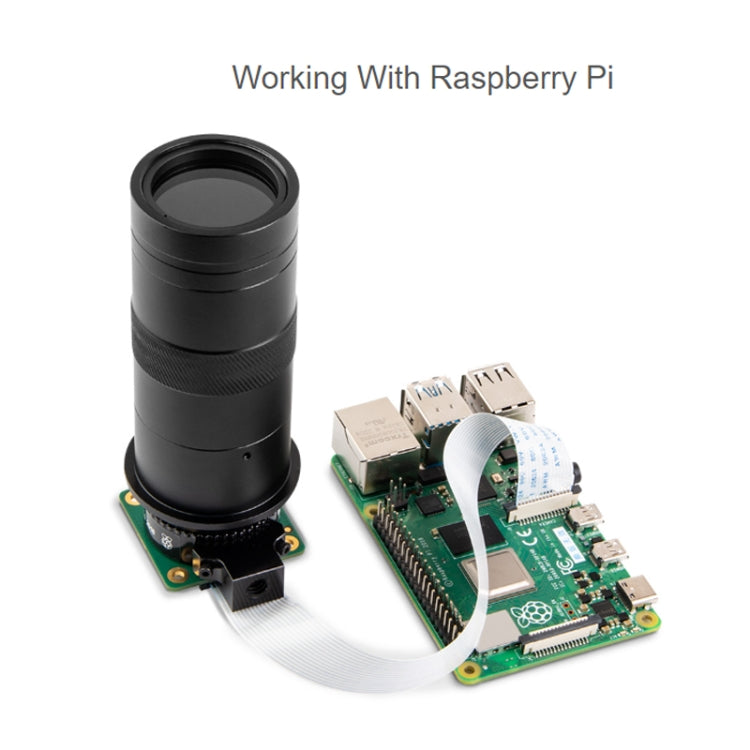

9. The Raspberry Pi development board and Raspberry Pi HQ camera in the photo are not included
For use with Raspberry Pi Zero or Zero 2W, additional purchase of a Raspberry Pi Zero v1.3 Camera Cable is required
10. The picture is for reference only. Due to the structural limitation of the microscope lens, additional lighting is required during use
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.47lb
|
| One Package Size |
15cm * 8cm * 8cm / 5.91inch * 3.15inch * 3.15inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 140 pcs = 24780 pcs
40HQ: 412 cartons * 140 pcs = 57680 pcs
|
|
