Features:

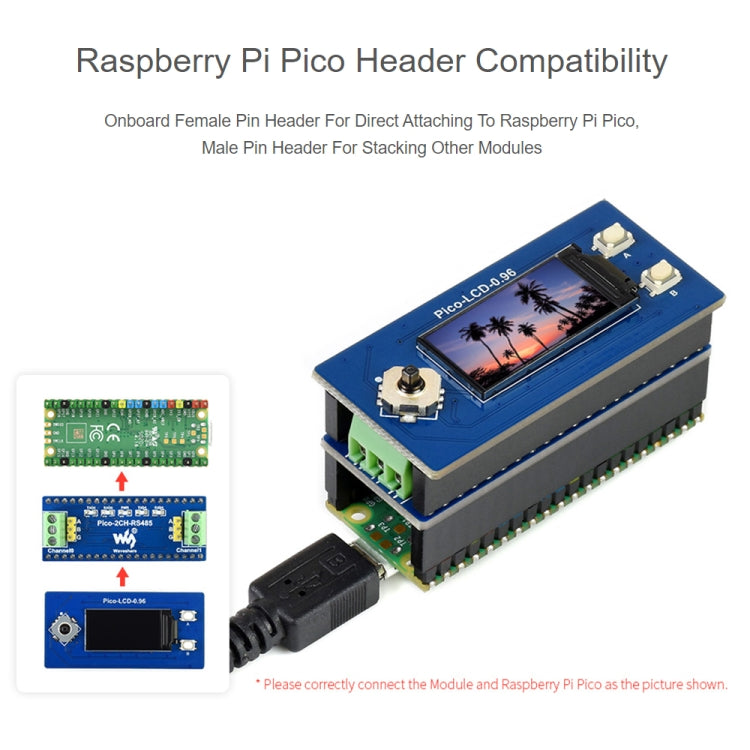

1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
2. Using UART bus, easily converting UART to RS485, or vice versa
3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications:
1. Operating voltage: 3.3V
2. RS485 Transceiver: SP3485
3. Communication BUS: UART
4. Baudrate: 300~500000bps
Package list:
Pico-2CH-RS485 x1
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.08lb
|
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
|
| Carton Weight |
5.00kgs / 11.02lb
|
| Carton Size |
32cm * 22cm * 22cm / 12.6inch * 8.66inch * 8.66inch
|
| Loading Container |
20GP: 1721 cartons * 200 pcs = 344200 pcs
40HQ: 3996 cartons * 200 pcs = 799200 pcs
|
|
