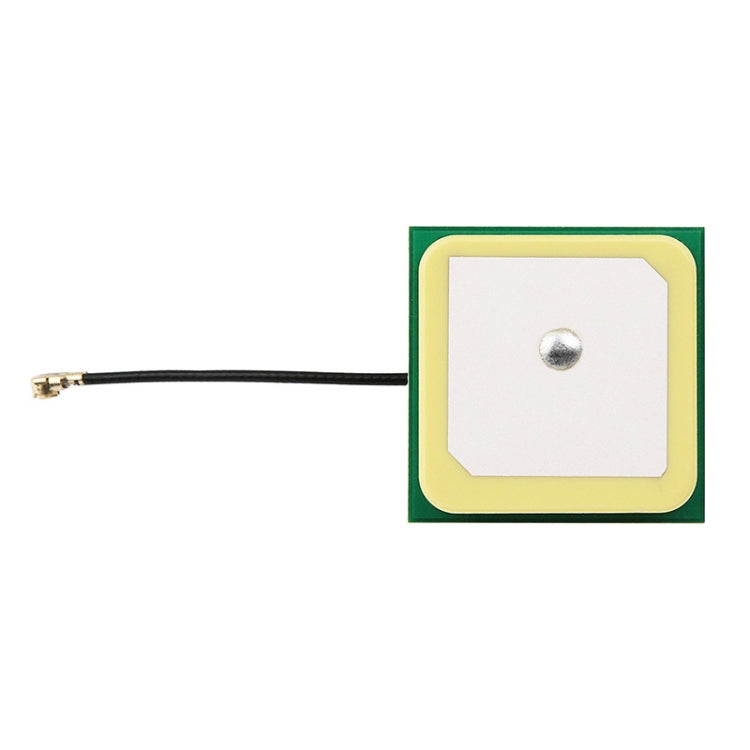

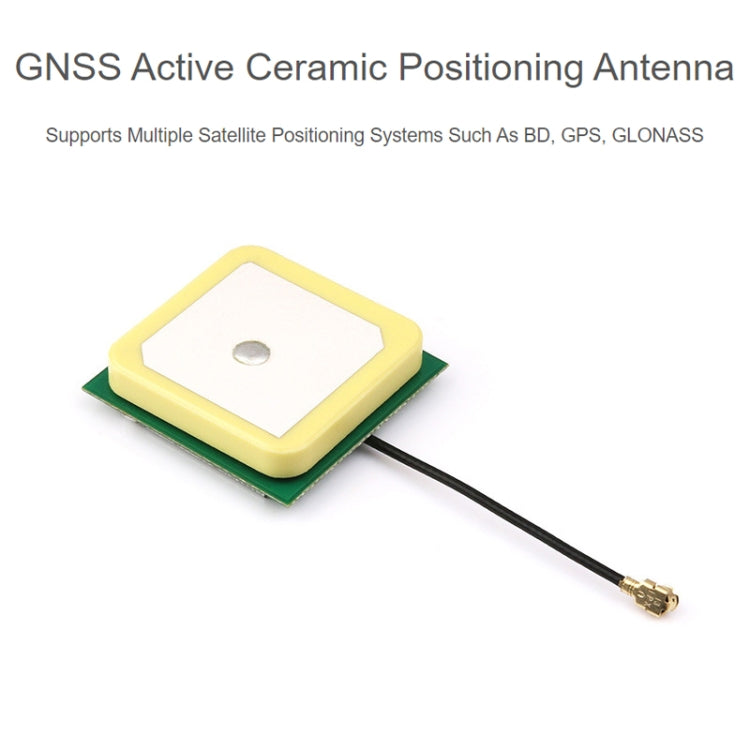

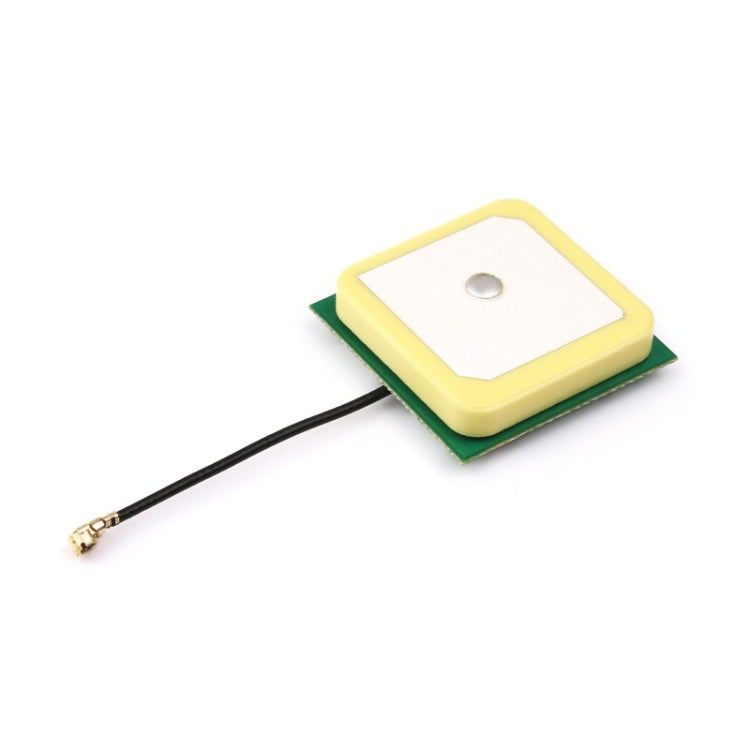

1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1
6. Cable length: 35mm

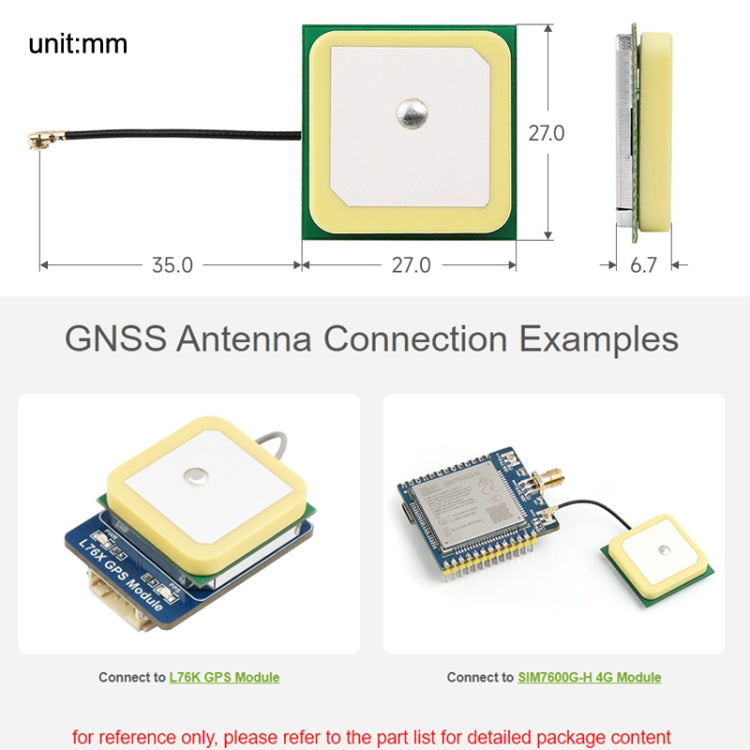

7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
6cm * 4cm * 3cm / 2.36inch * 1.57inch * 1.18inch
|
| Carton Weight |
27.00kgs / 59.52lb
|
| Carton Size |
47cm * 31cm * 23cm / 18.5inch * 12.2inch * 9.06inch
|
| Loading Container |
20GP: 795 cartons * 500 pcs = 397500 pcs
40HQ: 1847 cartons * 500 pcs = 923500 pcs
|
|
