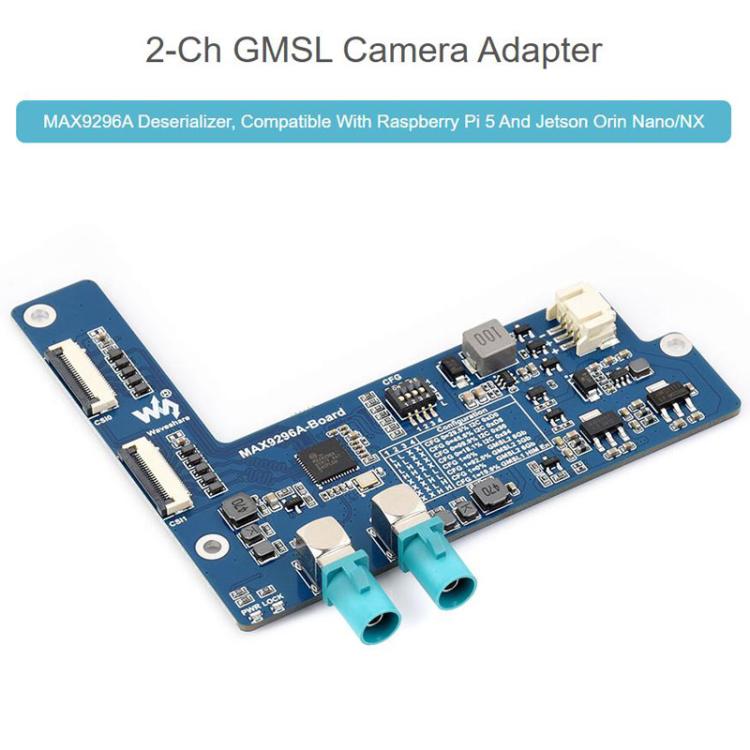

1. Deserializer: MAXIM (ADI) MAX9296A
2. Supported hosts: Raspberry Pi 5, Jetson Orin NX/Nano development kits
3. Supported serializer models: MAX9295, MAX96717, MAX96705, etc.

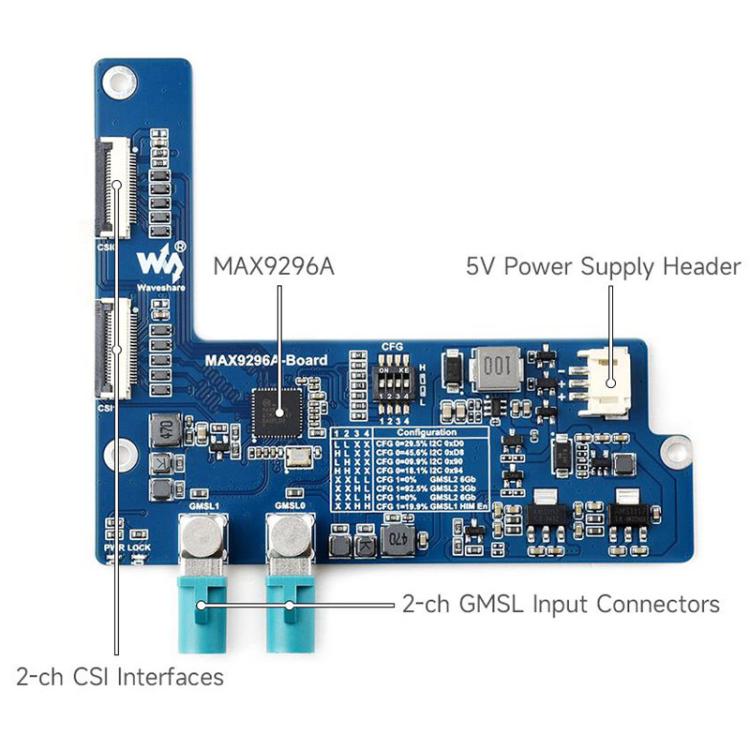

4. GMSL input: 2 x GMSL2 (GMSL1 compatible) cameras
5. Input interface: 2 x MATE_AX FAKRA Z connectors
6. Output interface: 22-pin CSI interface
7. Supported GMSL camera models: ISX031, etc.
8. Power supply: 5V input
Package contents:
- MAX9296-GMSL-DESER-MODULE x 1
- 22-pin FFC cable (about 100mm) x 2
- PH2.0 3-pin connector cable x 1
- Screw kit x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
14cm * 12cm * 4cm / 5.51inch * 4.72inch * 1.57inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 467 cartons * 72 pcs = 33624 pcs
40HQ: 1086 cartons * 72 pcs = 78192 pcs
|
|
