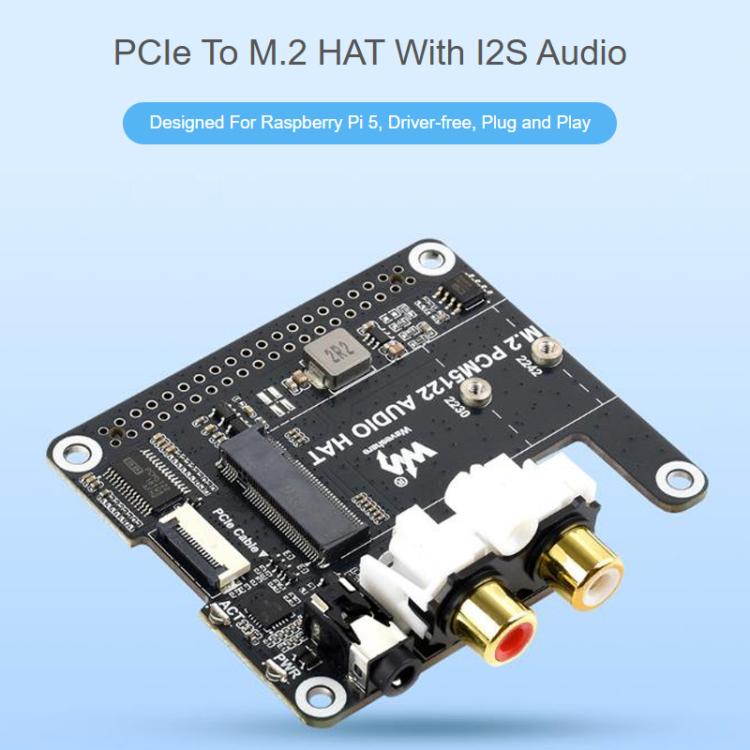

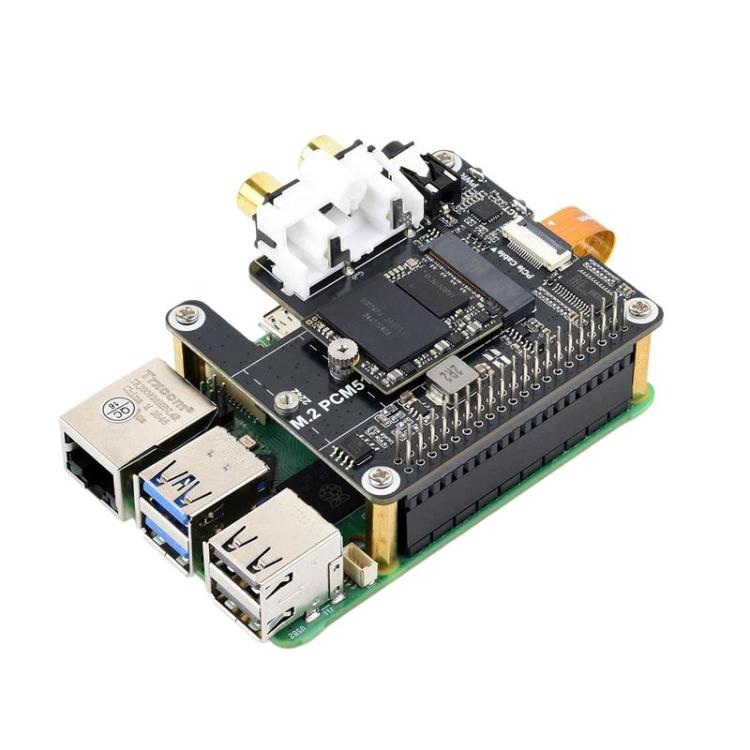

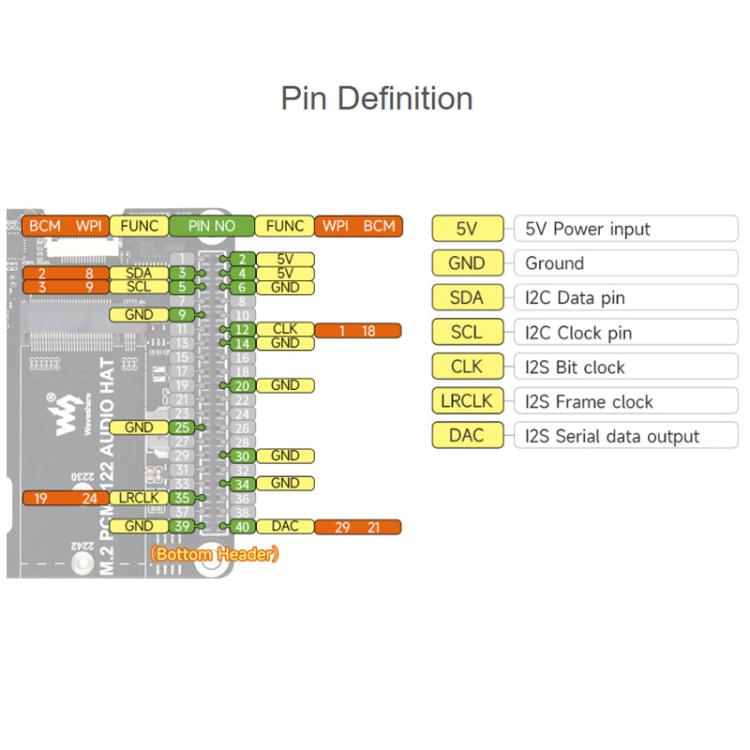

1. Based on the 40-pin GPIO interface of Raspberry Pi, specially designed for Raspberry Pi 5

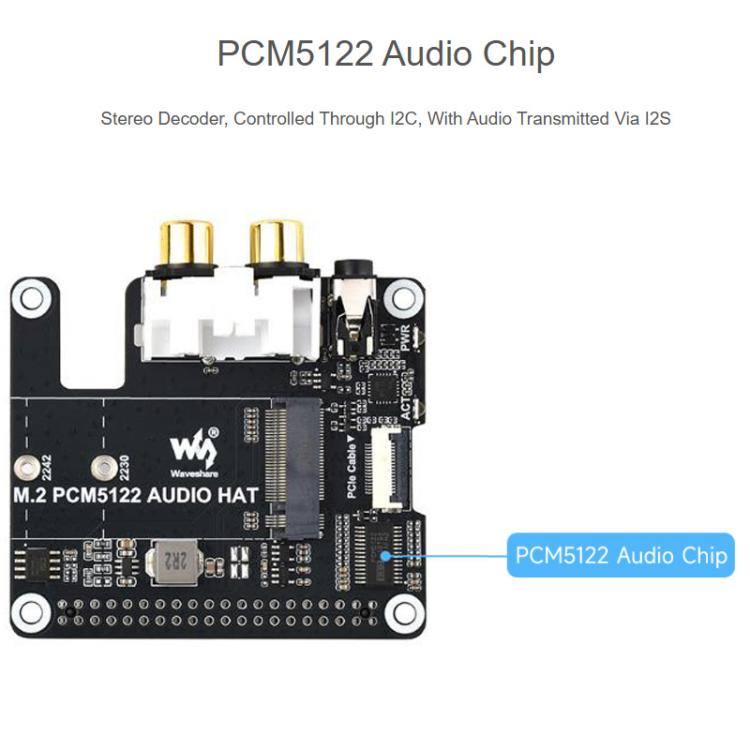

2. Utilizing the PCM5122 professional stereo codec chip, controlled via I2C interface and transmitting audio through I2S interface

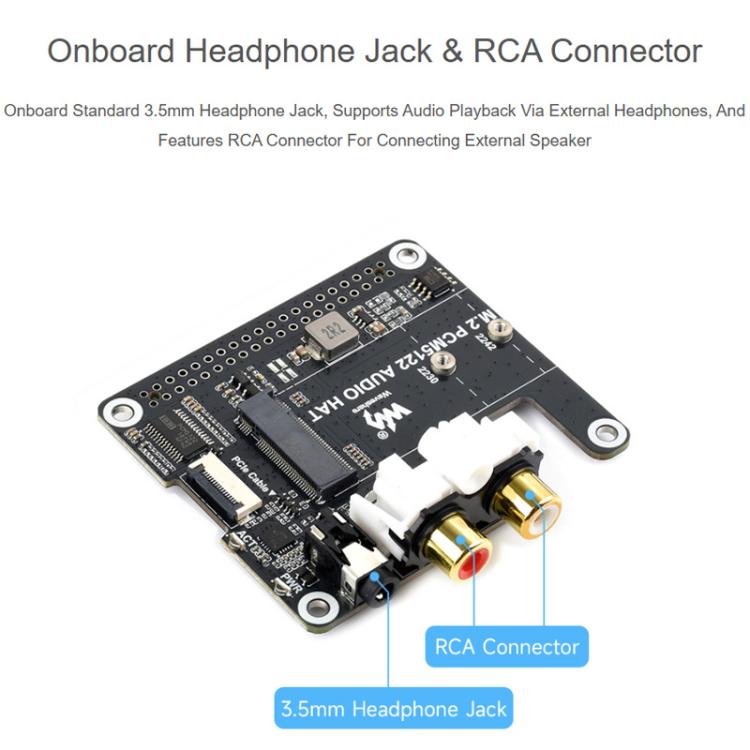

3. Built-in standard 3.5mm headphone jack, allowing music playback through an external headphone
4. Built-in RCA port, suitable for various working scenarios such as speaker amplifiers
5. Supports the highest sampling frequency of 384KHz
6. Supports the highest resolution of 32bit

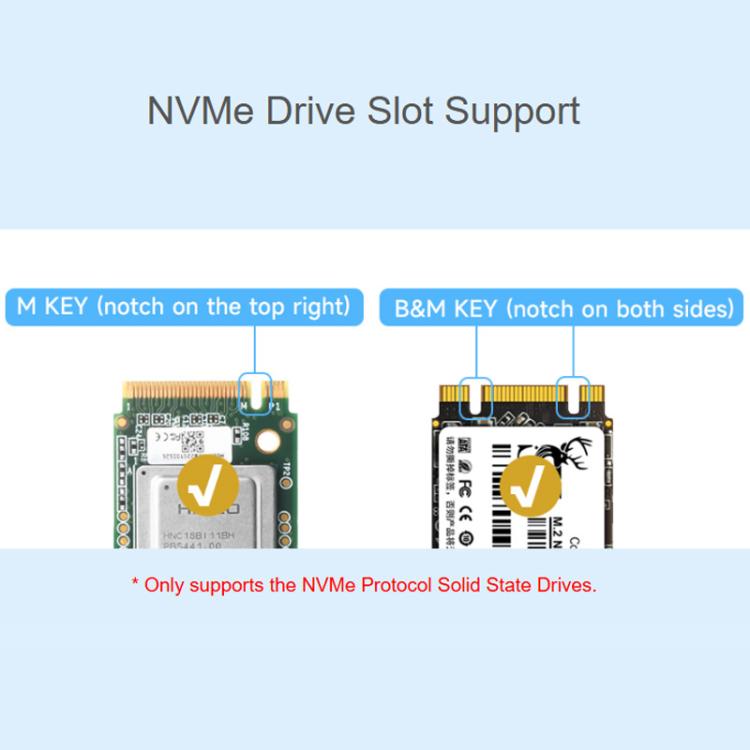

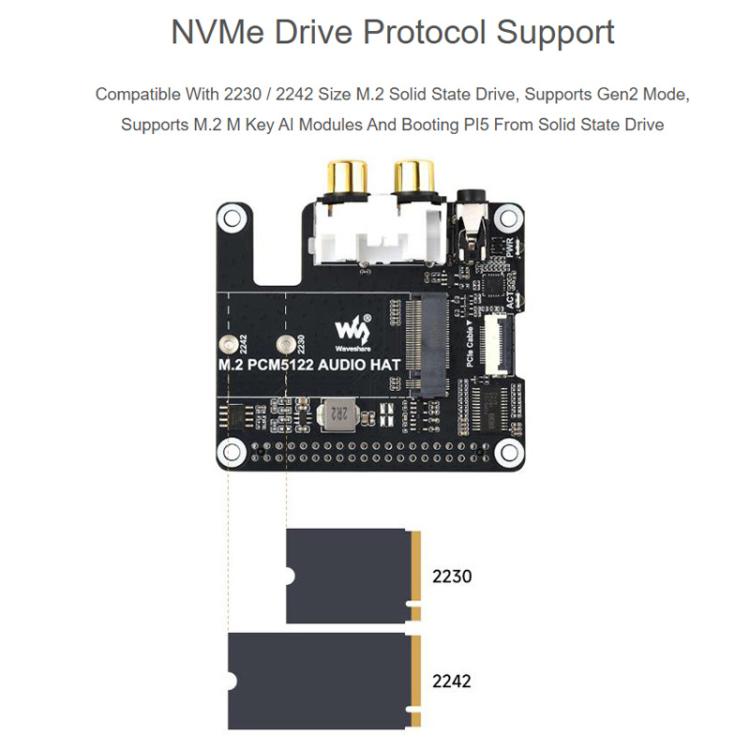

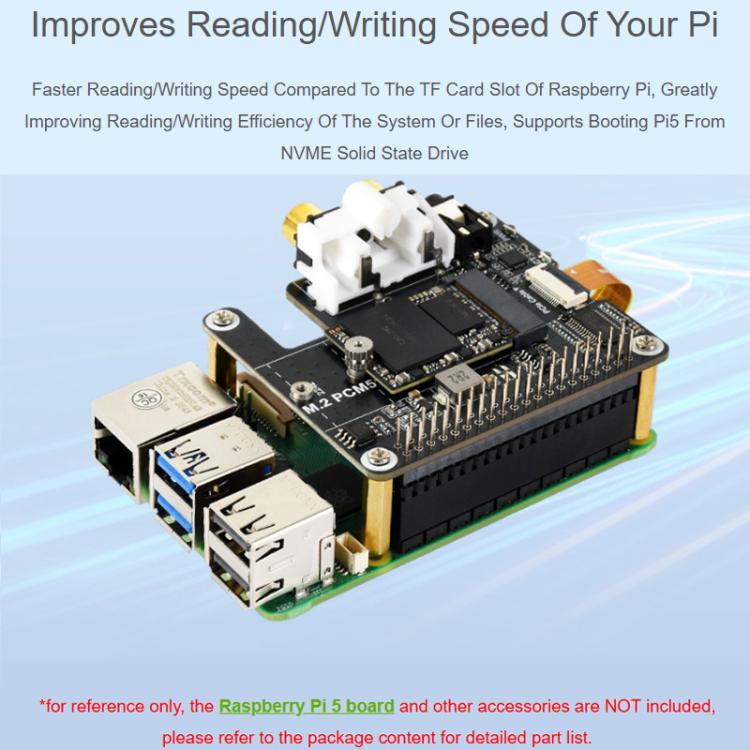

7. Supports 2230 / 2242 size NVMe M.2 hard drives or M.2 M KEY AI modules
8. The M.2 M KEY module supports a maximum transfer rate of 8Gbps

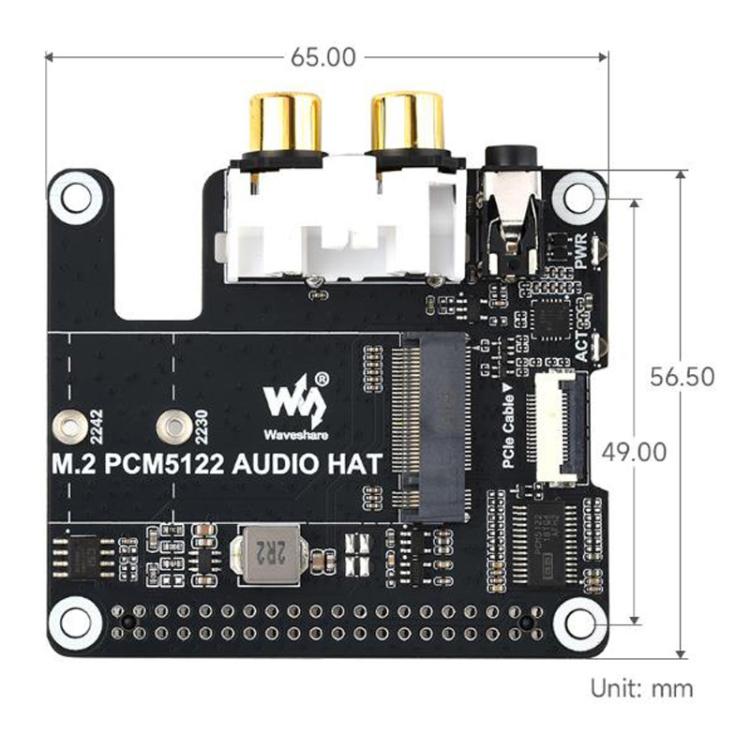

9. Size: about 6.5 x 5.65cm
Packaging list:
- M.2-PCM5122-AUDIO-HAT x 1
- Flush-mounted seats: 2 x 20, 2.54mm x 1

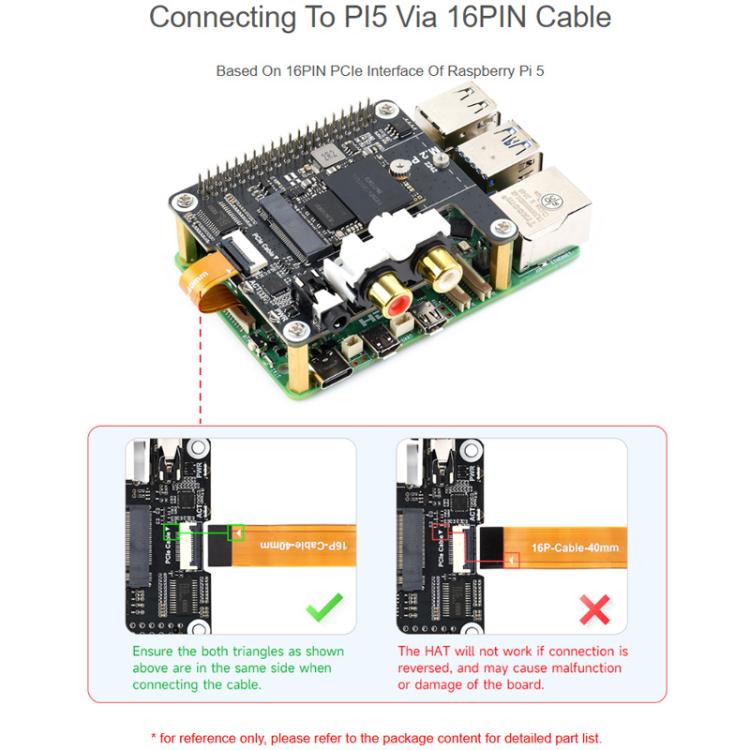

- 16P-Cable-40mm x 1
- Screw cap x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
9cm * 8cm * 4cm / 3.54inch * 3.15inch * 1.57inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 192 pcs = 79104 pcs
40HQ: 958 cartons * 192 pcs = 183936 pcs
|
|
