1. Supports 4K output for sharp, clear display

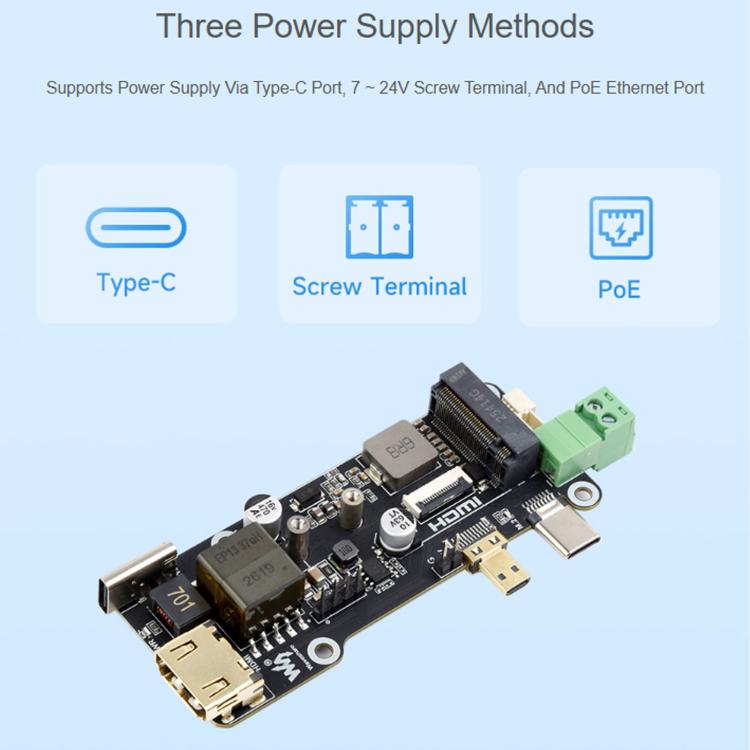

2. Offers three power supply options: Type-C interface, terminal block (7-24V), or PoE

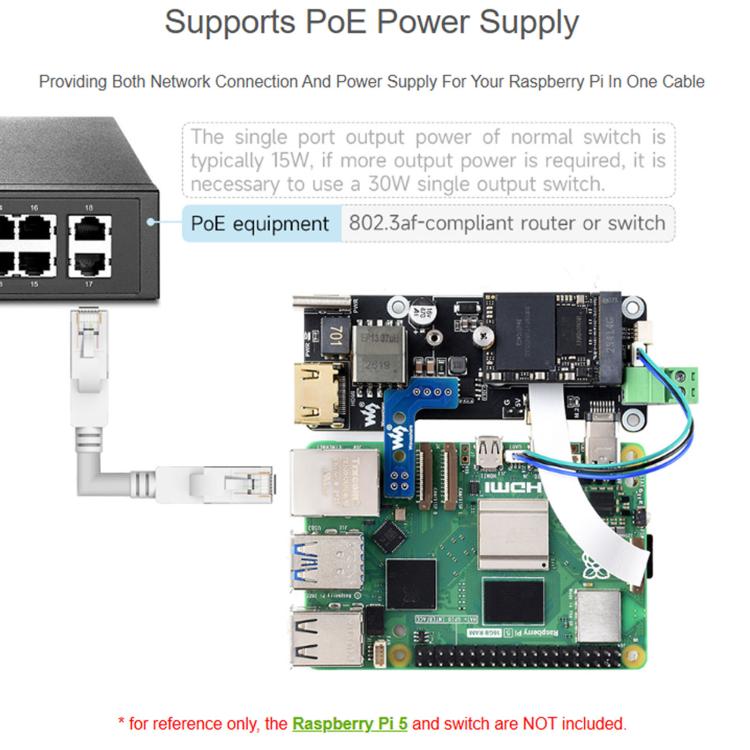

3. Supports PoE Ethernet power delivery， just connect a single network cable to a PoE device to enable both internet connectivity and power for the Raspberry Pi

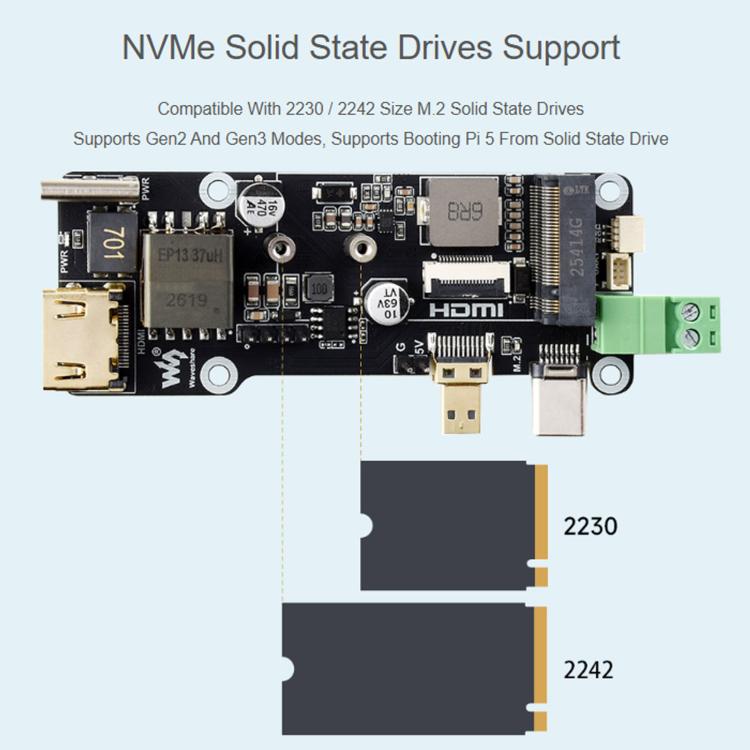

4. Supports NVMe drive protocol, compatible with M.2 SSDs of 2230/2242 sizes; supports Gen2 and Gen3 modes, enabling booting from SSD on Pi 5

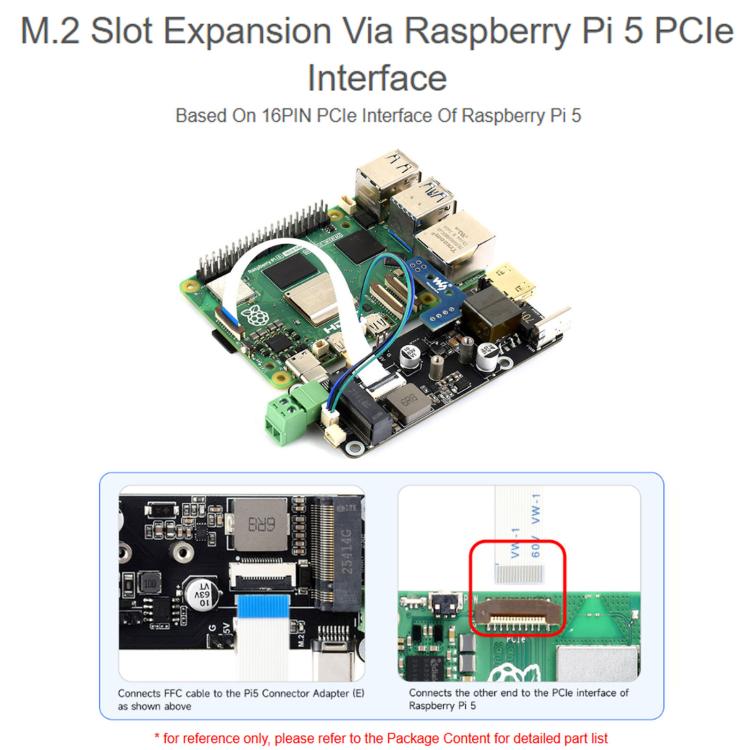

5. Integrated PoE power circuit and PCIe-to-M.2 interface, supporting NVMe protocol drives for high-speed read/write operations and improved efficiency
Packaging list:
- Pi5 Connector Adapter (E) x 1
- PoE adapter board x 1
- SH1.0 3PIN connection cable (opposite direction) 100mm x 1
- SH1.0 3PIN connection cable 100mm x 1
- 16PIN FFC cable (same direction) 100mm x 1
- Hard disk fixing screws x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.11lb
|
| One Package Size |
12cm * 8cm * 6cm / 4.72inch * 3.15inch * 2.36inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 95 pcs = 39140 pcs
40HQ: 958 cartons * 95 pcs = 91010 pcs
|
|
