1. Pixels: 2 million
2. Photographic sensor: PS5268
3. Interface type: USB 2.0
4. Sensor size: 1/2.7 inch
5. Aperture (F): 2.2
6. Focal length (EFL): 2.28mm
7. Field of view (FOV): 187.4° (D) x 156.7° (H) x 93.4° (V)
8. Focusing mode: fixed focusing
9. Distortion: Lless than -31%
10. Dynamic range: 85dB
11. Infrared filter: 650nm filter
12. Image supported formats: MJPG, YUY2
13. Static image resolution: 1920 x 1080
14. Video recording support: MJPG: 30FPS 640 x 360; 30FPS 640 x 480; 30FPS 960 x 544; 30FPS 1280 x 720; 30FPS 1920 x 1080; YUY2: 10FPS 640 x 360; 10FPS 640 x 480; 5FPS 960 x 544; 5FPS 1280 x 720; 5FPS 1920 x 1080
15. Shutter mode: slit shutter
16. Audio: built-in dual microphones
17. Operating voltage: 5V ± 5%

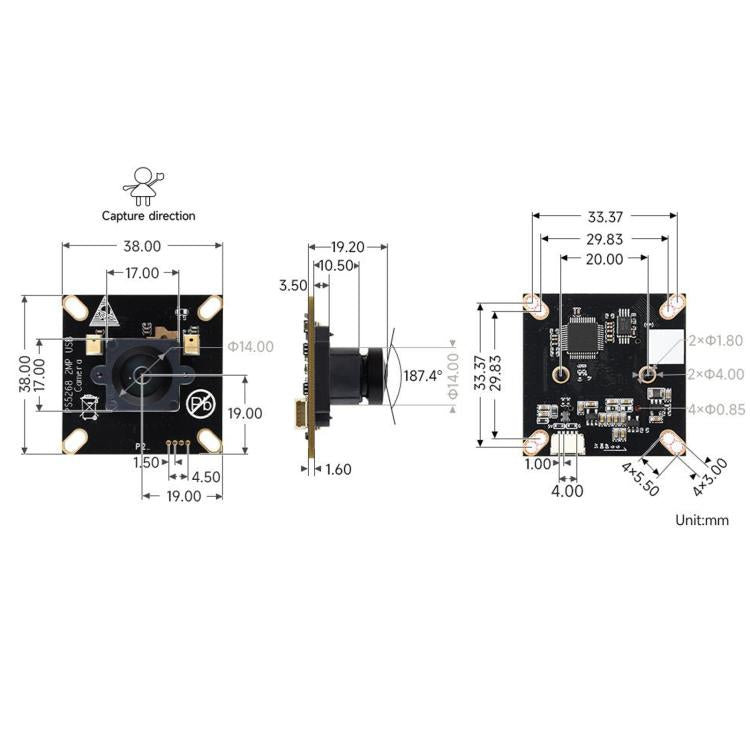

18. Module size: about 3.8 x 3.8 x 1.92 cm
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.11lb
|
| One Package Size |
8cm * 8cm * 4cm / 3.15inch * 3.15inch * 1.57inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
50cm * 34cm * 34cm / 19.69inch * 13.39inch * 13.39inch
|
| Loading Container |
20GP: 461 cartons * 192 pcs = 88512 pcs
40HQ: 1071 cartons * 192 pcs = 205632 pcs
|
|
