Overview

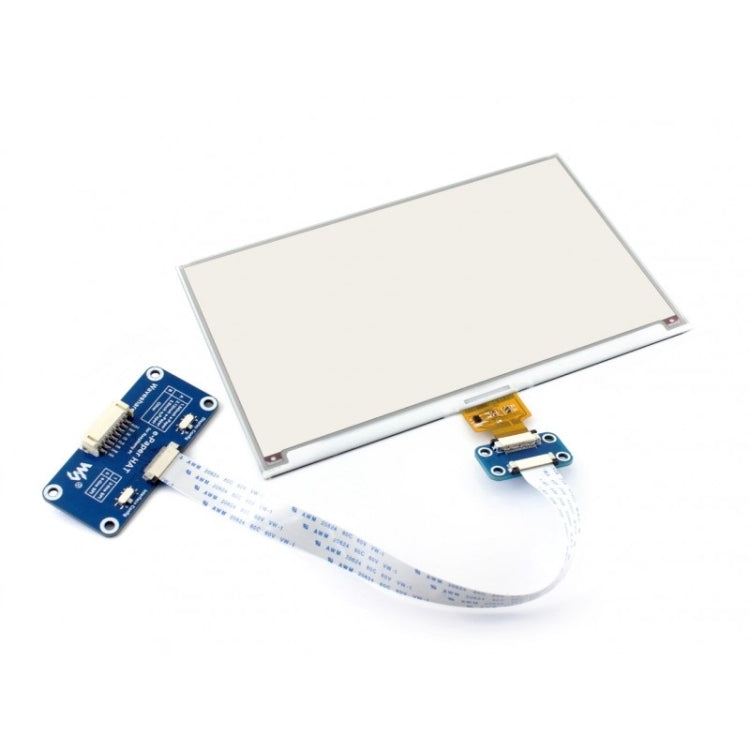

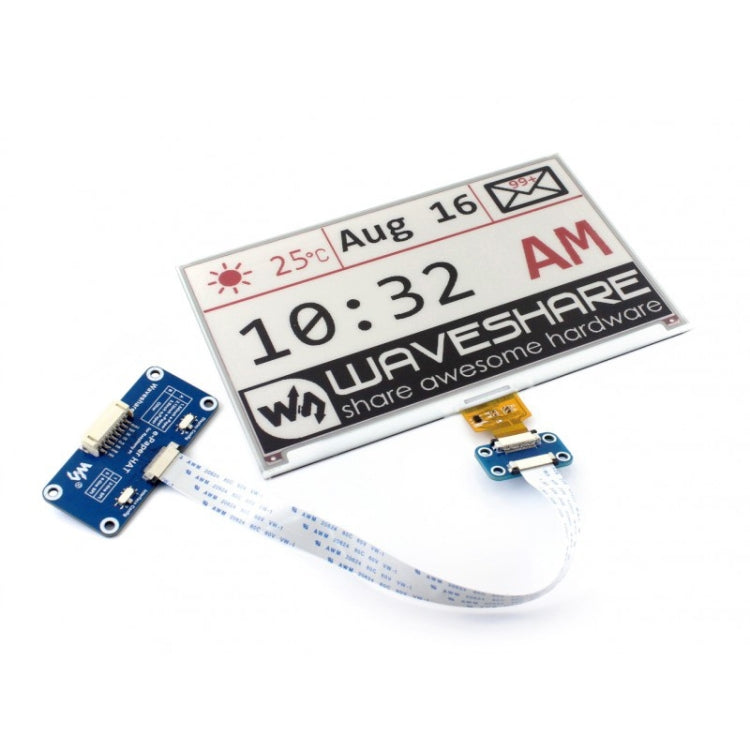

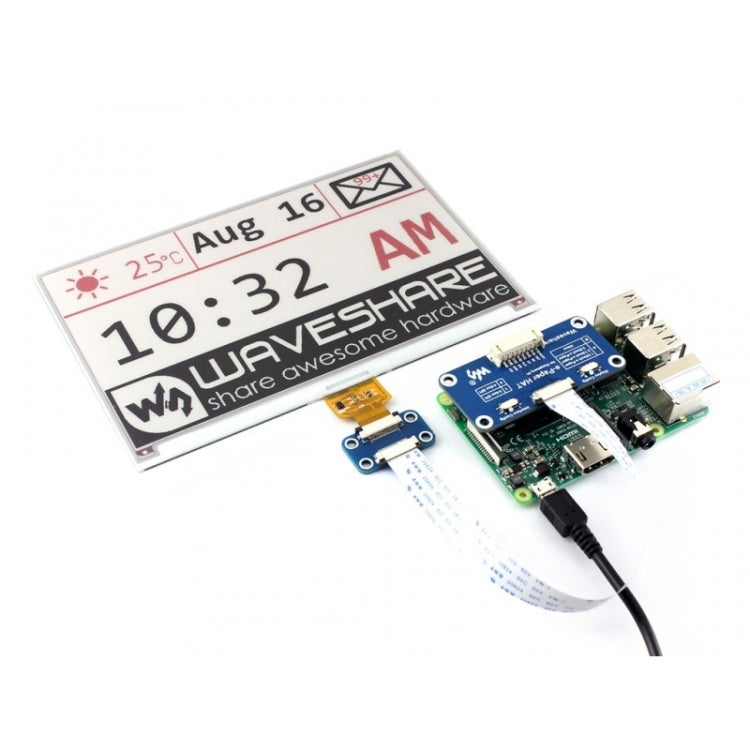

1. This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing

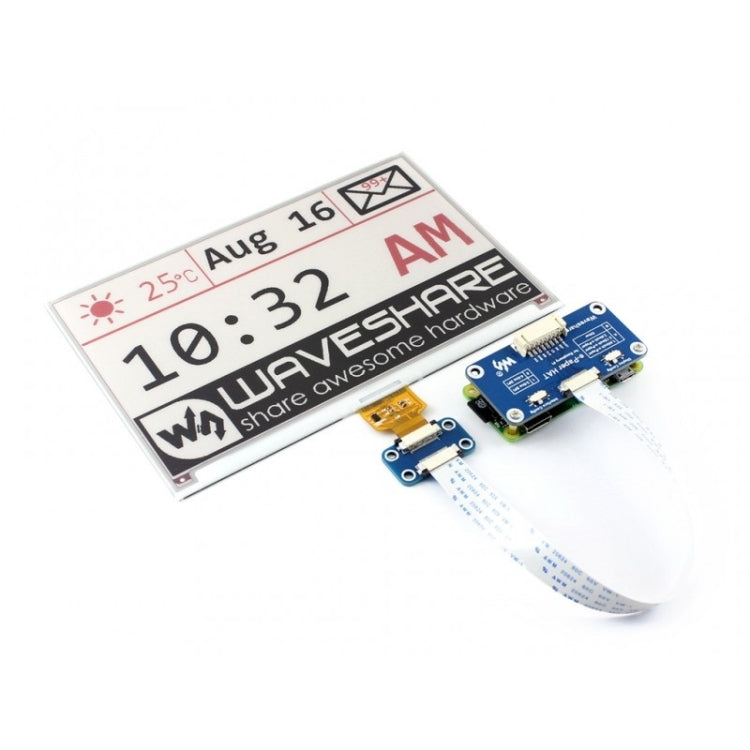

3. Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Onboard voltage translator, compatible with 3.3V/5V MCUs
6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI
3. Outline dimension: 170.2mm x 111.2mm
4. Display size: 163.2mm x 97.92mm
5. Dot pitch: 0.255 x 0.255
6. Resolution: 640 x 384
7. Display color: red, black, white
8. Grey level: 2
9. Full refresh time: 16s
10. Refresh power: 38mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
13. Weight: 0.065 kg
Package Contents

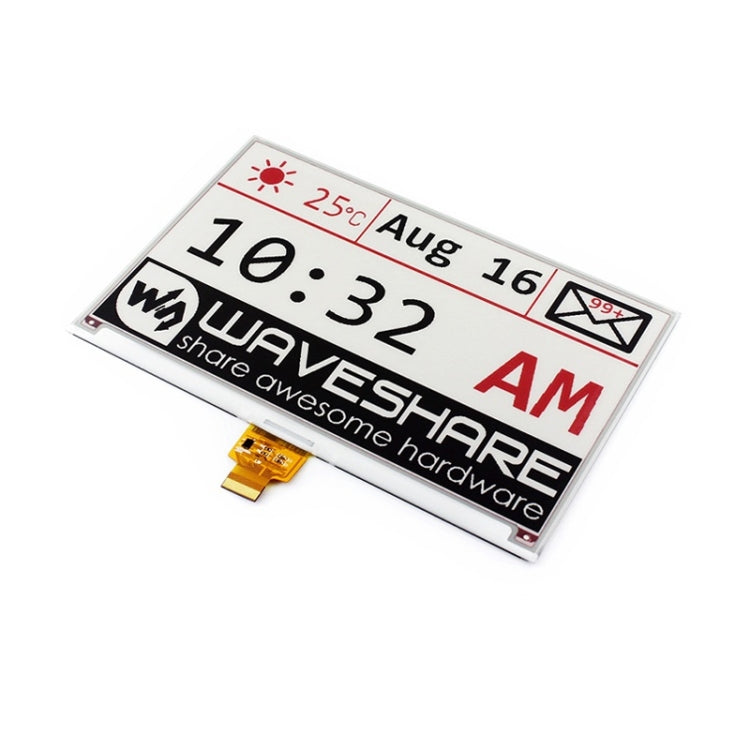

1. 7.5 inch e-Paper (B) x1

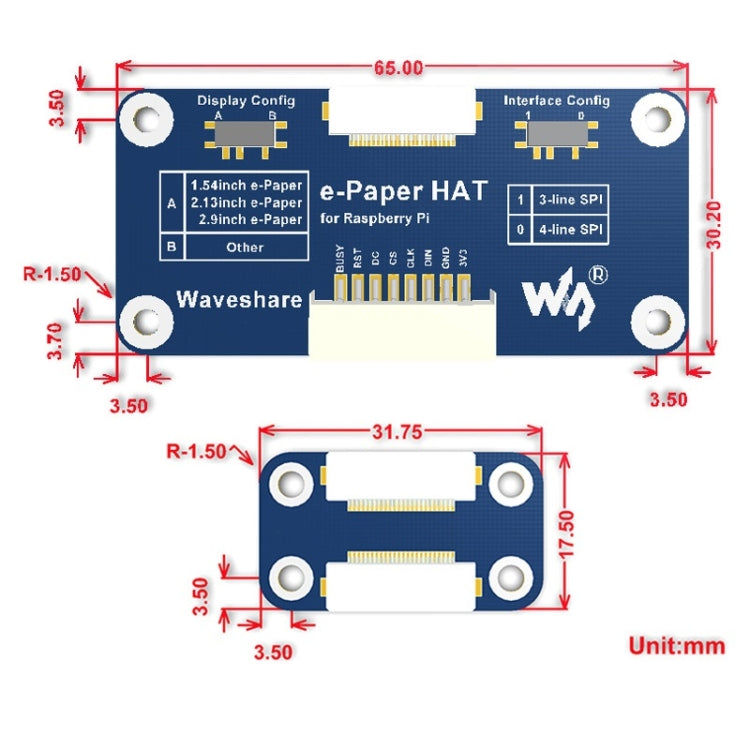

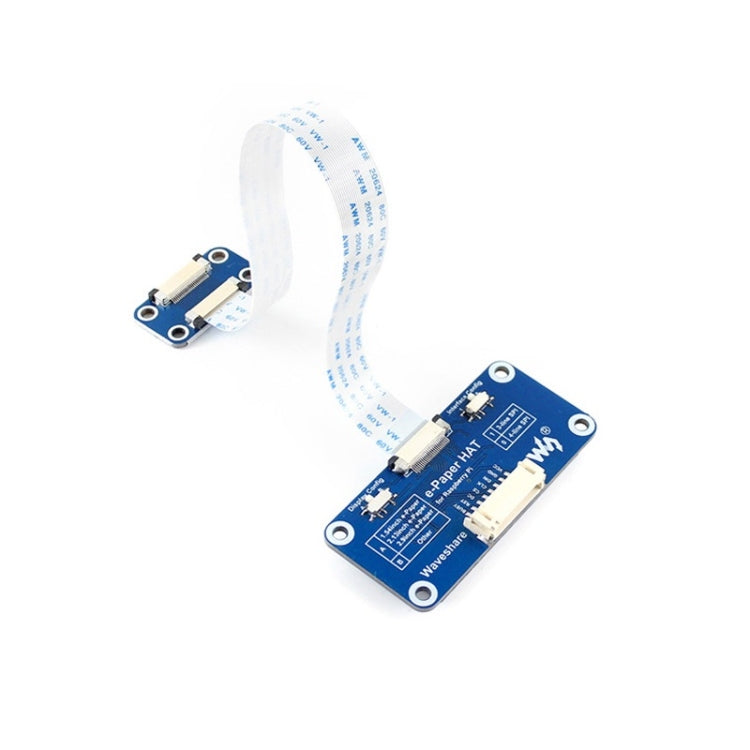

2. e-Paper Driver HAT x1

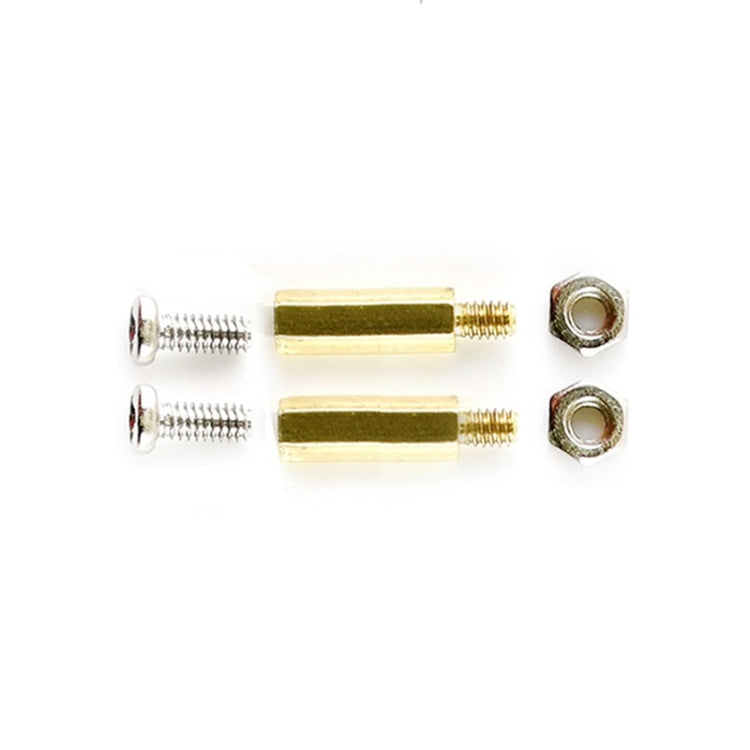

3. RPi screws pack (2pcs) x1

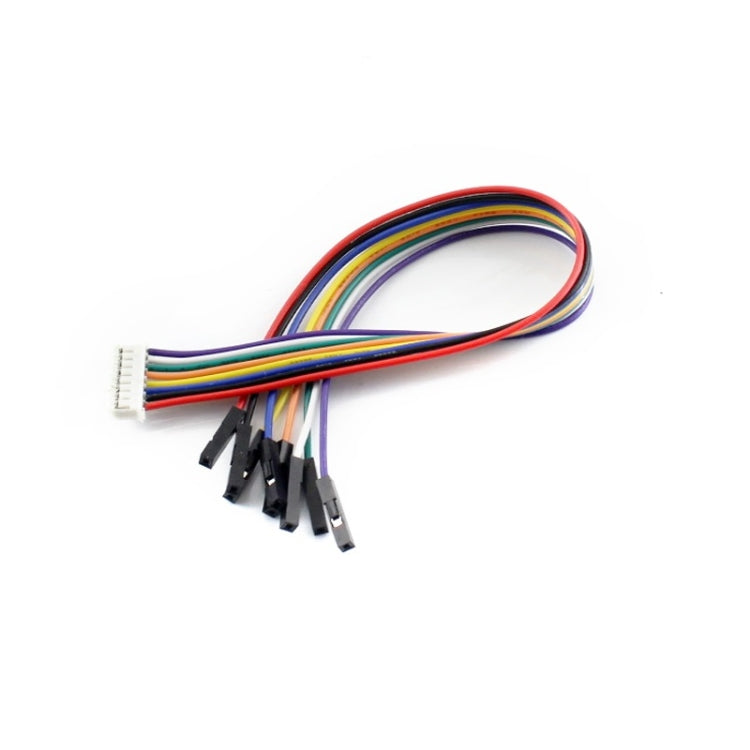

4. PH2.0 20cm 8Pin x1
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.18lb
|
| One Package Size |
20cm * 12cm * 2cm / 7.87inch * 4.72inch * 0.79inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch
|
| Loading Container |
20GP: 308 cartons * 180 pcs = 55440 pcs
40HQ: 716 cartons * 180 pcs = 128880 pcs
|
|
