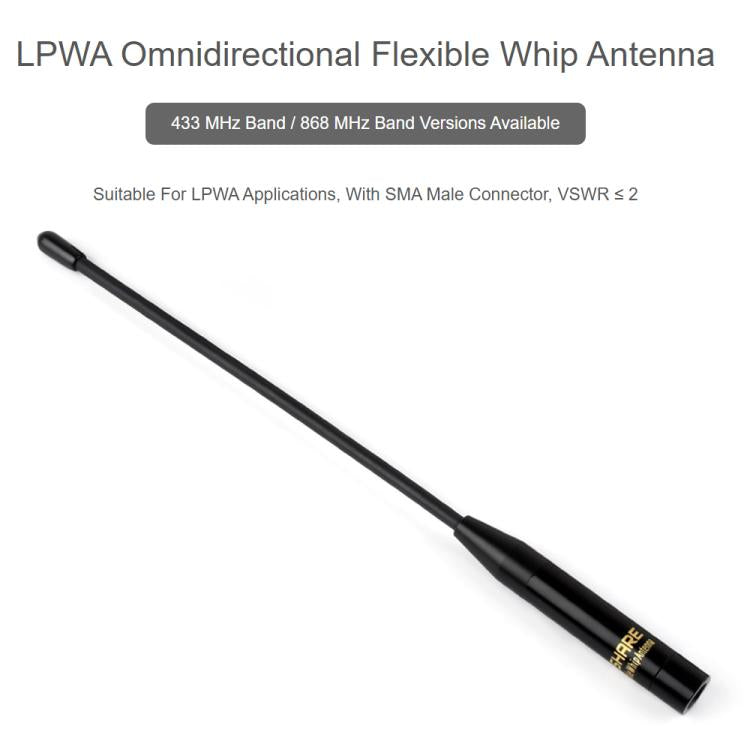

1. Features an omnidirectional flexible whip structure that supports moderate bending, providing excellent impact resistance to effectively reduce rigid damage during daily installation and collisions.
2. Utilizes a vertical polarization structure paired with a horizontal 360-degree beamwidth, delivering stable, reliable signal transmission and full-coverage connectivity—ideal for fixed wireless nodes and point-to-multipoint terminals.
3. Features high gain and low VSWR (less than or equal to 2), supporting a maximum power input of 10W to significantly enhance signal reception and transmission efficiency.
4. Offers good splash-proof and anti-corrosion performance, withstanding a wide operating temperature range from -40 to 75 degrees Celsius for all-weather outdoor operation in complex environments.
5. Equipped with a standard SMA male connector, widely compatible with IoT devices and wireless transceiver modules operating in LPWA and LoRa 433MHz/868MHz frequency bands.
Product Parameters:
1. Supported Network: LPWA
2. Operating Frequency: 433MHz (410 ~ 510MHz) / 868MHz (850 ~ 885MHz)
3. Antenna Gain: 433MHz: 2.15dBi / 868MHz: 2.5dBi
4. Connector Type: SMA Male (Internal Pin)
5. Output Impedance: 50 ohms
6. Max Input Power: 10W
7. VSWR: Less than or equal to 2
8. Polarization Type: Vertical
9. Antenna Weight: 27g
10. Operating Temperature: -40 to 75 degrees Celsius

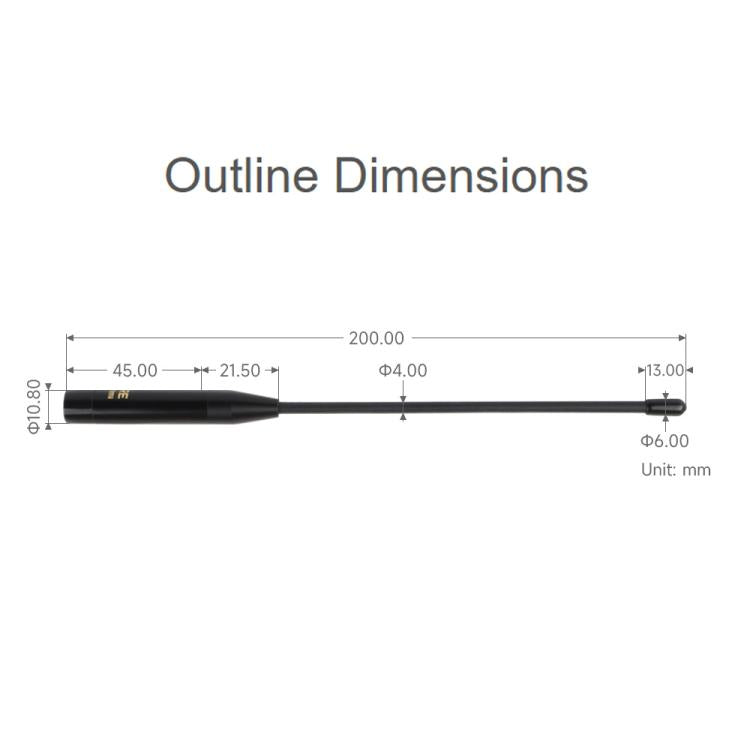

11. Antenna Dimensions: 200mm
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.09lb
|
| One Package Size |
22cm * 3cm * 3cm / 8.66inch * 1.18inch * 1.18inch
|
| Carton Weight |
7.10kgs / 15.65lb
|
| Carton Size |
46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs
|
|
