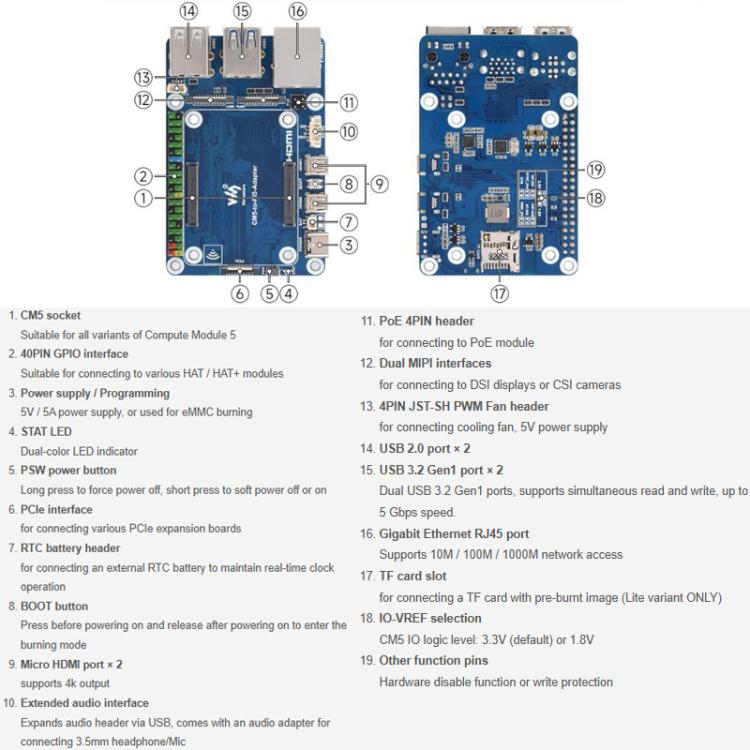

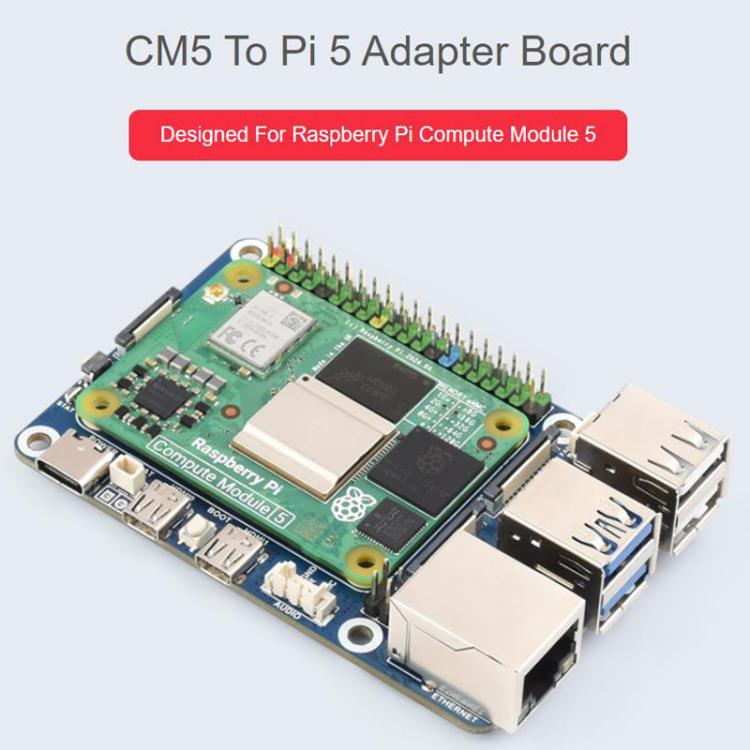

1. CM5 card slot: compatible with all versions of Compute Module 5
2. Networking: gigabit ethernet RJ45 port
3. Connectors: 16-pin PCIe (PCIe Gen2/3 x 1) Raspberry Pi 40-pin GPIO interface
4. USB: USB 3.2 Gen1 x 2; USB 2.0 x 2
5. MIPI: 4-lane MIPI interface × 2 (22-pin 0.5mm FFC connector)
6. Video: HDMI interface x 2, supporting dual 4K output
7. Audio: compatible with standard 3.5mm headphone jacks for audio input/output via accessory module
8. Storage: onboard Micro SD card slot (For CM5 versions without eMMC)
9. Fan Interface: 5V, 4-pin JST-SH PWM fan connector
10. Power Input: DC 5V 5A

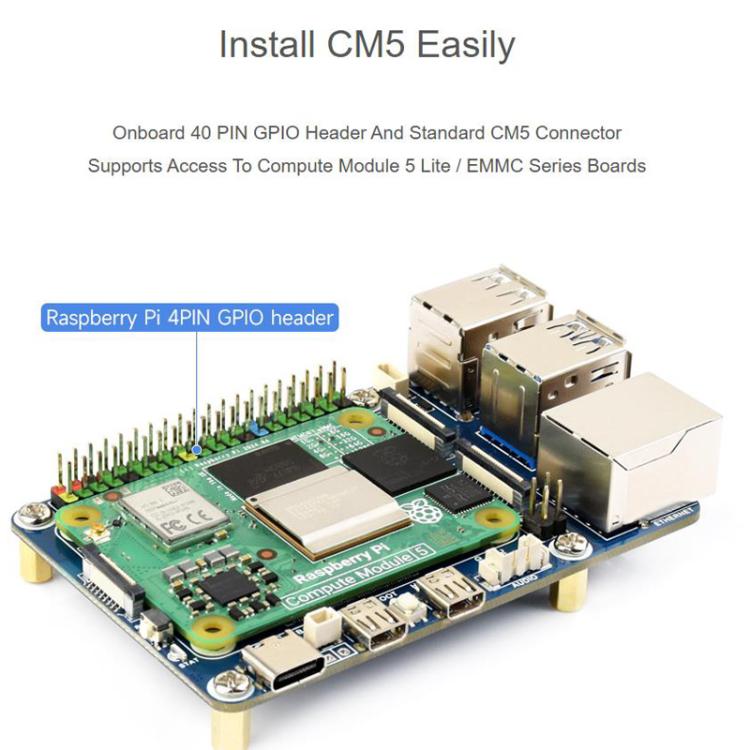

11. Onboard 40-pin GPIO interface and standard CM5 connector, supporting Compute Module 5 Lite / eMMC series core boards

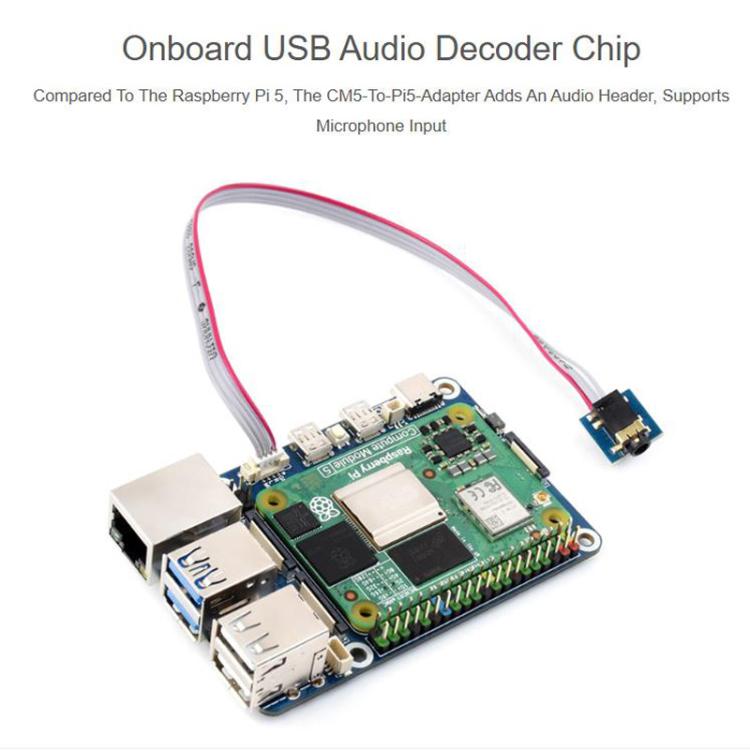

12. Onboard USB audio decoder chip, supports microphone connection

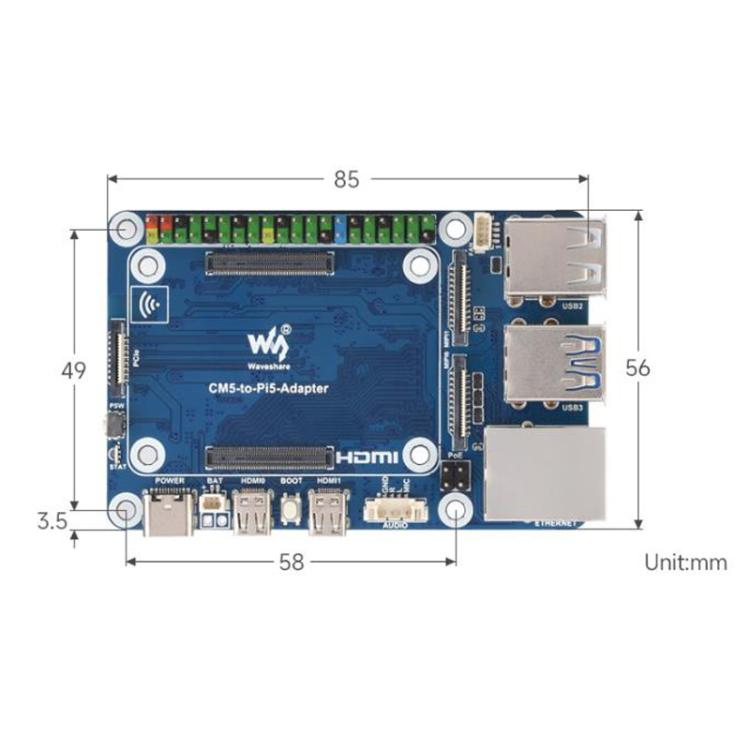

13. Size: about 8.5 x 5.6 cm
Package contents:
- CM5-to-Pi5-Adapter x 1
- Audio-Adapter x 1
- MX1.25 4-pin dual-ended cable (approx. 200mm) x 1
- Screw set x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
50cm * 37cm * 35cm / 19.69inch * 14.57inch * 13.78inch
|
| Loading Container |
20GP: 411 cartons * 160 pcs = 65760 pcs
40HQ: 956 cartons * 160 pcs = 152960 pcs
|
|
