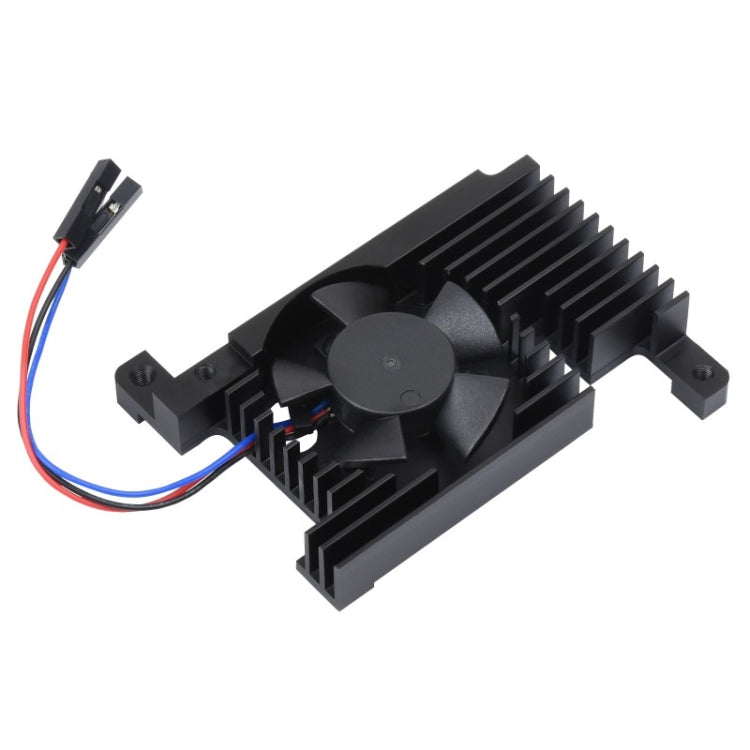

1. Dedicated all-In-one aluminum alloy cooling fan for Raspberry Pi 4B, PWM speed adjustment, better cooling, low noise, space saving
2. This is a thin and lightweight heat sink, equipped with a 3510 ultra-quiet cooling fan, and the fan supports PWM speed regulation, which is perfectly compatible with Raspberry Pi OS. Other systems need to manually write python or C code to drive the fan speed through PWM.
3. NOTE: Supports Raspberry Pi 4B Only, Automatic speed control function only supports Raspberry Pi OS.
Specifications:
1. Supported Pi: Raspberry Pi 4 Model B 1GB/2GB/4GB/8GB version
2. Power supply: DC 5V input (can be powered by Raspberry Pi)
3. Interface: 3-wire PWM speed control fan connector
4. Rated power: 0.3W (5V, 0.6+/-0.02A)
5. Cable length: 80+/-10mm
6. Fan: 5500+/-10%RPM
Package List:
1. PI4-FAN-PWM x1
2. Silicone thermal tape x4 and Screw x2
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.13lb
|
| One Package Size |
10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs
|
|
