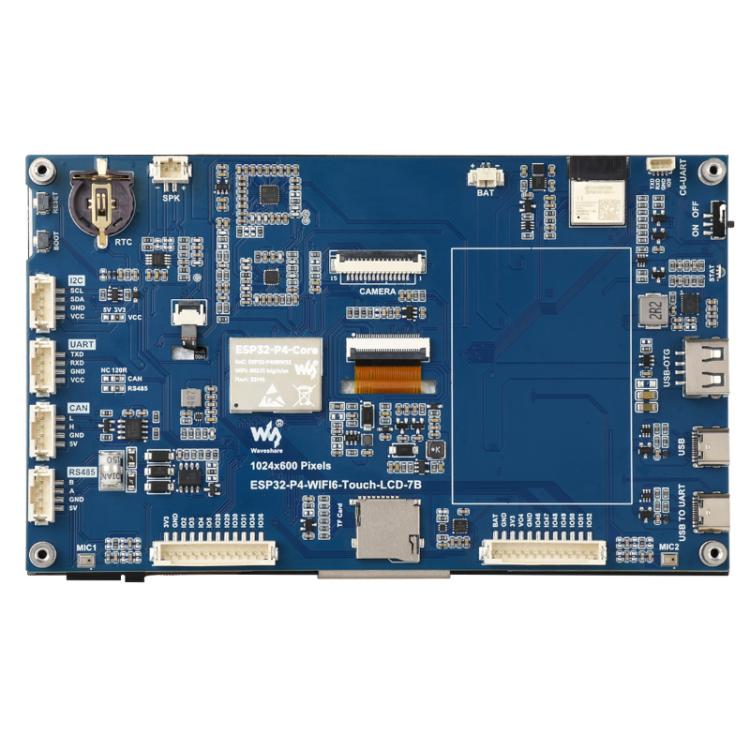

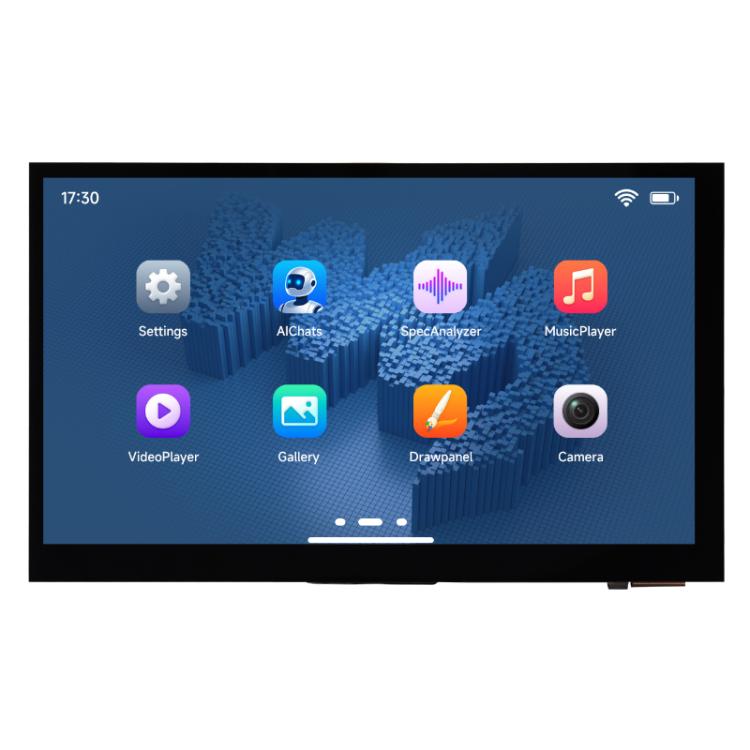

WAVESHARE ESP32-P4-WIFI6 7-Inch Five-Point Touchscreen Development Board 1024x600 Resolution, Version: Basic

Product Introduction:
This product is a high-performance development board based on the ESP32-P4 chip, featuring a dual-core plus single-core RISC-V architecture. It includes an onboard 7-inch 1024 × 600 resolution IPS touchscreen display and supports a variety of human-machine interaction interfaces, including MIPI-CSI with an integrated image signal processor (ISP), and a high-speed USB OTG 2.0 HS interface. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. Designed for high-performance and high-security applications, it fully meets the higher demands of embedded applications in terms of human-machine interface support, edge computing capabilities, and I/O connectivity.

Product features:
1. Processor: equipped with a RISC-V 32-bit dual-core processor (HP system), with DSP and instruction set extensions, and a floating-point unit (FPU), with a main frequency up to 360MHz.
2. Equipped with a RISC-V 32-bit single-core processor (LP system), with a main frequency up to 40MHz.

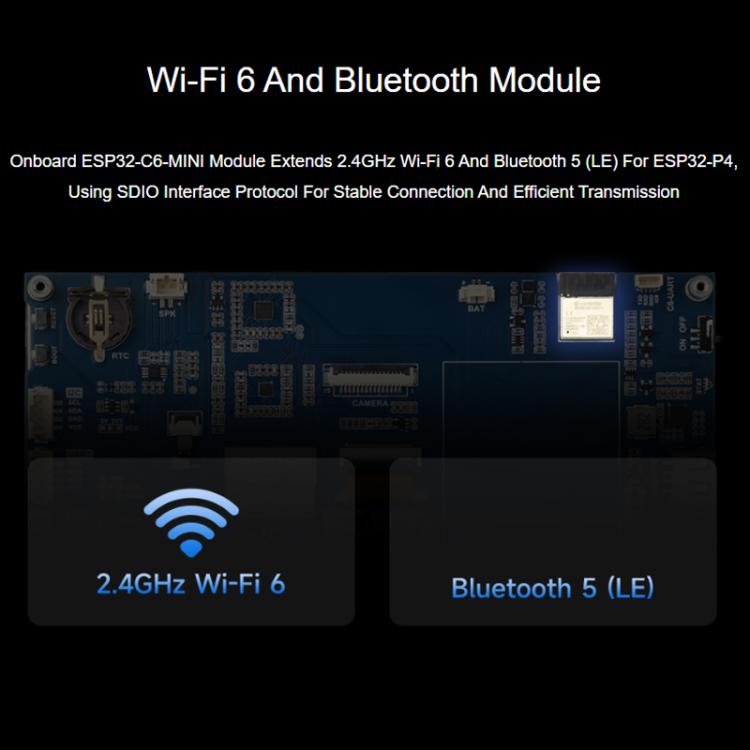

3. Equipped with an ESP32-C6 WIFI/BT coprocessor, extending WIFI 6/Bluetooth 5 and other functions via SDIO.
4. Resolution: 1024x600
5. Communication Interface: Supports RGB565, RGB666, RGB888
6. Display panel: IPS
7. Touch type: capacitive
8. Touch chip: GT911
9. Brightness: 350cd/m2
10. Contrast ratio: 600:1
11. Viewing angle: 160 degrees
12. Dimensions: 99.17x164.28mm
13. Display size: 86.42x154.58mm
14. Display colors: 16.7M colors

Memory:
1. 128 KB high-performance (HP) system read-only memory (ROM)
2. 16 KB low-power (LP) system read-only memory (ROM)
3. 768 KB high-performance (HP) L2 memory (L2MEM)
4. 32 KB low-power (LP) SRAM
5. 8 KB system tightly coupled memory (TCM)

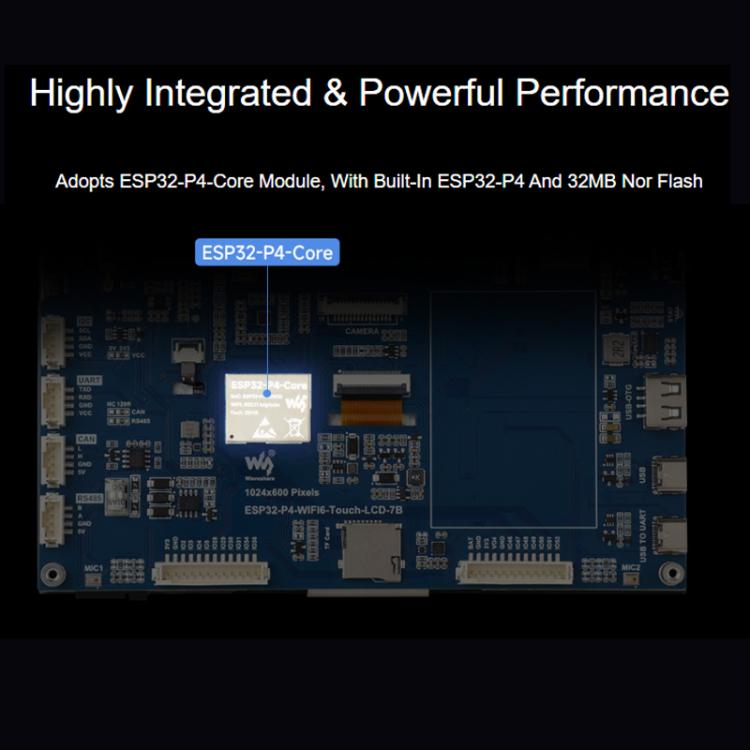

6. 32 MB PSRAM stacked in the package, 32MB Nor Flash connected via QSPI interface

Peripheral Interfaces:
1. Onboard Type-C USB 2.0 OTG interface, SDIO 3.0 SD card slot, Type-C UART programming port for convenient use in different scenarios.

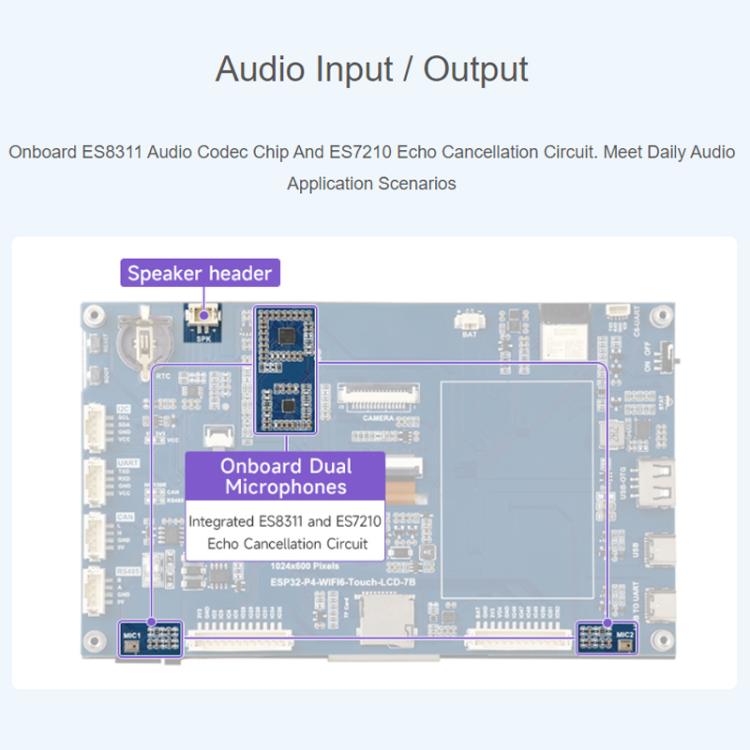

2. Onboard speaker interface and microphone, allowing for ideal audio functionality using codec and power amplifier chips.
3. Onboard MIPI-CSI high-definition camera interface, supporting full HD 1080P image acquisition and encoding, integrated image signal processor (ISP), H264 video encoder, supporting H.264 & JPEG video encoding (1080P @30fps), suitable for applications in computer vision, machine vision, etc.
4. Onboard MIPI-DSI high-definition display interface, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P). At 30fps, it provides strong support for high-definition display and a smooth HMI experience, making it suitable for applications such as smart home control panels, industrial control panels, and automatic vending machines.
