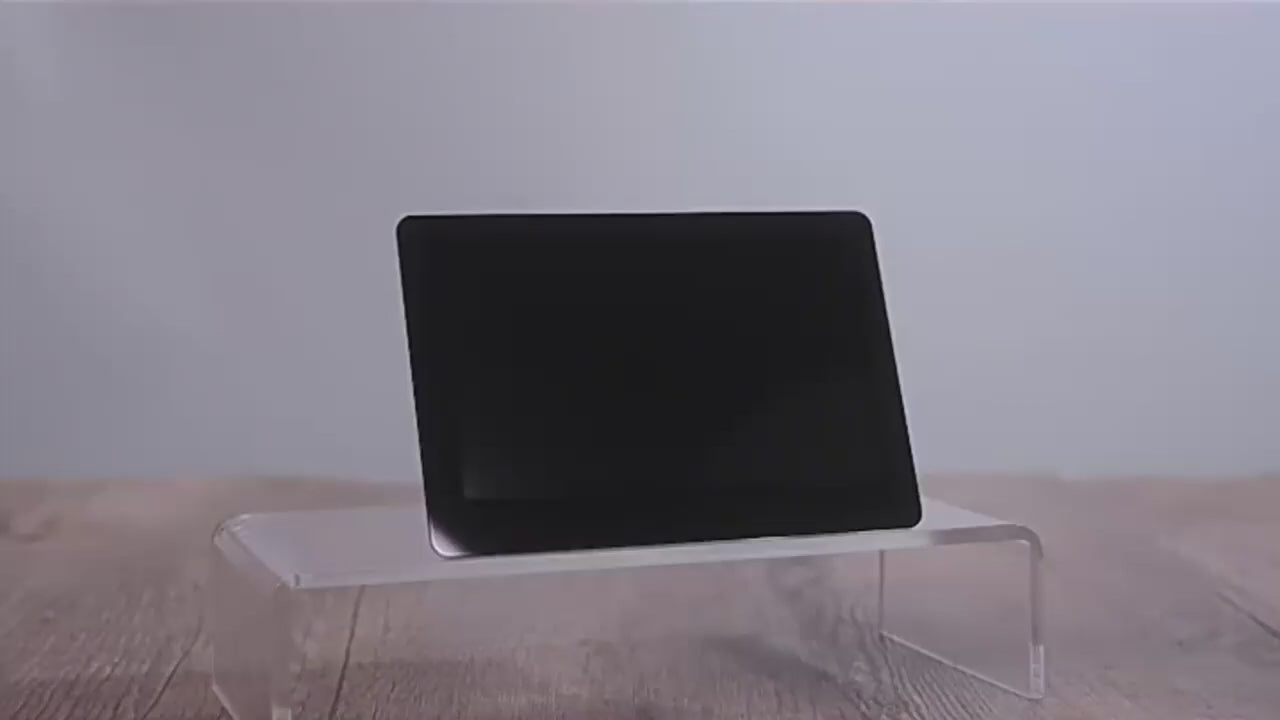

Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board With Case

Build interactive embedded projects and smart control systems with the Waveshare ESP32-S3 4.3-Inch Touch LCD Development Board. Powered by a dual-core Xtensa 32-bit LX7 processor running at up to 240MHz, this versatile development platform combines a high-resolution capacitive touchscreen, wireless connectivity and a range of industrial communication interfaces.

Featuring a 4.3-inch 800×480 LCD with 65K colours, 5-point capacitive touch and built-in Wi-Fi and Bluetooth 5 LE, it is ideal for developing graphical user interfaces, industrial control panels, smart home applications and HMI systems using LVGL.

The board also integrates CAN, RS485, I2C, Micro SD storage and optocoupler-isolated digital inputs and outputs, providing flexible connectivity for automation and embedded control projects.

Key Features

1. Powerful ESP32-S3 Dual-Core Processor – Built around the Xtensa 32-bit LX7 dual-core processor with a clock frequency of up to 240MHz, delivering efficient processing for embedded applications and graphical interfaces.

2. 4.3-Inch High-Resolution Touchscreen – Integrated 800×480 LCD with 65K colours provides a clear display for interactive menus, dashboards, monitoring screens and control interfaces.

3. 5-Point Capacitive Touch – Supports multi-touch operation with up to five simultaneous touch points, I2C communication and interrupt functionality for responsive user interaction.

4. Wi-Fi and Bluetooth 5 LE Connectivity – Built-in 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 Low Energy support wireless communication with compatible devices and networks. An onboard antenna is included.

5. Integrated Memory Resources – Features 512KB SRAM, 384KB ROM, 16MB Flash and 8MB PSRAM to support application code, graphics and data processing.

6. Wide-Voltage Power Input – Onboard voltage regulator supports a 7–36V DC power supply, making the board suitable for a variety of embedded and industrial environments.

7. Real-Time Clock (RTC) – Integrated RTC chip with a rechargeable backup battery helps retain time information when the main power supply is disconnected.

8. Industrial Communication Interfaces – Equipped with CAN, RS485 and I2C interfaces, providing connectivity options for industrial equipment, sensors and automation systems.

9. Optocoupler-Isolated Digital Inputs – Supports passive and active switch inputs. Active input supports both positive and negative voltage configurations, helping provide electrical isolation for connected control signals.

10. Optocoupler-Isolated Digital Outputs – Isolated output design provides enhanced compatibility with external control circuits, with a maximum sink current of up to 450mA, according to the manufacturer's specification.

11. Micro SD Card Support – Integrated Micro SD card slot allows additional storage for data logging, configuration files and application resources.

12. Low-Power Management – Supports flexible clock configuration, independent module power management and different low-power operating modes for energy-conscious applications.

13. External LED Indicators – Convenient LED indicators allow users to check power and battery charging status.

14. Protective Case Included – Supplied with a protective enclosure for a more convenient and organised development setup.

Technical Specifications

Dimensions and Weight

Applications

• Industrial HMI (Human-Machine Interface) development

• LVGL graphical user interface projects

• Smart home control panels

• Industrial automation and monitoring

• Embedded IoT applications

• CAN and RS485 communication projects

• Sensor monitoring and data acquisition

• Custom touchscreen controllers

• Equipment status displays and control terminals

Package Contents

• 1 × Waveshare ESP32-S3 4.3-Inch Touch LCD Development Board

• 1 × Protective Case

Note: Power supply, cables, Micro SD card and other accessories are not included unless specified in the package options. Please check the selected version before ordering. For external connections, verify voltage levels, wiring and current requirements against the manufacturer's hardware documentation. The stated 450mA output figure is a maximum specification and should not be assumed suitable for every load or continuous operating condition.
