1. Equipped with Xtensa? 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth? 5 (LE)
3. Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM

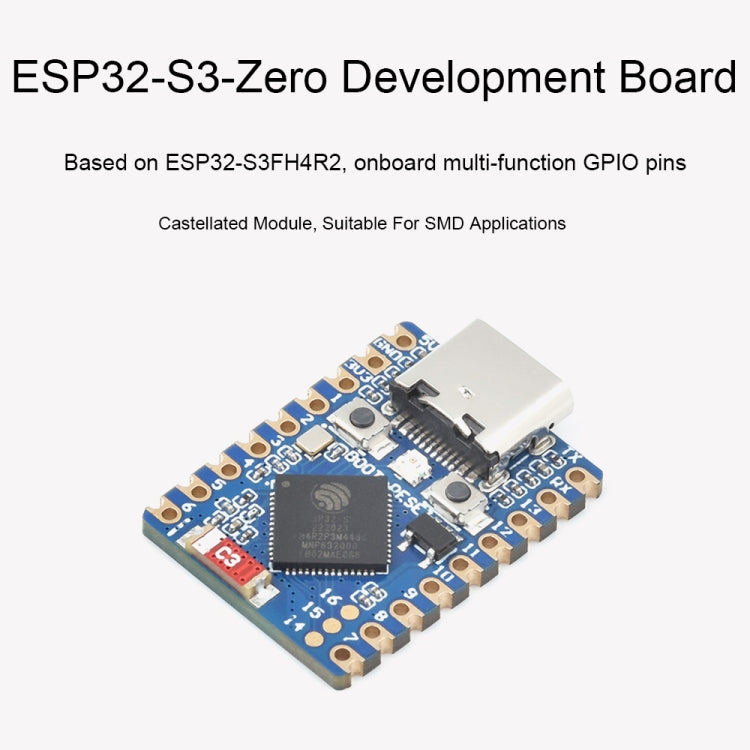

4. Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
5. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

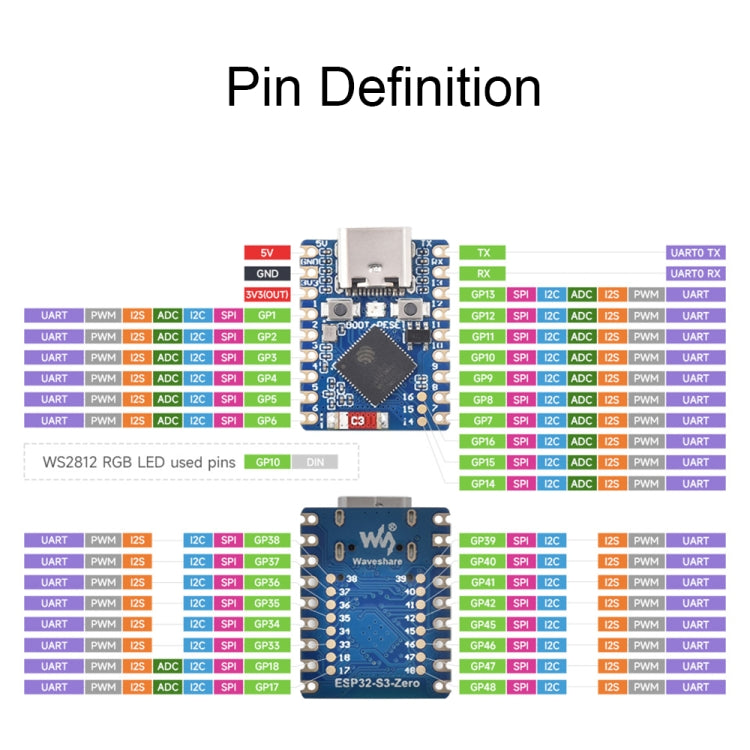

6. Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
7. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

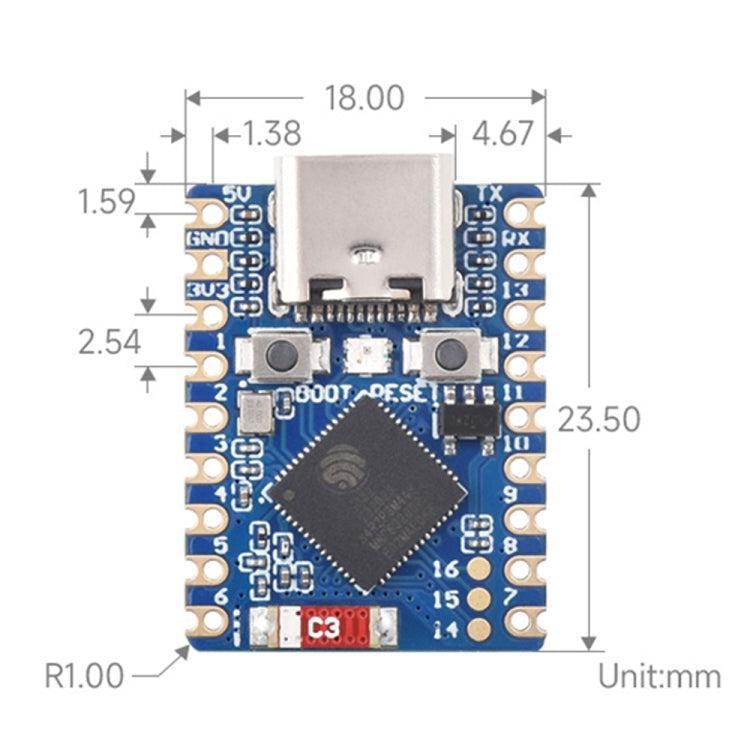

8. Product size: 18 x 23.5mm
9. Weight: 2g, 3g
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
6cm * 5cm * 2cm / 2.36inch * 1.97inch * 0.79inch
|
| Carton Weight |
4.10kgs / 9.04lb
|
| Carton Size |
32cm * 32cm * 32cm / 12.6inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 813 cartons * 300 pcs = 243900 pcs
40HQ: 1889 cartons * 300 pcs = 566700 pcs
|
|
