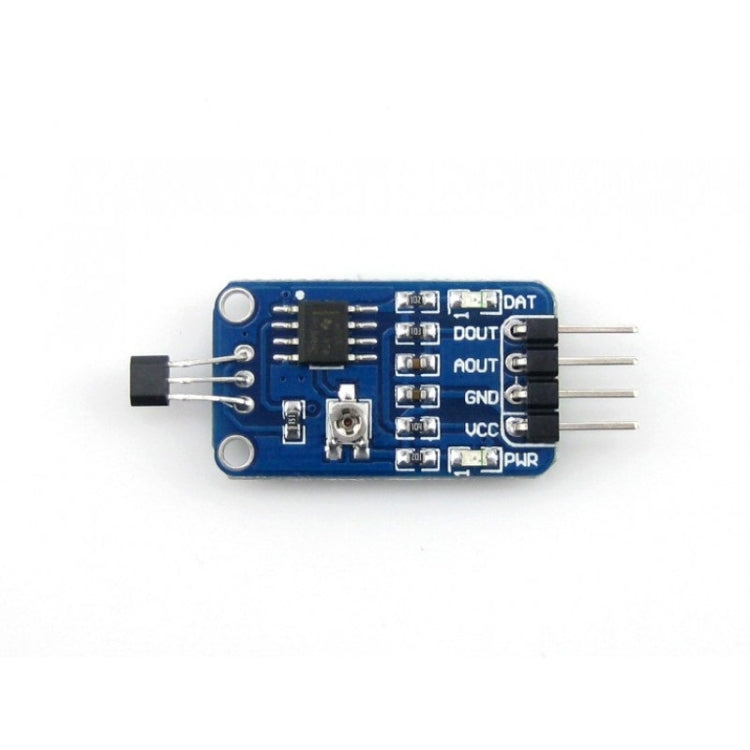

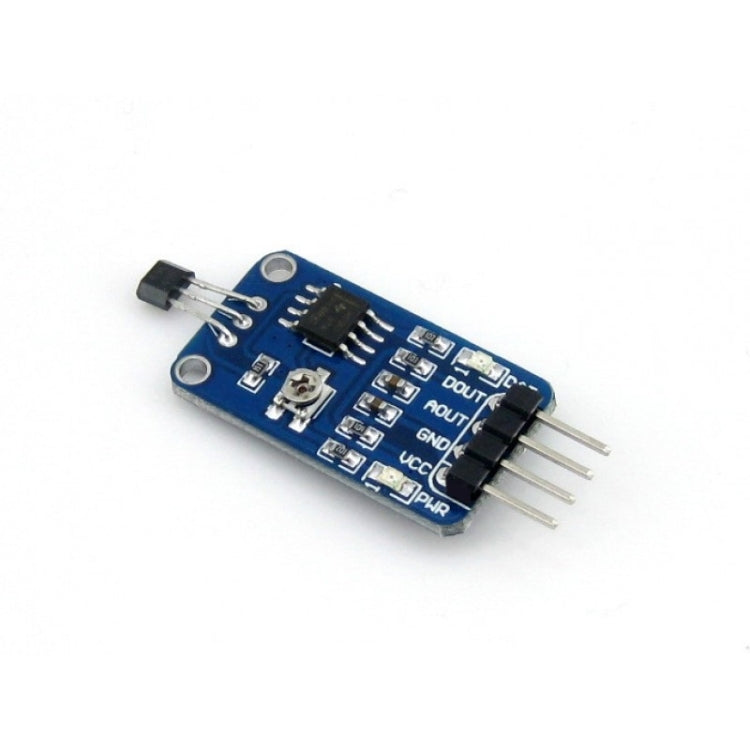

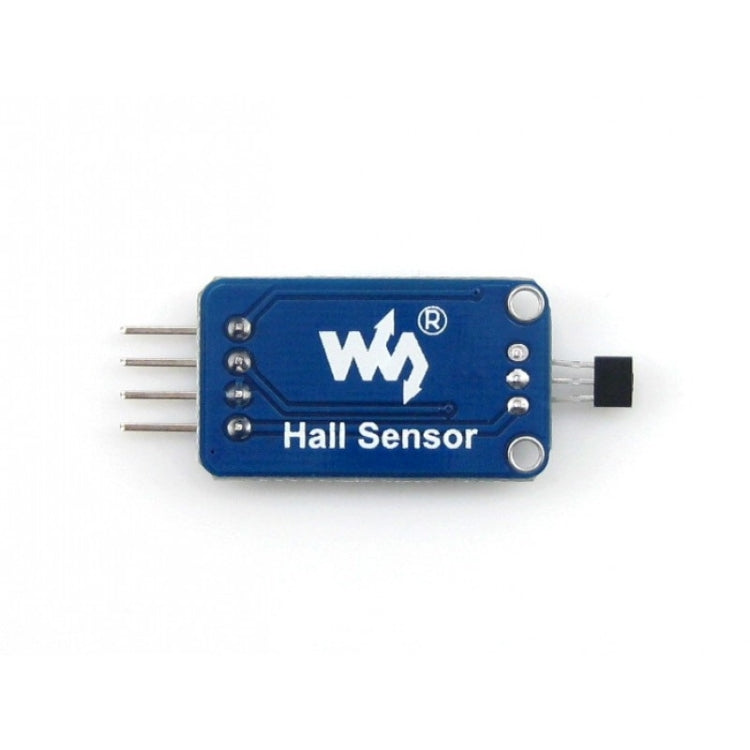

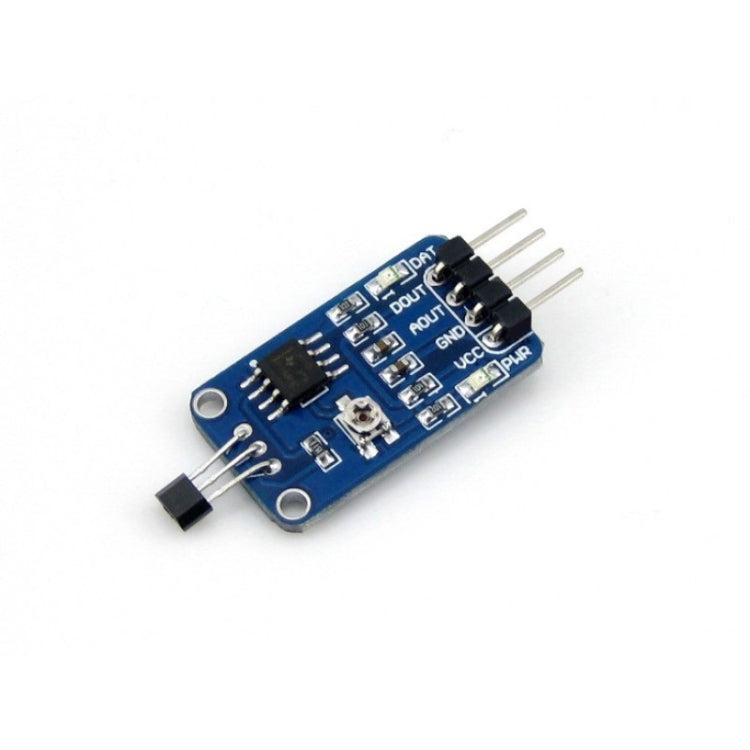

Overview
1. 49E hall sensor
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 2.3V ~ 5.3V
2. Dimension: 27.0mm * 15.5mm
3. Mounting holes size: 2.0mm
Applications
1. Motor speed measurement
2. Object position detection
3. Smart car
4. Electronic bricks
How to Use
In the case of working with a MCU:
1. VCC : 2.3V ~ 5.3V
2. GND: Power supply ground
3. AOUT : MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.02lb
|
| One Package Size |
6cm * 3cm * 1cm / 2.36inch * 1.18inch * 0.39inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch
|
| Loading Container |
20GP: 284 cartons * 5200 pcs = 1476800 pcs
40HQ: 661 cartons * 5200 pcs = 3437200 pcs
|
|
