1. Solar cell type: Polysilicon
2. Power: 10 Wp
3. Output power tolerance: +/-3%
4. Conversion efficiency: Greater than 20%
5. Operating voltage: 17.6V
6. Operating current: 0.57A
7. Open circuit voltage: 21.6V
8. Short circuit current: 0.61A
9. Cell quantity: 36 (4x9)
10. Standard system voltage: 1000V
11. Operating temperature: -40 degree C ~ +85 degree C
12. Pressure on panel:30m/s(200kg/sq.m) (Max)
13. Cable length:90 cm

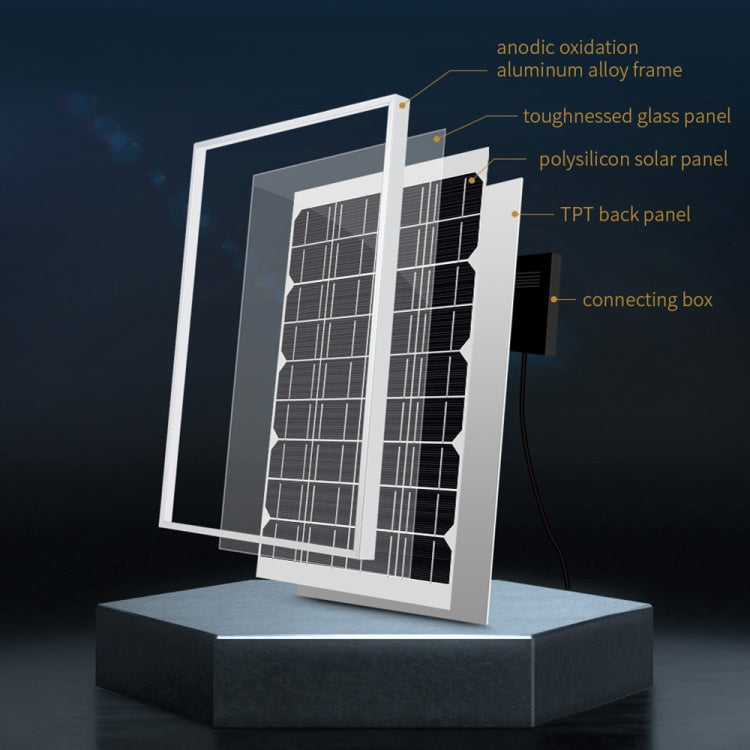

14. Frame material: Anodic oxidation aluminum alloy

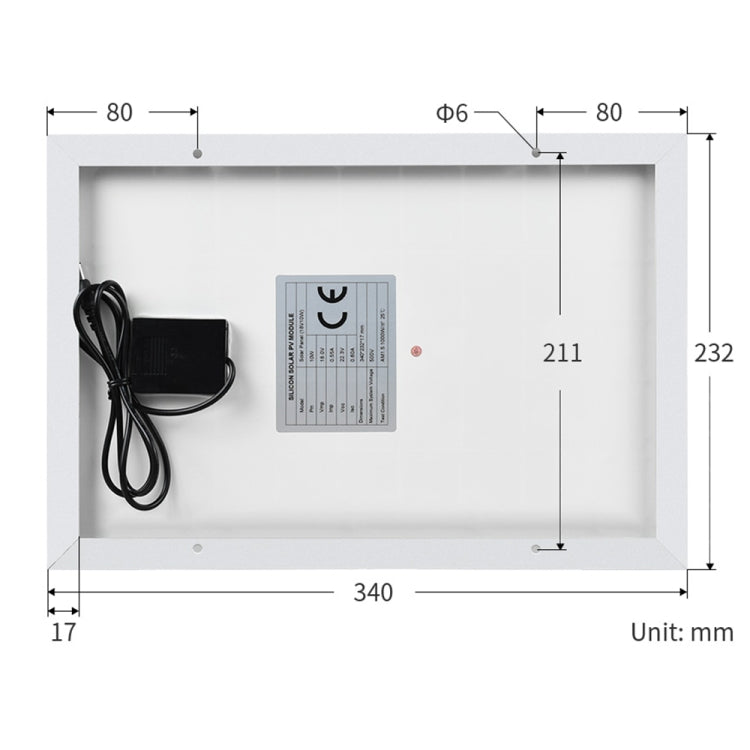

15. Dimensions: 340 x 232 x 17 mm
19. Weight:0.935 kg
Specification:
|
Package Weight
|
| One Package Weight |
0.97kgs / 2.13lb
|
| One Package Size |
25cm * 35cm * 4cm / 9.84inch * 13.78inch * 1.57inch
|
| Carton Weight |
19.50kgs / 42.99lb
|
| Carton Size |
52cm * 37cm * 42cm / 20.47inch * 14.57inch * 16.54inch
|
| Loading Container |
20GP: 330 cartons * 20 pcs = 6600 pcs
40HQ: 766 cartons * 20 pcs = 15320 pcs
|
|
