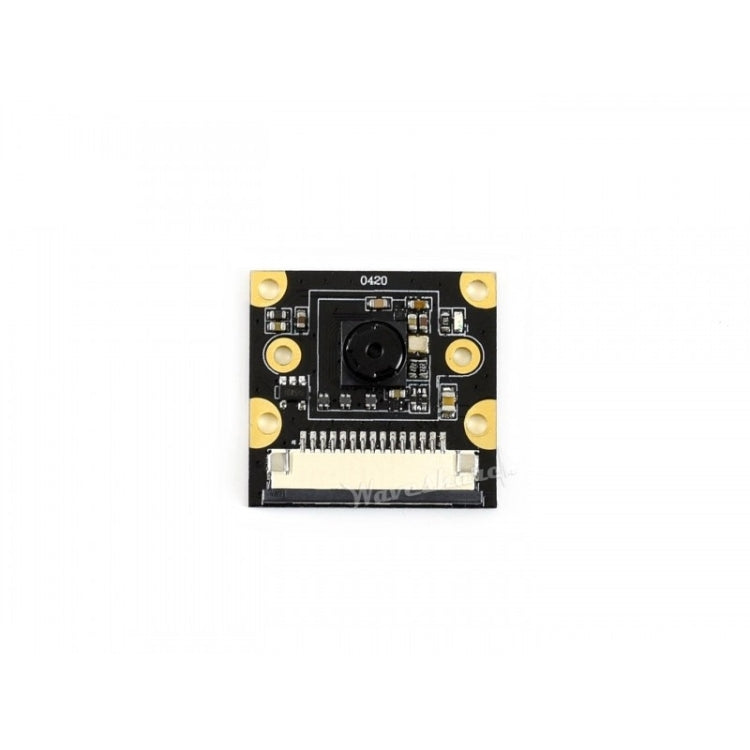

Features

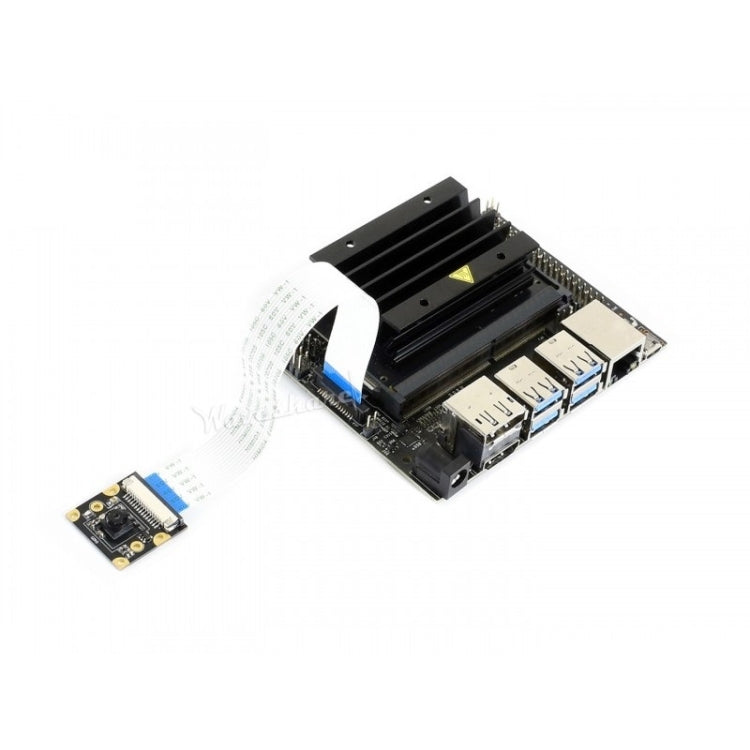

1. Support NVIDIA Jetson Nano Developer Kit
2. 8 Megapixels
3. Sensor: IMX219
4. Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm x 6.5mm

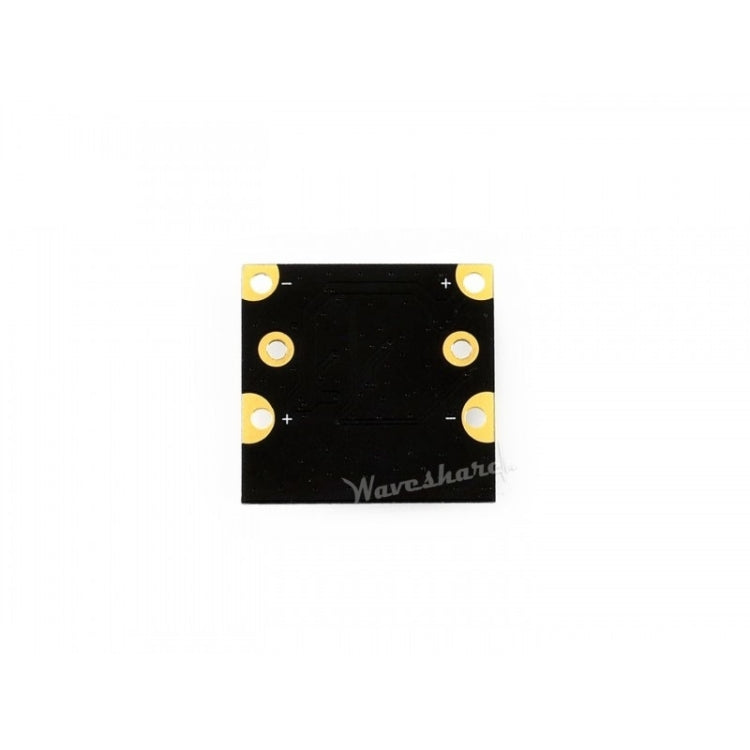

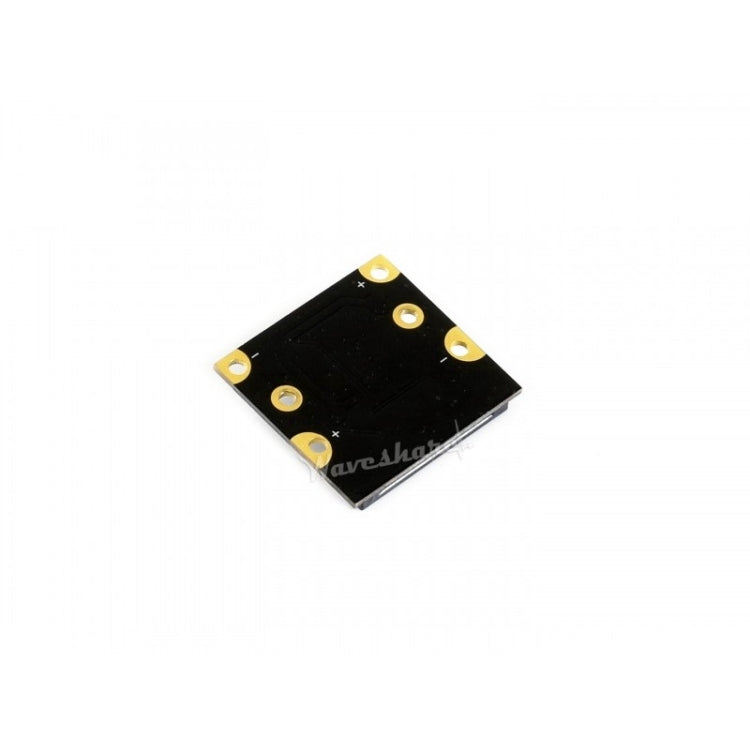

5. 4 screw holes
6. Used for attachment
7. Provide 3.3V power output
8. Support connecting infrared LED and/or fill flash LED
9. Dimension: 25mm x 24mm
10. Weight: 12g
Packing List:
1. IMX219-77 Camera x1

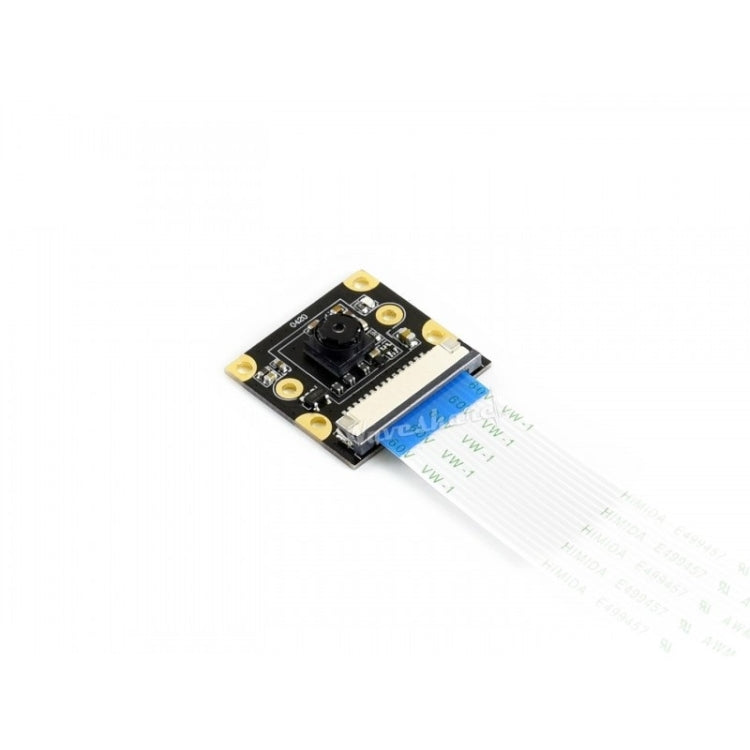

2. 15-pin FFC (opposite sides contact) x1
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
3cm * 2cm * 1cm / 1.18inch * 0.79inch * 0.39inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 16000 pcs = 4432000 pcs
40HQ: 644 cartons * 16000 pcs = 10304000 pcs
|
|
