Features

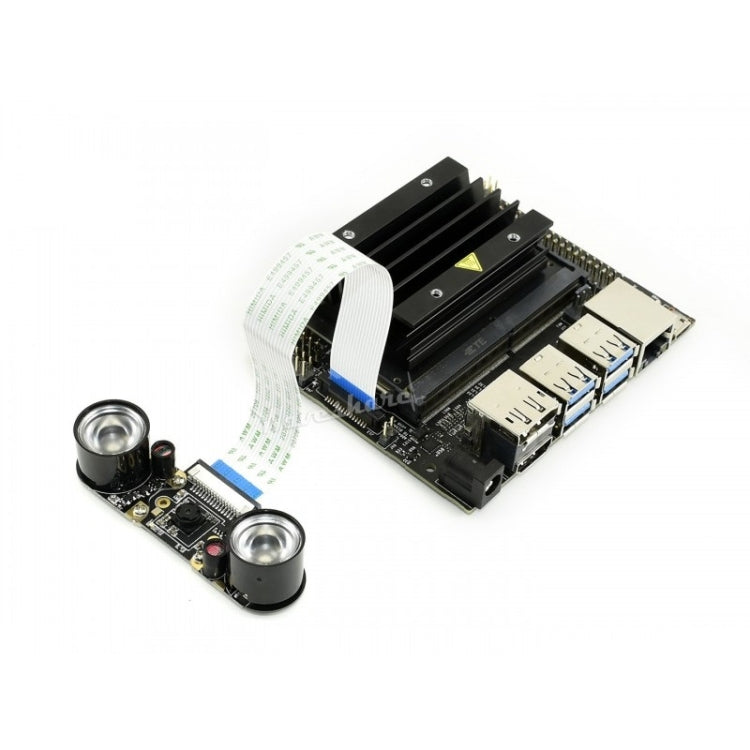

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm × 6.5mm
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12. Weight: 31g
Packing List
1. IMX219-77IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.08lb
|
| One Package Size |
10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 36cm * 39cm / 23.62inch * 14.17inch * 15.35inch
|
| Loading Container |
20GP: 316 cartons * 468 pcs = 147888 pcs
40HQ: 734 cartons * 468 pcs = 343512 pcs
|
|
