Sensor:
1. Model: Sony IMX477
2. 12.3 megapixels: 4056 x 3040
3. CMOS diagonal length: 7.9 mm
4. Pixel size: 1.55 μm (H) x 1.55 μm (V)
5. Shutter type: Rolling shutter
Lens:
1. Aperture (F): 2.8
2. Focal Length (EFL): 2.7 mm
3. Field of View (FOV): 113 degrees (D)
4. Distortion: Less than -1.5%
Features:
1. Equipped with Sony IMX477 image sensor, it delivers high-resolution, clear images up to 12.3 MP with rich detail capture
2. Features a hardware-integrated IR-CUT switching mechanism that restores natural colors without color cast during the day; when paired with an infrared illuminator (not included), it supports night vision imaging to meet all-weather monitoring needs
3. Equipped with a 113-degree wide-angle lens and rolling shutter design, providing a wider field of view and imaging coverage in confined spaces

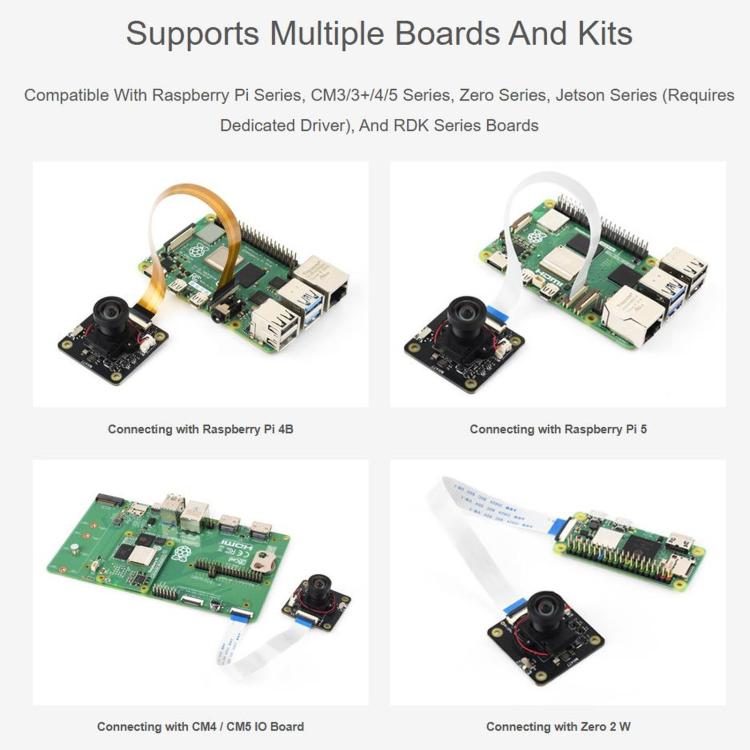

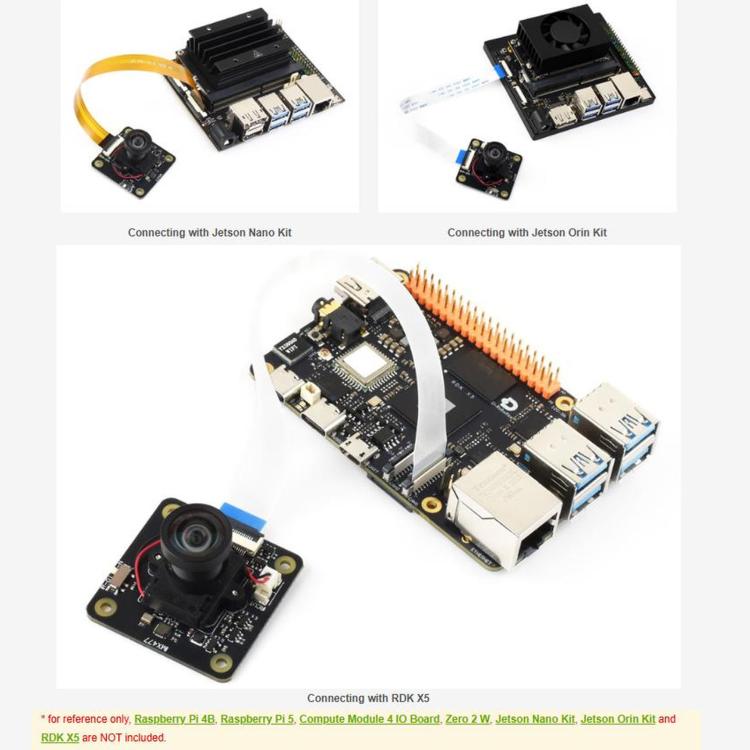

4. Compatible with Raspberry Pi series (e.g., 4B, 5, Zero 2 W, CM4/CM5), for NVIDIA Jetson series (driver support required), and open-source hardware development boards such as the RDK X5

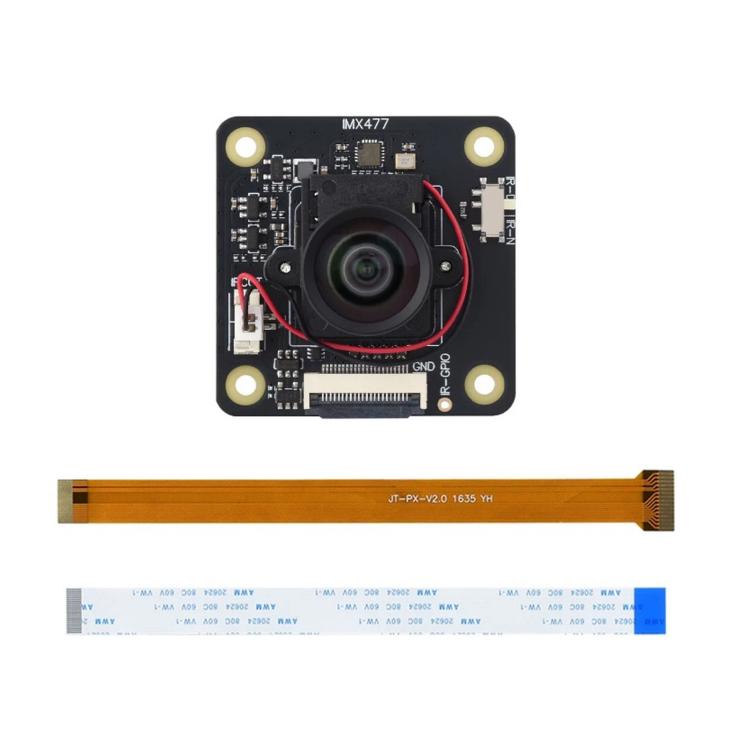

5. Includes two types of flexible FPC cables 15-pin to 22-pin and 22-pin for quick and easy connection to motherboards with different connector interfaces
6. Operating voltage: 3.3V
7. Application scenarios: AI applications such as facial recognition, road marking recognition, and license plate recognition

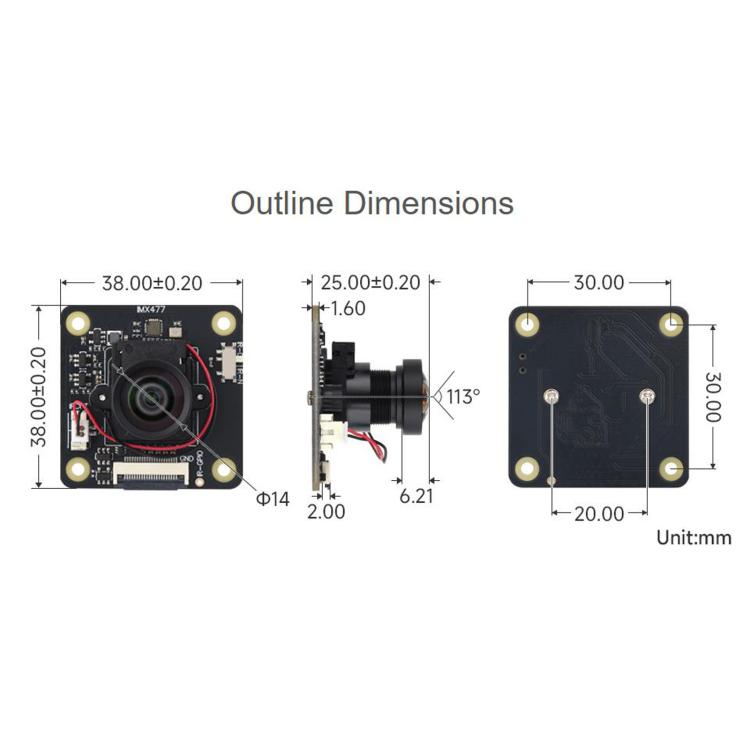

8. Dimensions: Approximately 3.8 x 2.5 cm
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
9cm * 6cm * 4cm / 3.54inch * 2.36inch * 1.57inch
|
| Carton Weight |
12.80kgs / 28.22lb
|
| Carton Size |
38cm * 32cm * 20cm / 14.96inch * 12.6inch * 7.87inch
|
| Loading Container |
20GP: 1096 cartons * 200 pcs = 219200 pcs
40HQ: 2545 cartons * 200 pcs = 509000 pcs
|
|
