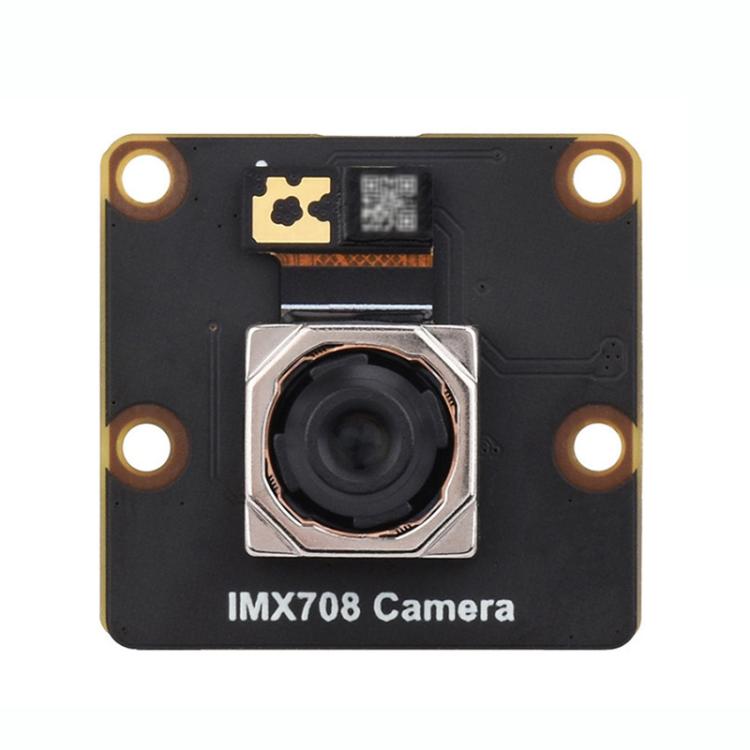

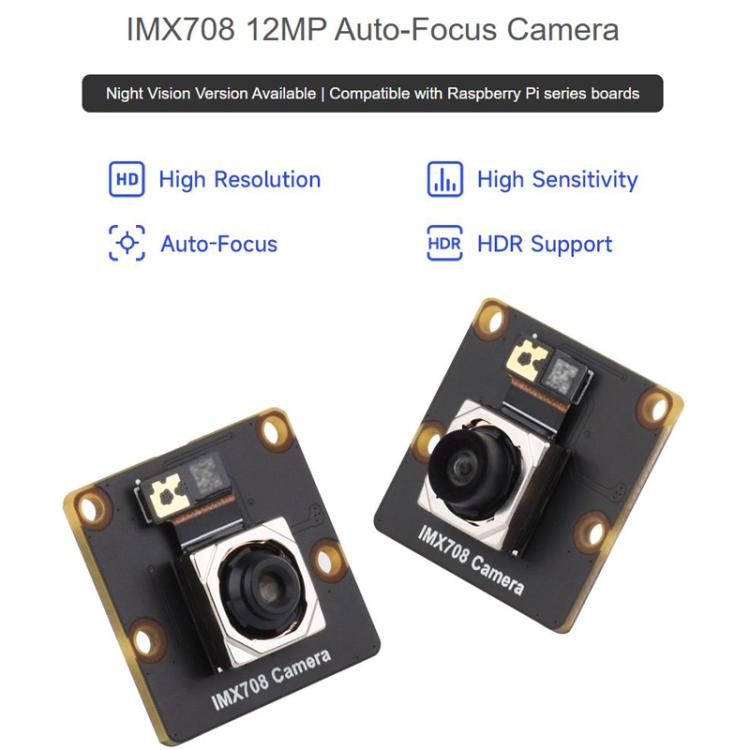

1. Sensor: Sony IMX708
2. Pixel: 11.9 MP (4608 x 2592)
3. Focus mode: I2C controller, support autofocus
4. CMOS size: 7.4mm
5. Diagonal field of view (FOV): 75/120 degrees
6. Focal length: 75 degrees: 4.74mm, 120 degrees: 2.75mm
7. Aperture: 75 degrees: F1.8, 120 degrees: F2.2

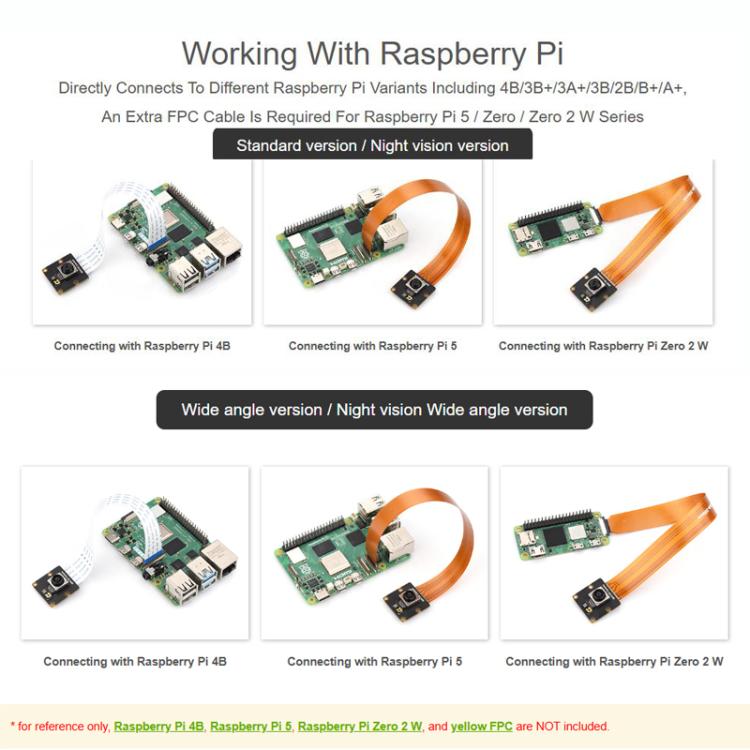

8. Support equipment: compatible with Raspberry Pi all motherboard models (access to Raspberry Pi 5 and Zero series motherboards need to provide their own adapter cable)
9. Description: night vision function needs to be used with infrared fill light (not included)
Features:
1. Compatible with Raspberry Pi series motherboards

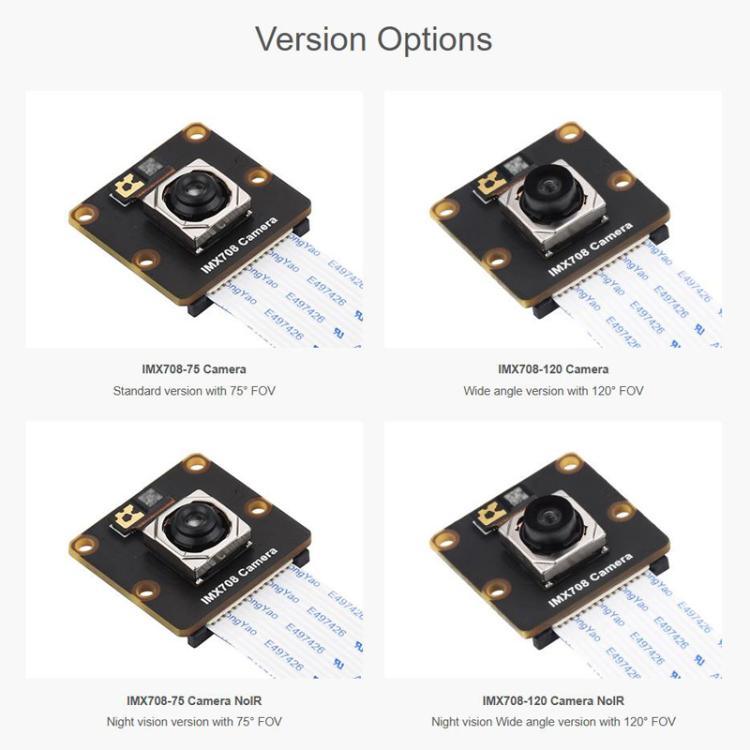

2. NolR is the night vision version, remove the IR filter, can be used with IR fill light to realize the night vision function, the night vision version of the image will be reddish in the daytime use
3. 12 megapixels, support high dynamic range (HDR), better photo quality
4. Support autofocus, focus control is more free
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
10.60kgs / 23.37lb
|
| Carton Size |
50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 438 cartons * 320 pcs = 140160 pcs
40HQ: 1018 cartons * 320 pcs = 325760 pcs
|
|
