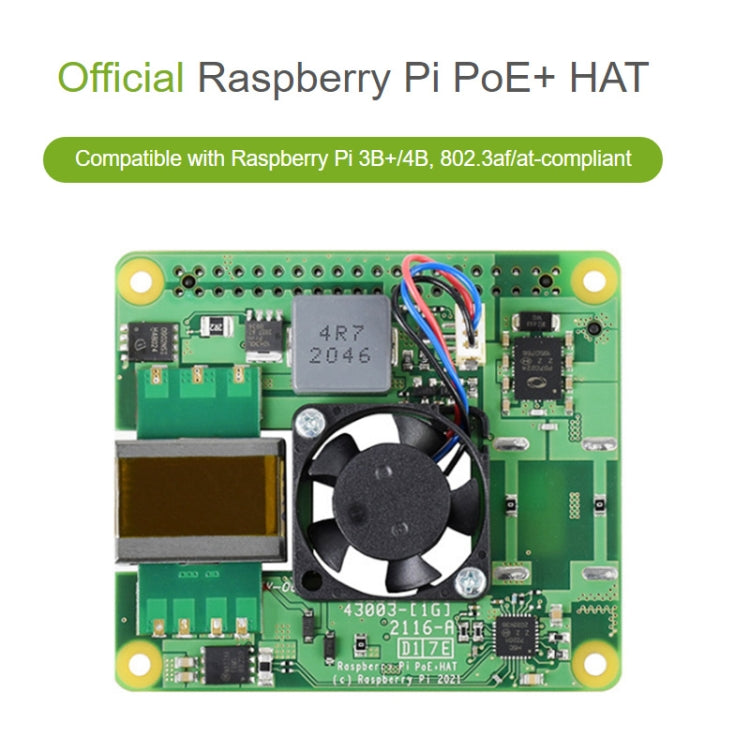

Product Overview1. The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.

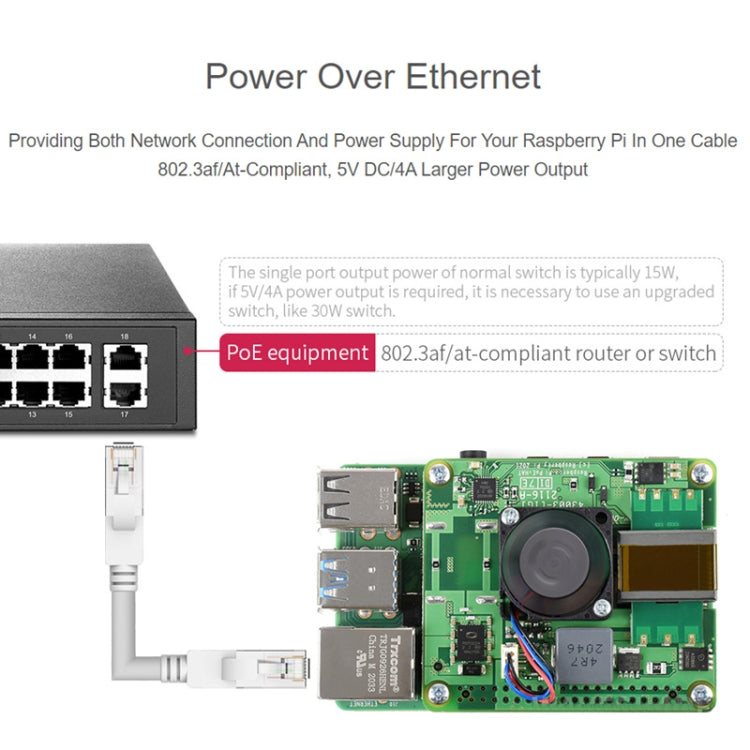

2. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Specification1. PoE standard: 802.3af/at
2. Input voltage: 37-57 V DC, Class 4 device
3. Output voltage/current: 5V DC/4A
4. Current sense: Yes
5. Transformer design: Planar

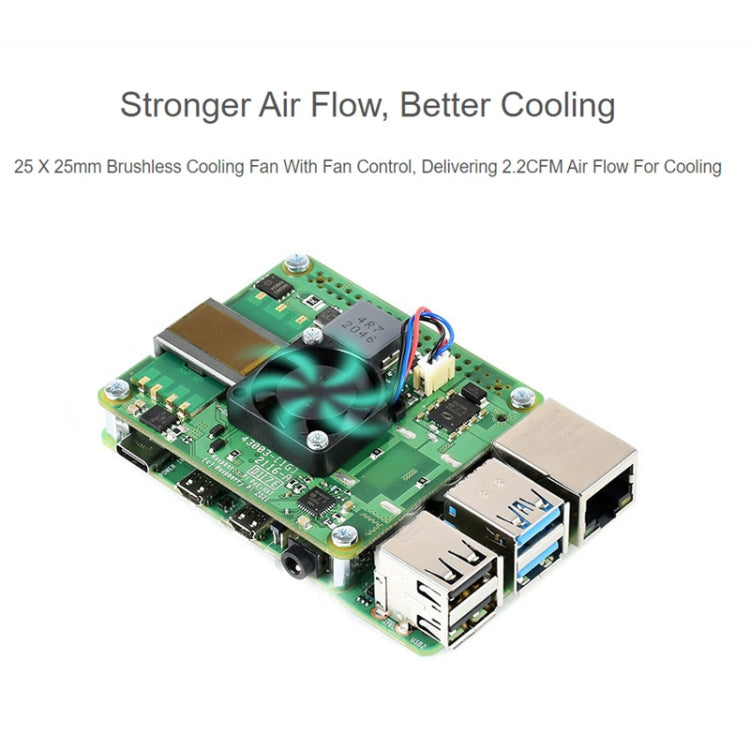

6. Fan: Controllable brushless cooling fan, delivering 2.2 CFM for processor cooling
7. Fan size: 25 x 25mm
8. Feature: Fully isolated switched-mode power supply

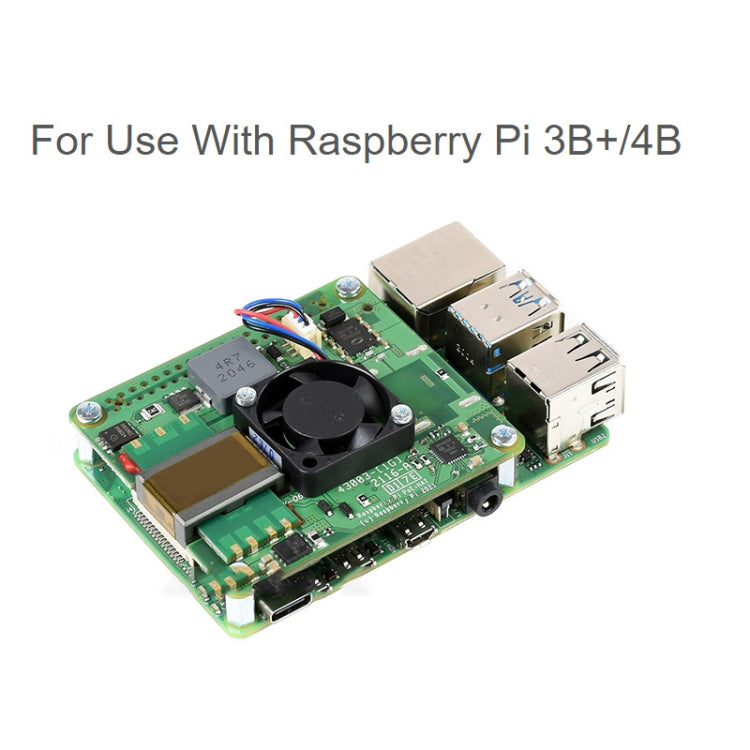

9. Compatible with: Raspberry Pi 3B+/4B
Package List1. Raspberry Pi PoE+ HAT x1
2. Standoffs pack x1
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.17lb
|
| One Package Size |
15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 566 cartons * 200 pcs = 113200 pcs
40HQ: 1314 cartons * 200 pcs = 262800 pcs
|
|
