1. Pixel: 64 x 32=2048 dots
2. Pitch: 2.5mm
3. Pixel format: 1R1G1B
4. Viewing angle: greater than 140 degrees
5. Control mode: synchronous
6. Drive: 1/16 scan

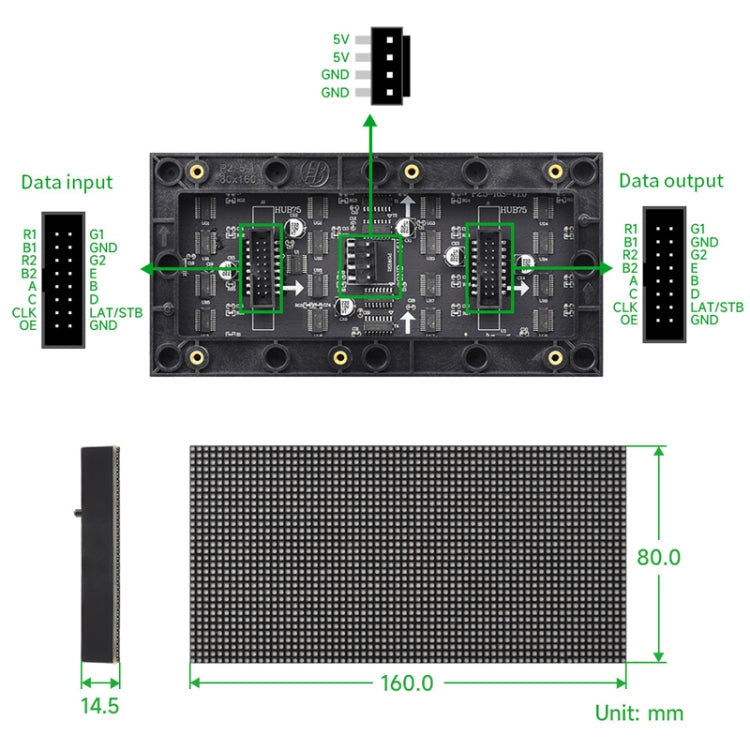

7. Connector: HUB75
8. Power supply: V / 2.5A (VH4 connector input)
9. Power: within 12W
10. Size: 16 x 8cm
Features:

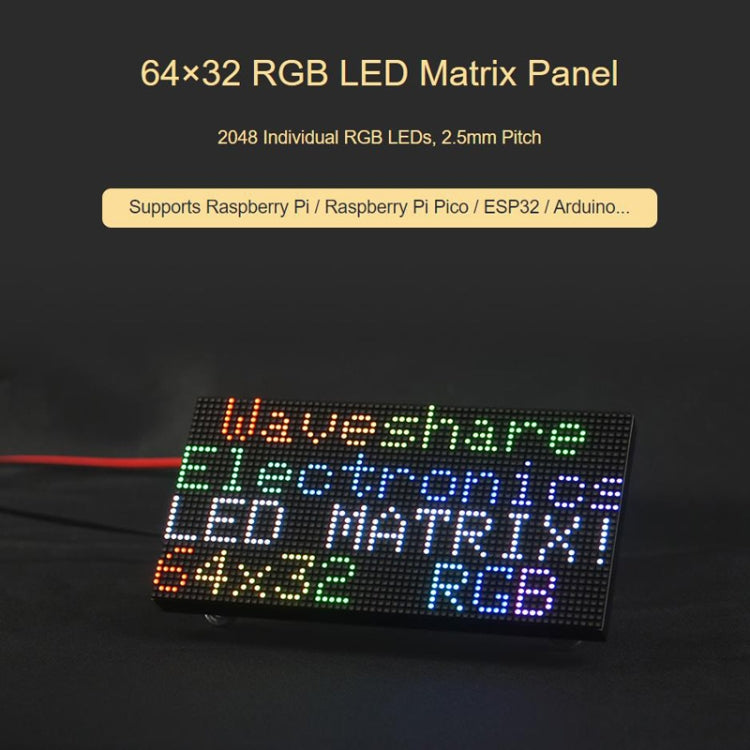

1. 2048 independent RGB led, full color display, adjustable brightness
2. 64x32 pixels, 2.5mm pitch, allows displaying text, color images or animations
3. 160x80mm size, moderate size, suitable for DIY desktop display or wall mount display
4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support
5. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
20cm * 10cm * 2cm / 7.87inch * 3.94inch * 0.79inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 74 pcs = 13098 pcs
40HQ: 412 cartons * 74 pcs = 30488 pcs
|
|
