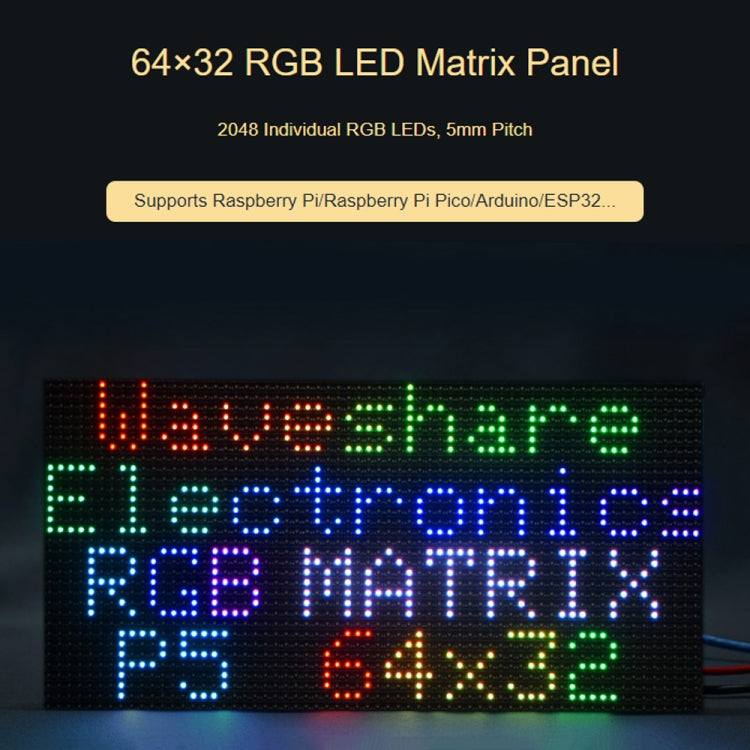

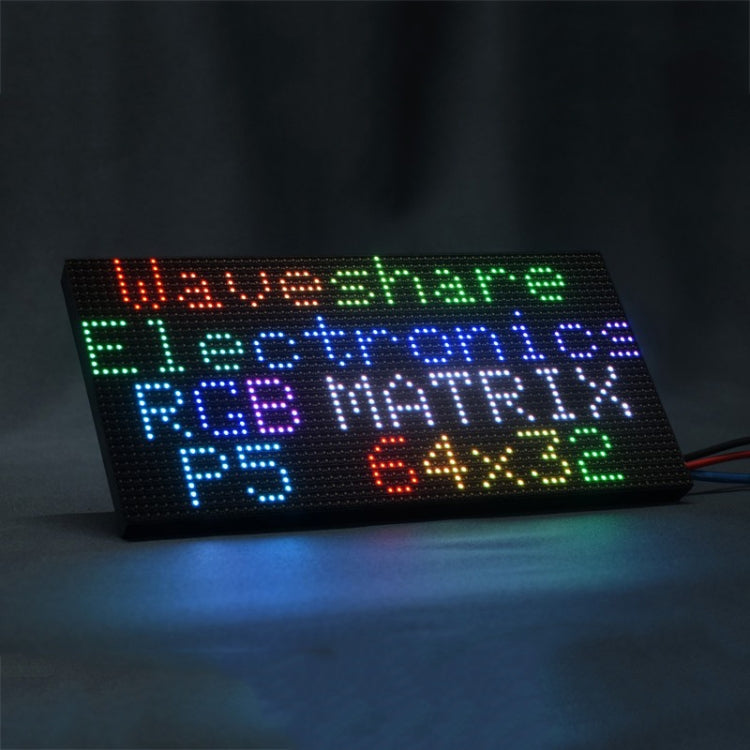

Features:
1. Using high-brightness 2048 RGB LED beads, full-color display, adjustable brightness
2. Can display text, color pictures or animations
3. A version using flexible PCB material is available, which can be bent appropriately and is suitable for some arc-shaped surface displays such as cylinders and spheres.

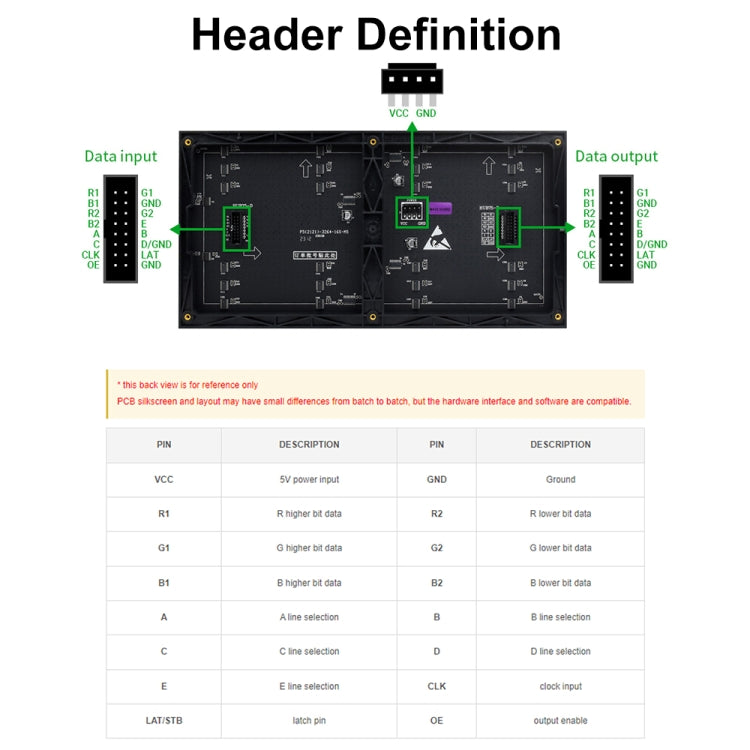

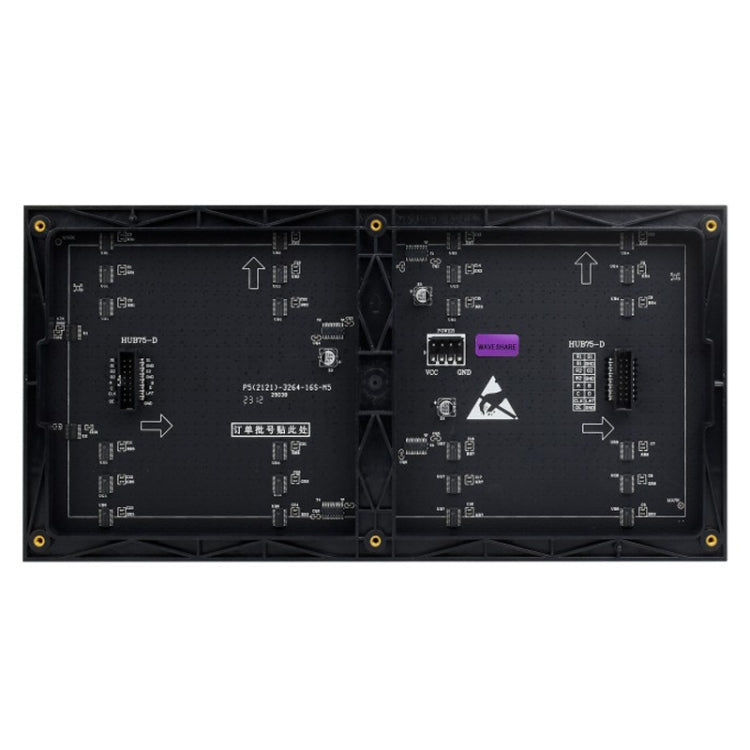

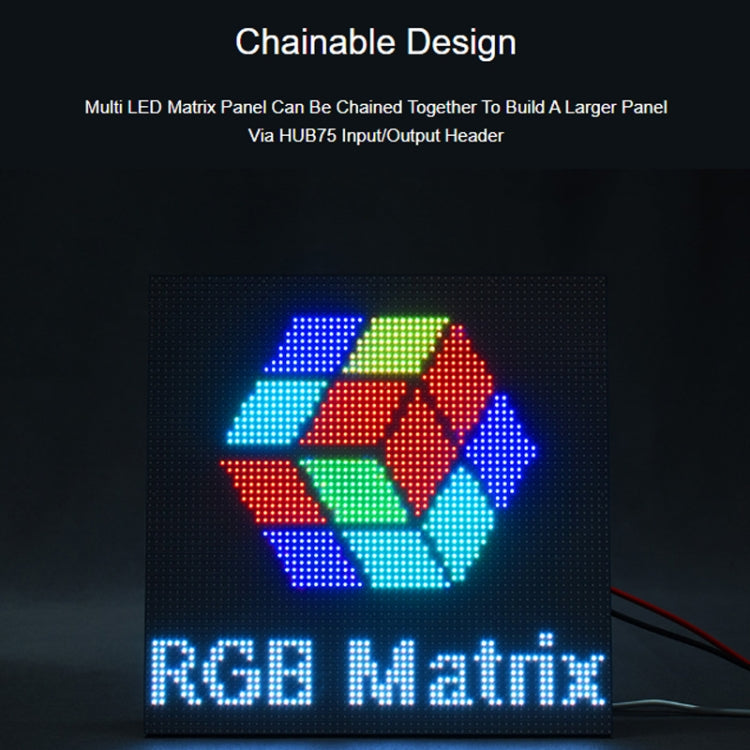

4. There are two HUB75 interfaces onboard, one input is used to connect to the controller; one output can be cascaded to multiple screens.
5. Provide open source information tutorials (Raspberry Pi/Pico/ESP32/Arduino sample programs, etc.)
Product parameters:
1. Pixel: 64x32=2048 DOTS
2. Point pitch: 5mm
3. Pixel format: 1R1G1B
4. Viewing angle: greater than or equal to 140°
5. Control type: synchronization
6. Driving mode: 1/16 scan
7. Connector: HUB75
8. Power supply: 5V/4A (VH4 head input)
9. Power: 20W

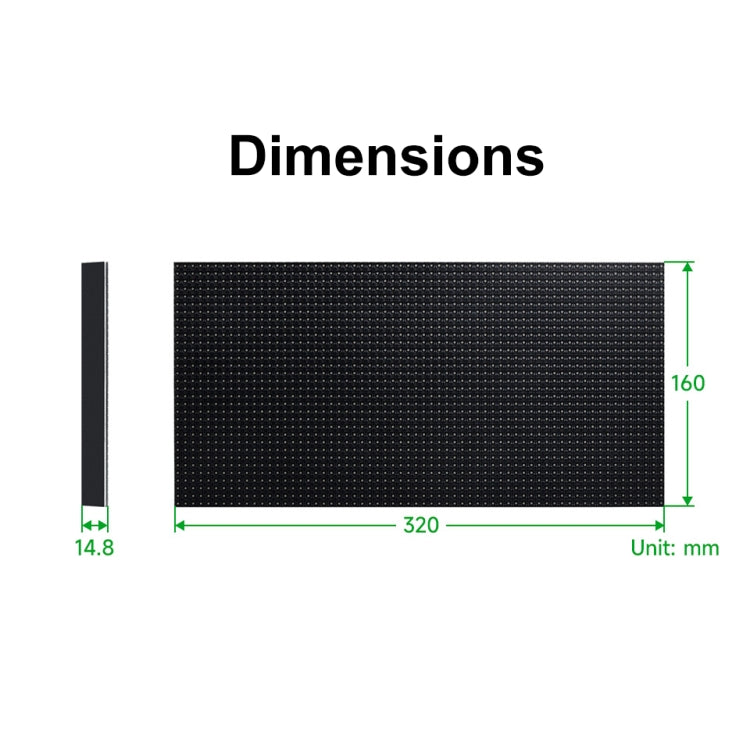

10. Product size: 320 x 160 x 14.8mm
11. Weight: 474 grams

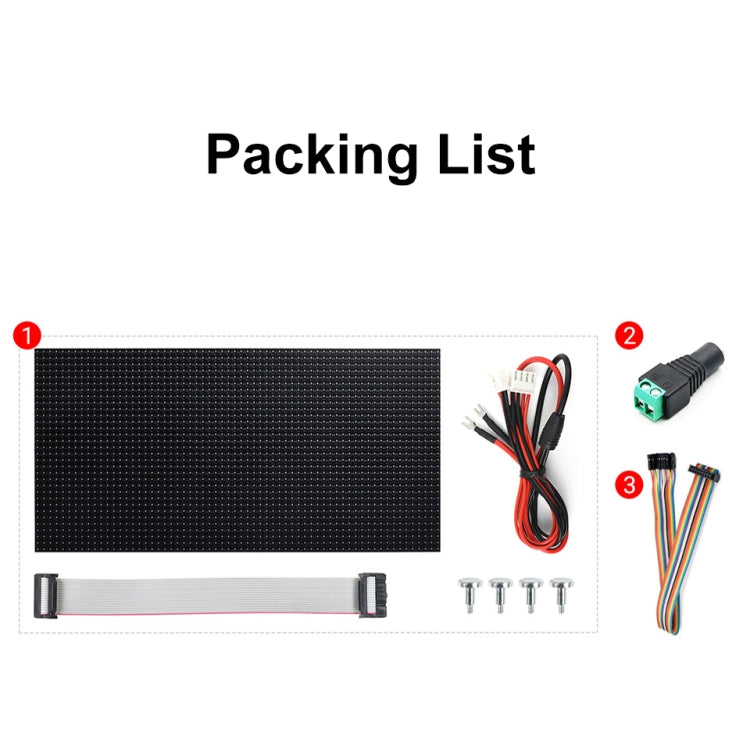

Packing list:
-RGB dot matrix screen x 1
-Power adapter x 1
-Flat wire x 1
-Loose thread x 1
-Screws x 4
-Dupont cord x 1
Specification:
|
Package Weight
|
| One Package Weight |
1.09kgs / 2.41lb
|
| One Package Size |
36cm * 20cm * 5cm / 14.17inch * 7.87inch * 1.97inch
|
| Carton Weight |
14.20kgs / 31.31lb
|
| Carton Size |
38cm * 42cm * 32cm / 14.96inch * 16.54inch * 12.6inch
|
| Loading Container |
20GP: 522 cartons * 12 pcs = 6264 pcs
40HQ: 1212 cartons * 12 pcs = 14544 pcs
|
|
