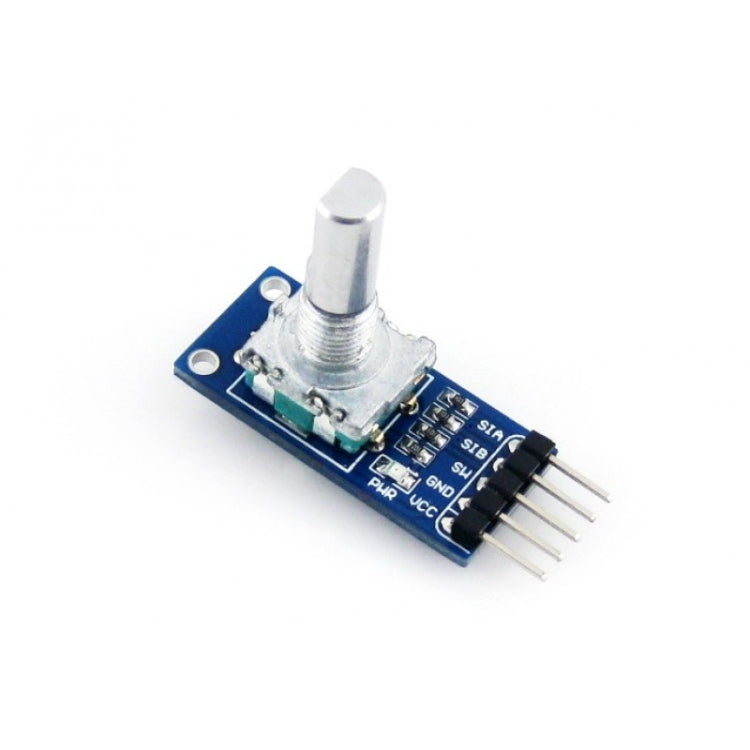

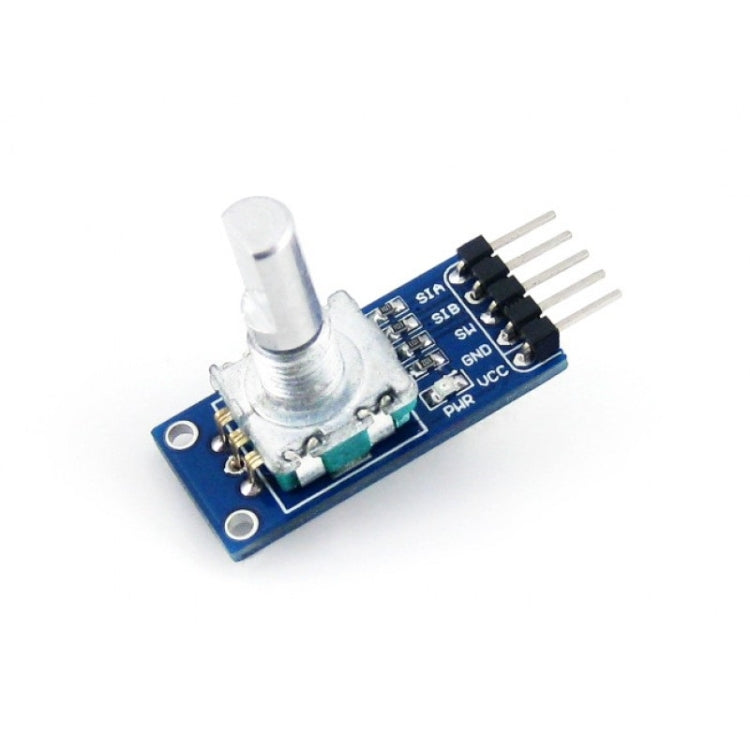

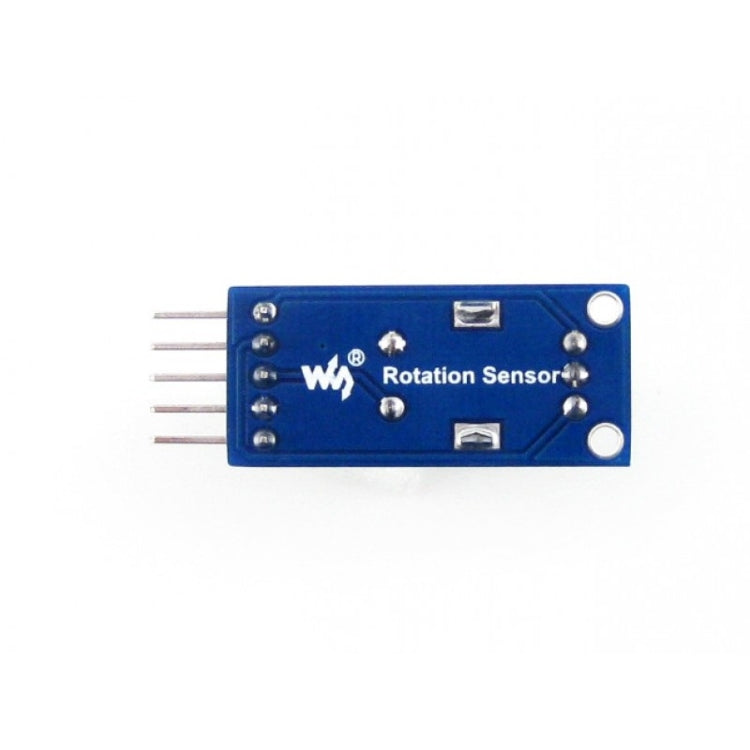

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps
Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls
How to Use

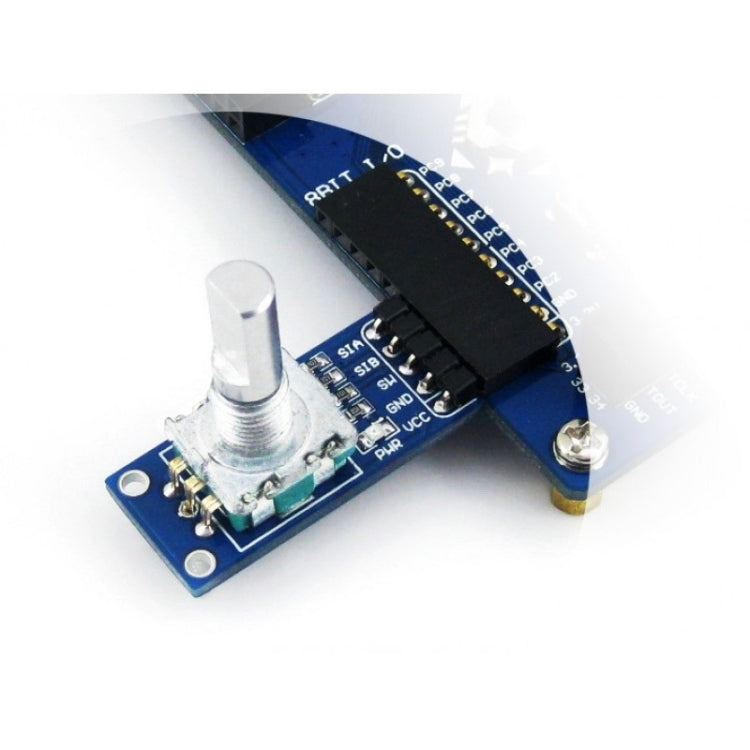

In the case of working with a MCU:

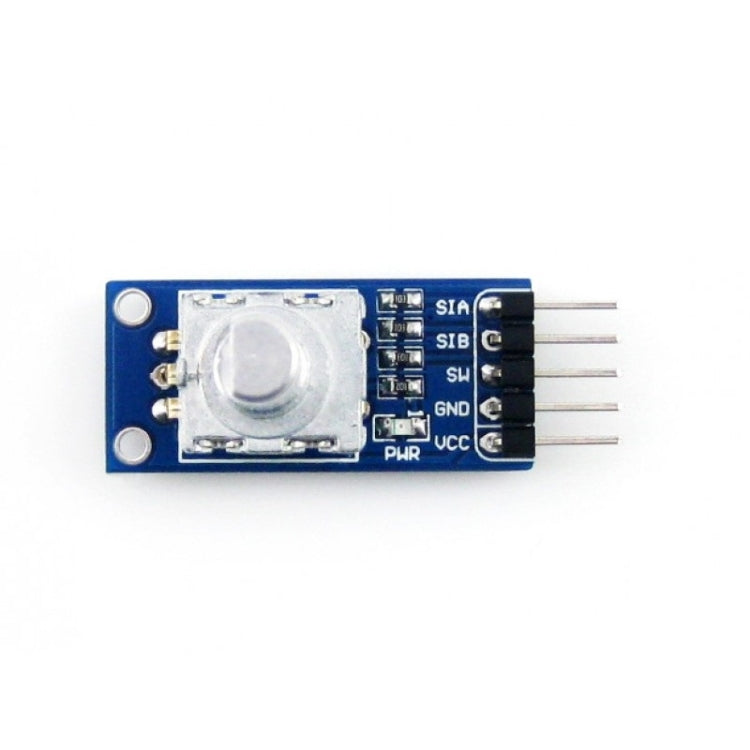

1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.04lb
|
| One Package Size |
5cm * 2cm * 1cm / 1.97inch * 0.79inch * 0.39inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 9600 pcs = 2659200 pcs
40HQ: 644 cartons * 9600 pcs = 6182400 pcs
|
|
