Features

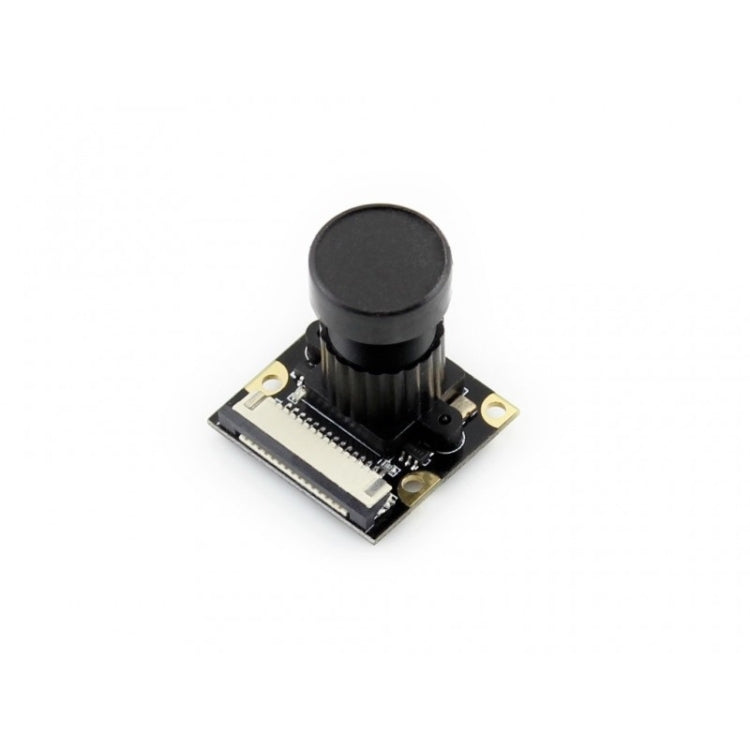

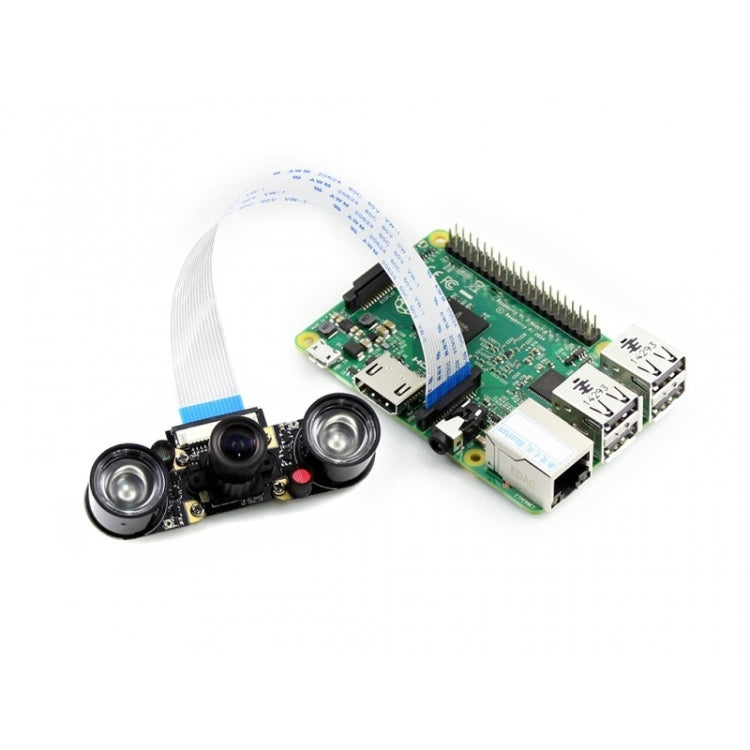

1. Raspberry Pi Night Vision Camera, supports all revisions of the Pi
2. 5 megapixel OV5647 sensor
3. Adjustable focus distance
4. Camera specifications
- CCD size: 1/4inch
- Aperture (F): 1.8
- Focal Length: 3.6mm
- Angle of View (diagonal) : 75 degree
- Sensor best resolution : 1080p
5. 4 screw holes
- Used for attachment
- Provide 3.3V power output
- Support connecting infrared LED and/or fill flash LED
6. Dimension : 25mm x 24mm
Package Contents

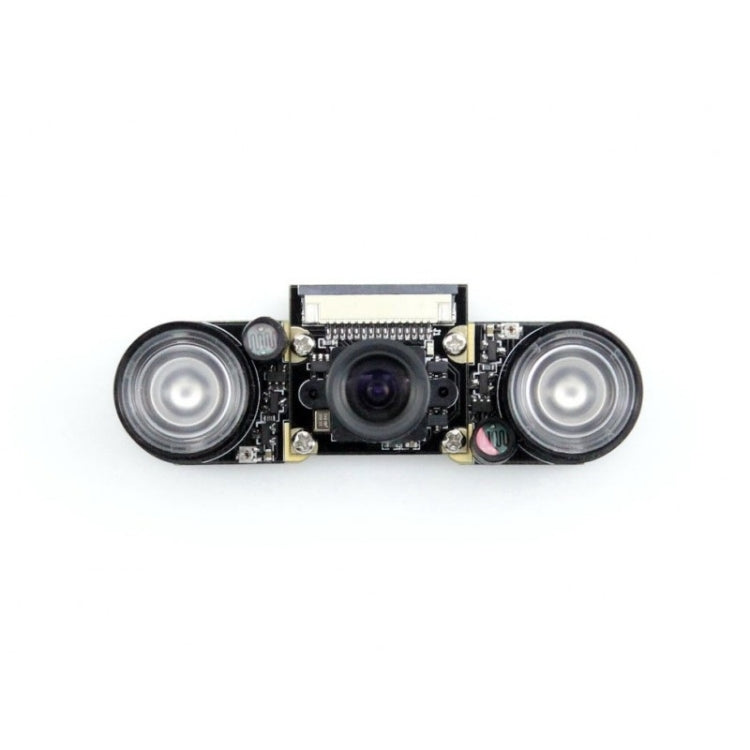

1. RPi Camera (F) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.13lb
|
| One Package Size |
8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch
|
| Loading Container |
20GP: 330 cartons * 840 pcs = 277200 pcs
40HQ: 767 cartons * 840 pcs = 644280 pcs
|
|
