Features

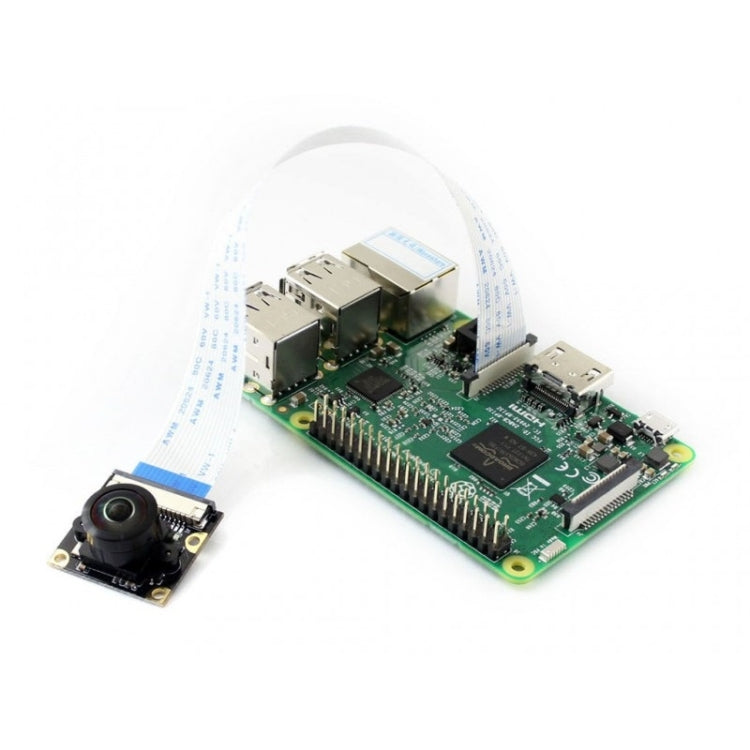

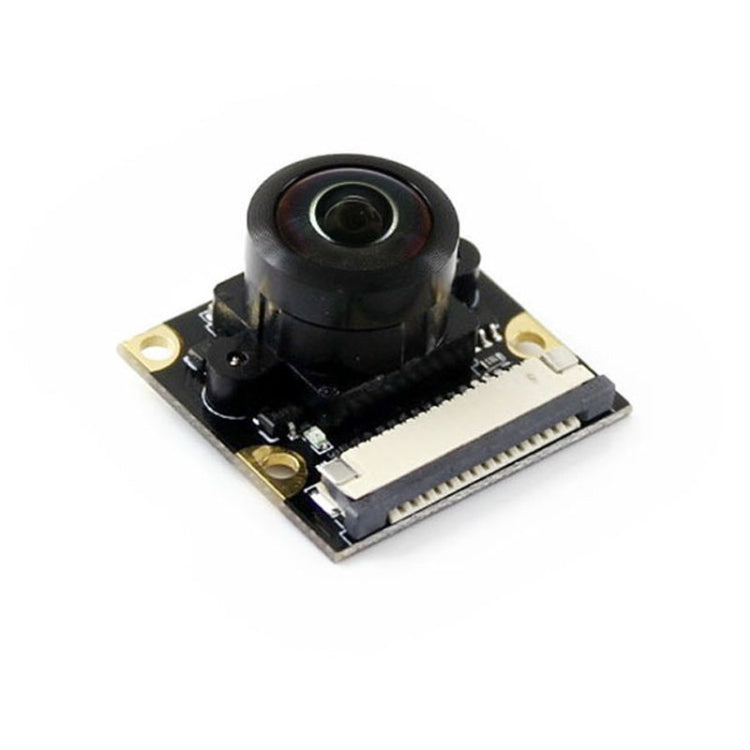

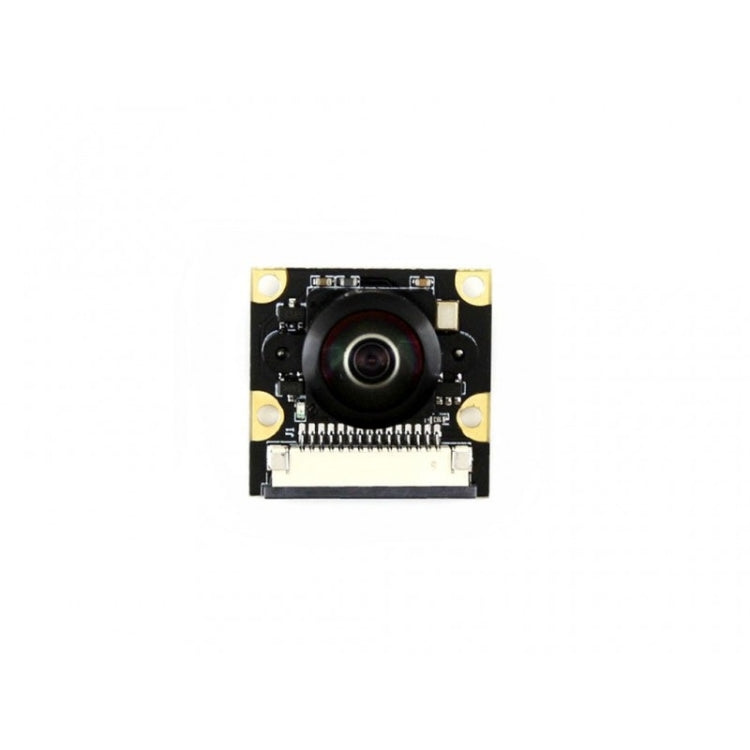

1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view
3. 5 megapixel OV5647 sensor
4. Adjustable focus distance
5. Camera specifications
- CCD size : 1/4inch
- Focal Length : 0.87mm
- Angle of View (diagonal) : 200 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p

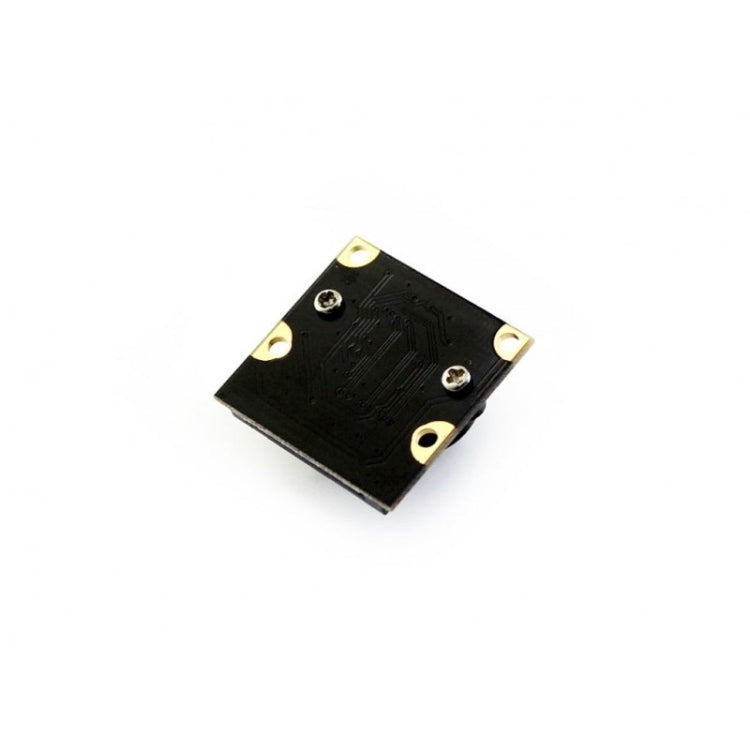

6. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting fill flash LED
7. 2592 × 1944 still picture resolution
8. Support 1080p30fps , 720p60fps and 640x480p60/90fps video record
9. Dimension: 25mm x 24mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Package Contents

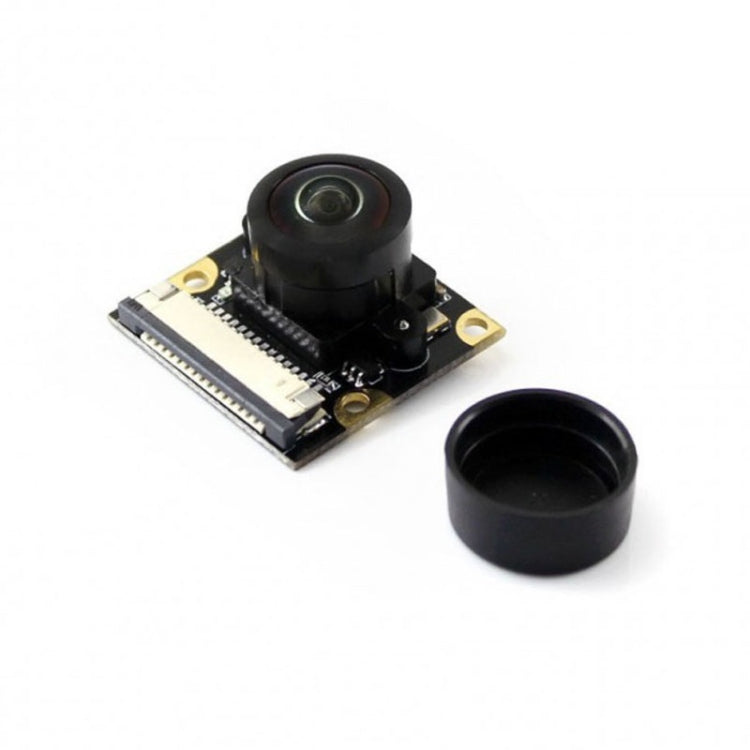

1. RPi Camera (M) x1
2. 15-pin FFC (opposite sides contact) x1
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.06lb
|
| One Package Size |
6cm * 5cm * 2cm / 2.36inch * 1.97inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 1600 pcs = 443200 pcs
40HQ: 644 cartons * 1600 pcs = 1030400 pcs
|
|
