Features

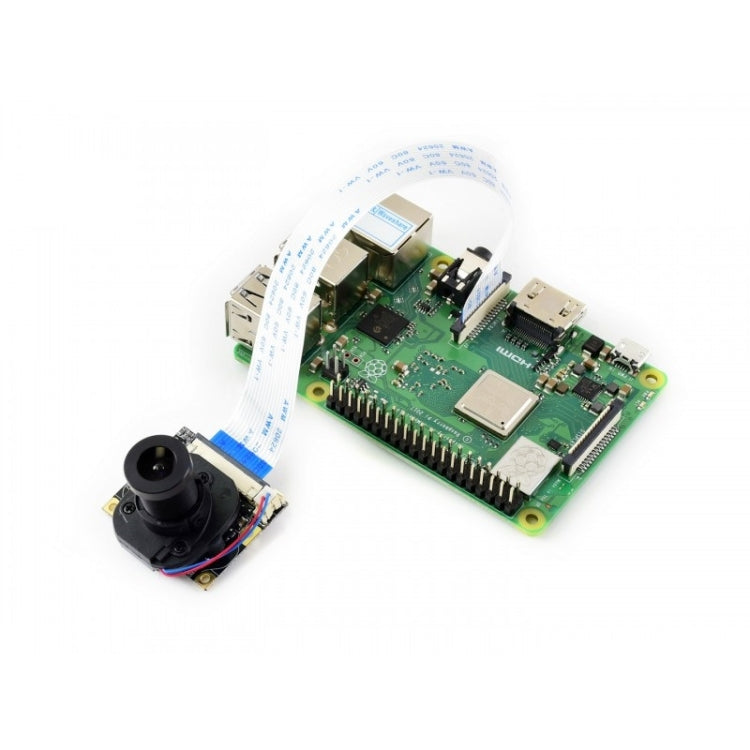

1. Raspberry Pi Camera, supports all revisions of Pi
2. Embedded detachable IR-CUT filter to eliminate color distortion in daylight
3. Equipped with infrared LED to support night vision
4. 5 million pixel OV5647 sensor
5. Adjustable focal length
6. Camera specifications
- CCD size: 1/4 inch
- Aperture (F): 1.8
- Focal length: 3.6mm
- Viewing angle (diagonal): 75.7 degrees
- Sensor best resolution: 1080p
7. 4 screw holes
- for accessories
- Provide 3.3V power output
- Support for connecting infrared LEDs and / or fill flash LEDs
8. Size: 31mm × 32mm
Note: To use the camera on Raspberry Pi Zero / Zero W / Zero WH, you need to purchase a specific line: Raspberry Pi Zero v1.3 camera line
Package Contents

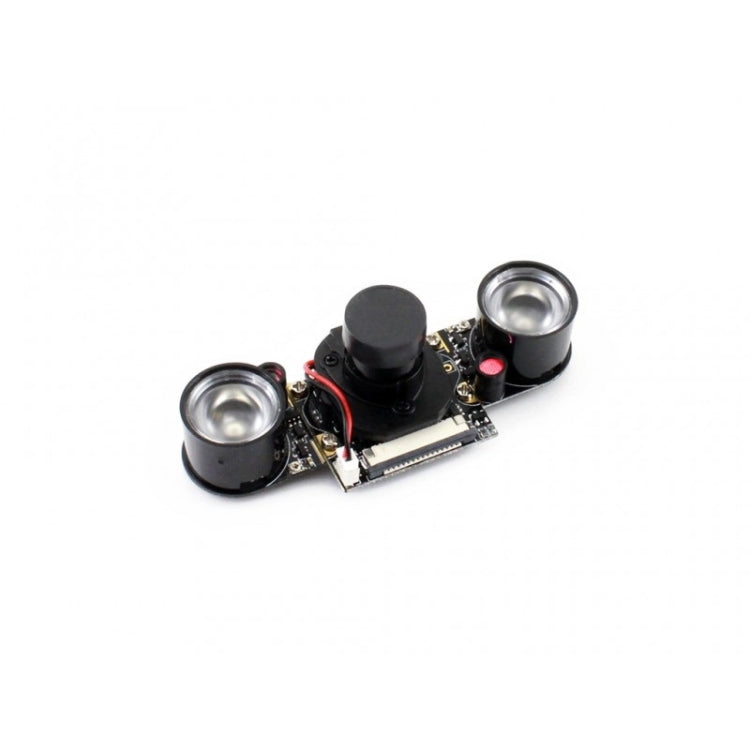

1. RPi IR-CUT camera x1
2. Infrared LED board (B) x2
3. 15-pin FFC (relative side contact) x1
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.06lb
|
| One Package Size |
6cm * 5cm * 2cm / 2.36inch * 1.97inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 1600 pcs = 443200 pcs
40HQ: 644 cartons * 1600 pcs = 1030400 pcs
|
|
