1. Multi-band 5G NR / LTE-FDD / LTE-TDD module, supporting 5G standalone (SA) mode and up to 220Mbps download rate
2. Strong expansion capability, rich interfaces, including USB 2.0 and GPIO, etc., and support for a variety of network protocols
3. Adopting M.2 form factor, its AT commands are compatible with SIM7600/SIM8200/SIM8260 series modules
4. Designed for efficient and reliable data communication under various radio propagation environments, and can be widely adapted to various application scenarios
5. Standard M.2B KEY interface
6. 5G RedCap module with low power consumption and light weight
7. 5G standard: 3GPP R167
8. Chip solution: Qualcomm Snapdragon X35
9. Communication protocol: TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
10. Dial-up Internet: RNDIS, ECM, PPP
11. Short message (SMS): support MT, MO, CB, Text, PDU
12. Firmware upgrade: support firmware upgrade via USB interface
13. SIM card: 1.8V/2.95V
14. Antenna Interface: 3 x IPEX-4 interface
15. Supply Voltage: 3.4V - 4.4V
16. Operating temperature: -30 to 70 degrees Celsius

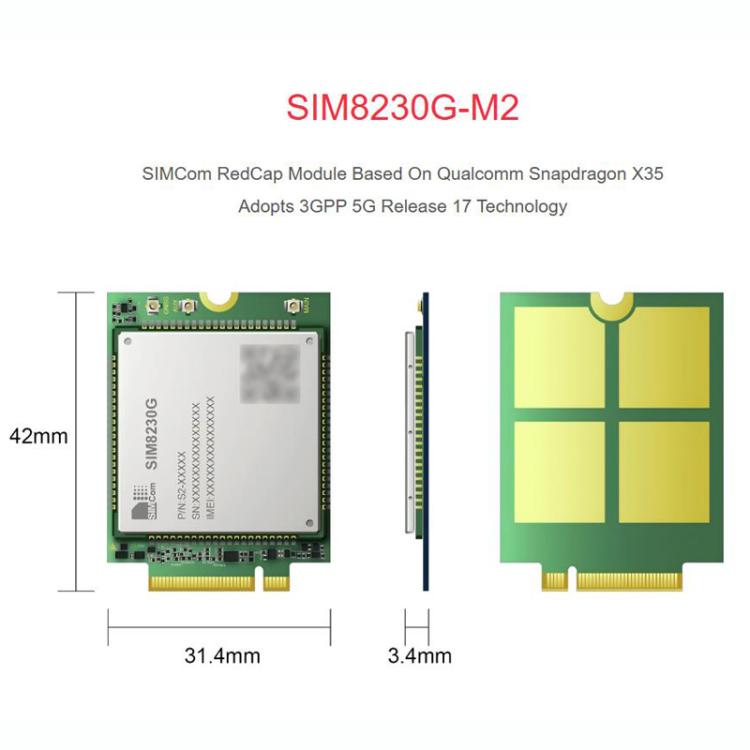

17. Size: about 4.2 x 3.14 x 0.34cm
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
8cm * 6cm * 1cm / 3.15inch * 2.36inch * 0.39inch
|
| Carton Weight |
31.00kgs / 68.34lb
|
| Carton Size |
50cm * 34cm * 34cm / 19.69inch * 13.39inch * 13.39inch
|
| Loading Container |
20GP: 461 cartons * 1000 pcs = 461000 pcs
40HQ: 1071 cartons * 1000 pcs = 1071000 pcs
|
|
