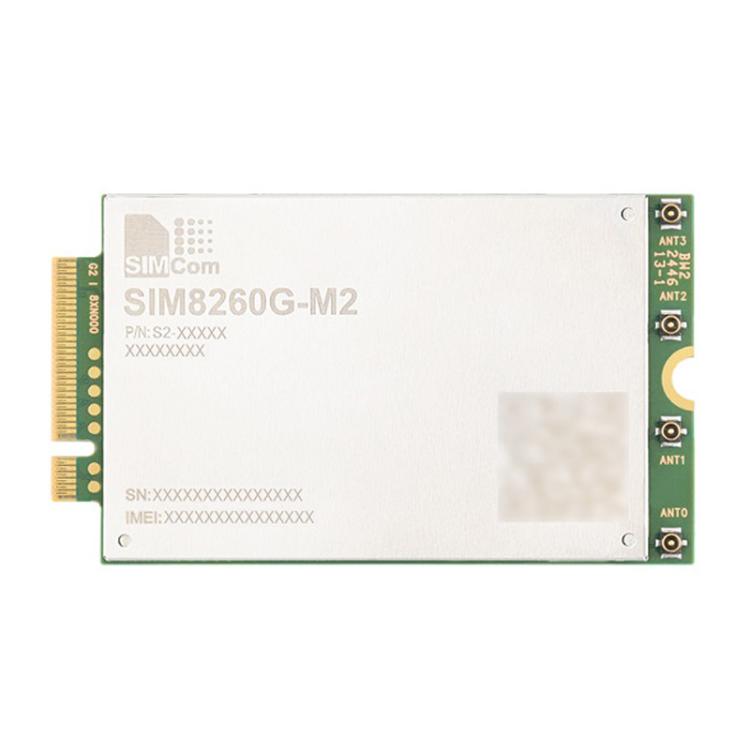

1. Multi-band 5G NR / LTE-FDD / LTE-TDD / HSPA+ module, supports R16 5G NSA / SA, up to 3.47Gbps download rate
2. Strong scalability and rich interfaces, including PCle, USB3.1 and GPIO, provide flexibility and integration capabilities for applications
3. M.2 package, AT commands are compatible with SIM8200 series modules
4. Designed for applications requiring high throughput data communication under various radio propagation conditions, suitable for a variety of application scenarios
5. Standard M.2 B KEY interface
6. 5G standard: 3GPP R16
7. Chip program: Qualcomm Snapdragon X62
8. Communication protocols: TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
9. Dial-up internet: RNDIS, NDIS, PPP,MBIM
10. Short message service (SMS): support MT, MO, CB, Text, PDU
11. Firmware upgrade: support firmware upgrade via USB interface
12. SIM card: 1.8V/2.95V
13. Antenna interface: 4 x IPEX-4 interface
14. Supply voltage: 3.135V - 4.4V
15. Operating temperature: -30 to 70 degrees Celsius

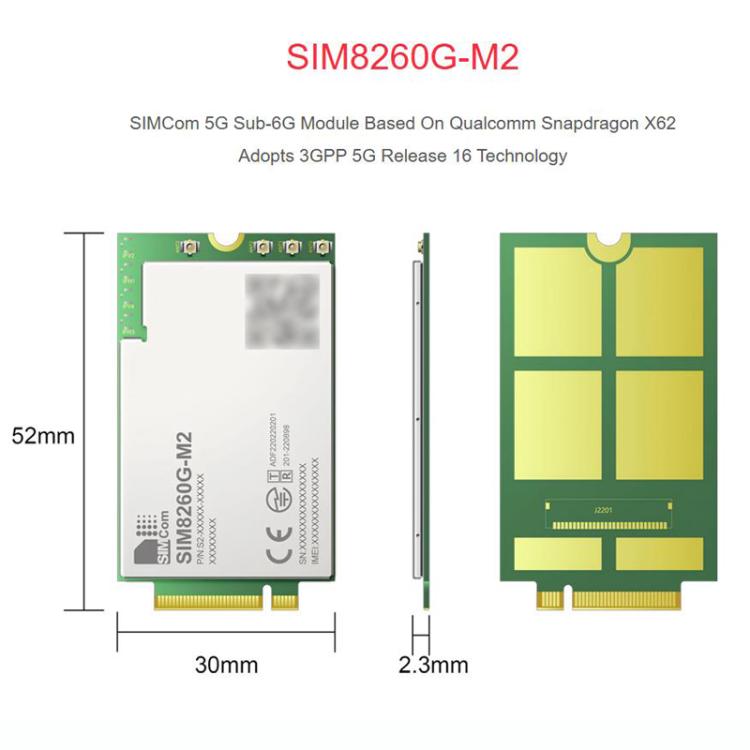

16. Size: about 5.2 x 3 x 0.23cm
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 6cm * 1cm / 3.15inch * 2.36inch * 0.39inch
|
| Carton Weight |
41.00kgs / 90.39lb
|
| Carton Size |
50cm * 34cm * 34cm / 19.69inch * 13.39inch * 13.39inch
|
| Loading Container |
20GP: 461 cartons * 1000 pcs = 461000 pcs
40HQ: 1071 cartons * 1000 pcs = 1071000 pcs
|
|
