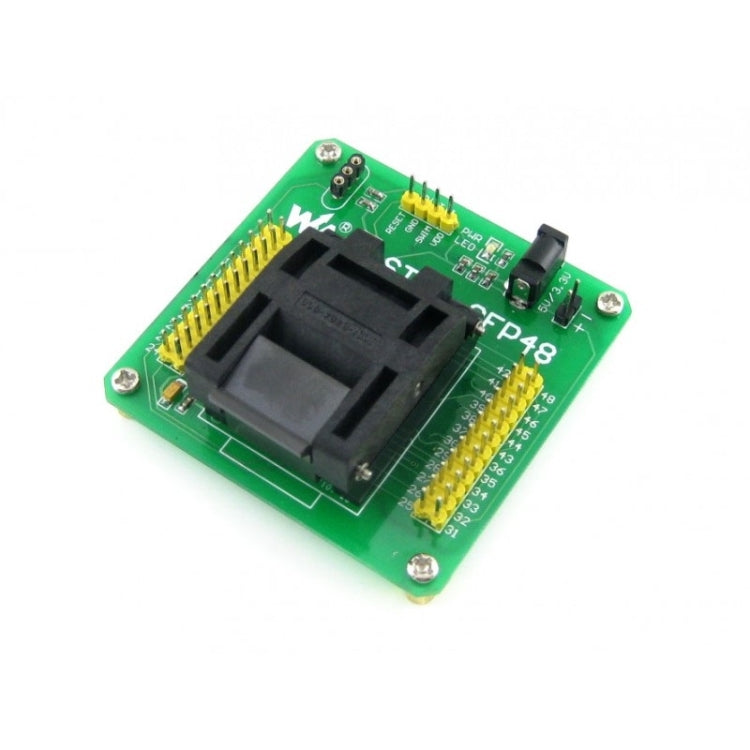

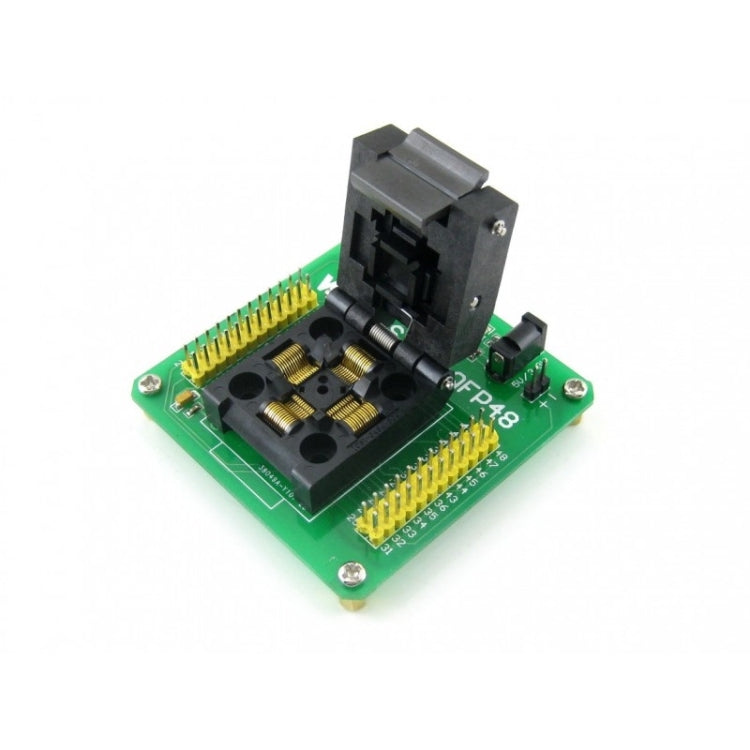

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) package

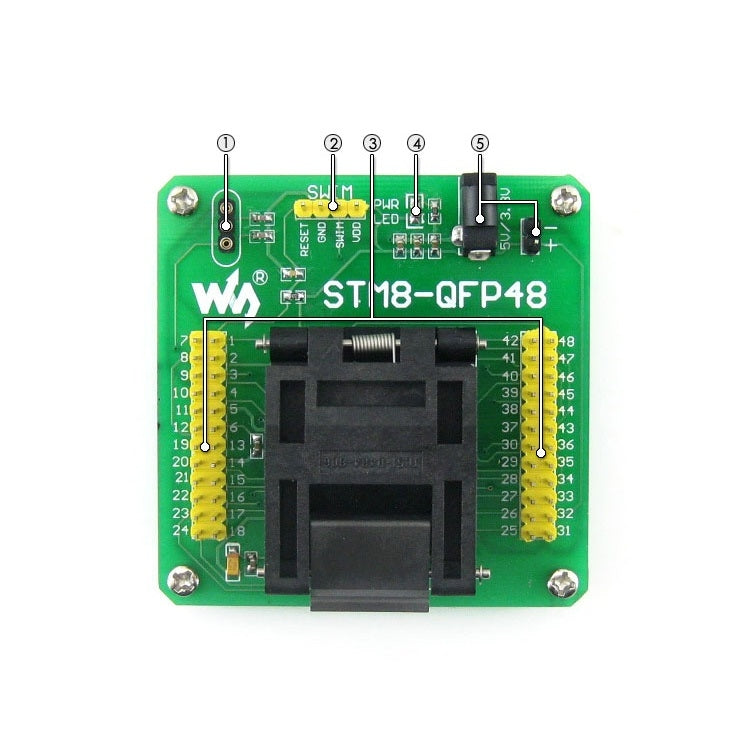

Features

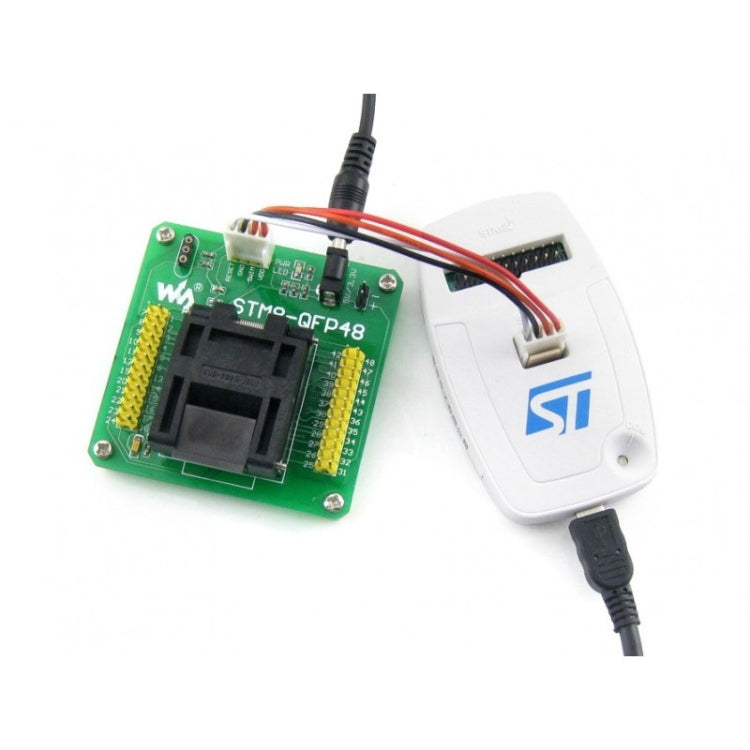

1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors
Supported Devices
STM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts
- STM8S105CxTx / STM8S207CxTx / STM8S208CxTx
- STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8T
Package Contents
1. STM8-QFP48 × 1
2. USB power cable × 1
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.22lb
|
| One Package Size |
10cm * 6cm * 2cm / 3.94inch * 2.36inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 36cm * 40cm / 23.62inch * 14.17inch * 15.75inch
|
| Loading Container |
20GP: 308 cartons * 720 pcs = 221760 pcs
40HQ: 716 cartons * 720 pcs = 515520 pcs
|
|
