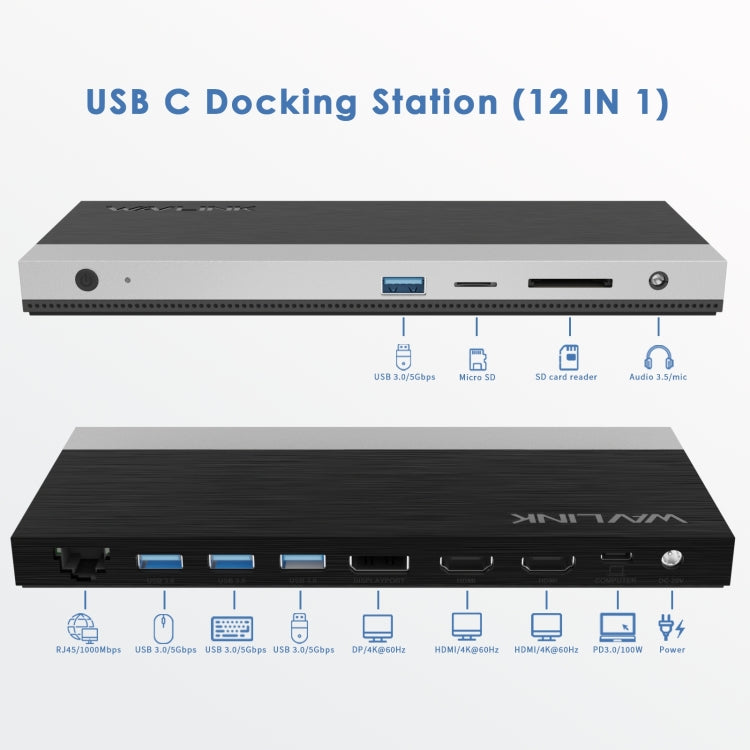

1.WAVLINK 13 IN 1 USB C Hub：one USB C cable, convert your usb c port into 13-port - 2 HDMI, 1 DisplayPort, 3 USB 3.0 Type A, 1 USB 3.0 port with BC 1.2 fast charging , 1 gigabit Ethernet port, 1 SD&TF card reader, 1 phone audio jack. USB C Dual HDMI Adapter for Windows Mac Laptops. NOTE: Wavlink MST docking station adapter, compatible with USB-C Computers that have USB3.1 Gen2 full specification with data transfer, USB-C Power Delivery and Video Output (DispalyPort Alternate Modes).

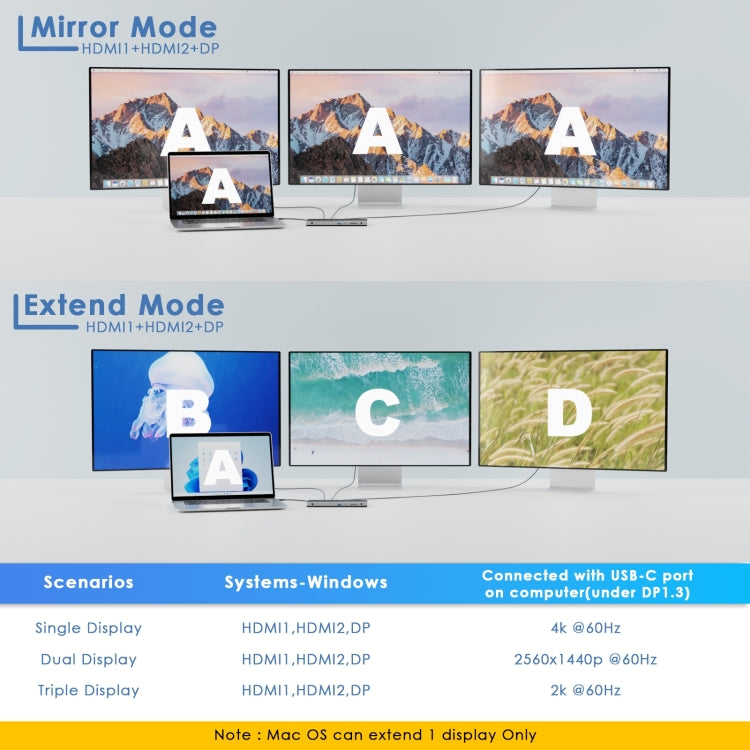

2.4K Ultra HD Triple Display：Dual HDMI and 1 DisplayPort video ports for various needs. The host computer under HBR3 DP1.4 source, a single port video output resolution up to 3840x2160/60Hz, dual displays up to 2560x1440/60Hz, triple displays up to 1920x1080/60Hz. Under HBR3 DP1.2, a single display resolution up to 3840x2160/30Hz or 2560x1440/60Hz, dual display resolution up to 1920x1080/60Hz, triple display up to 1600x900/60Hz.
3.Tips on laptops system：Mirror or extend your screen directly stream UHD video to HDTV, monitors, projectors. Windows system support MST and SST, triple display. Mac OS only support mirror mode and non-mirror mode without triple display. Non-mirror mode means that the two or three external monitors are same but different from laptop. Intel/M1/M2 based Mac only extend one monitor, the external monitors will show the same content. USB C to Dual HDMI DisplayPort mini dock, Plug and Play.

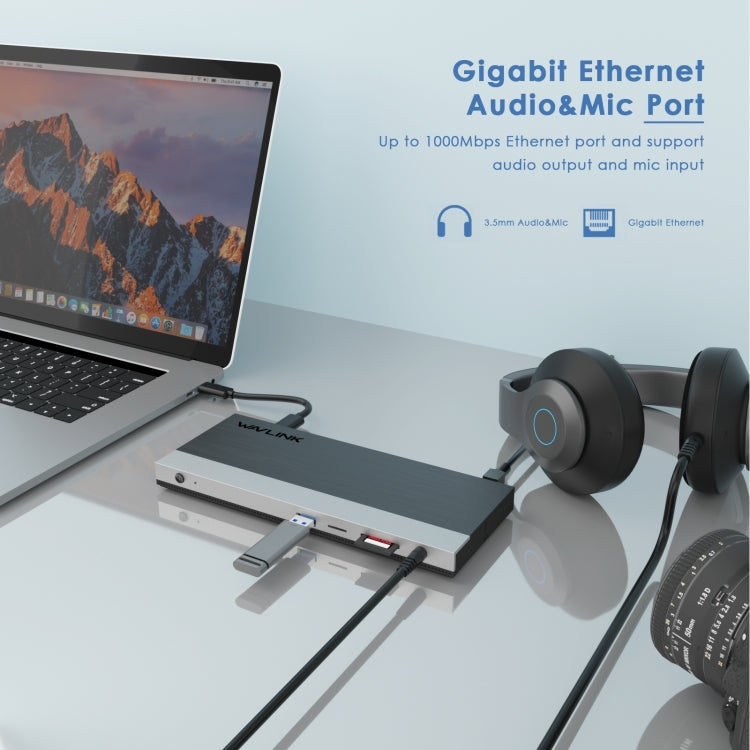

4.4 USB ports & Ethernet & SD/TF card reader：3 USB 3.0 ports, synchronize data at speeds up to 5Gbps, up to 10x faster than USB 2.0, another BC 1.2 fast charging USB 3.0 port not only transfers data but also helps you charge your phone quickly. 1000Mbps Gigabit Ethernet port provides a stable and faster wired network connection for your file transfer. Built in SD and Micro SD slots for easy access to files from universal SD and Micro SD Memory Card up to 2TB.

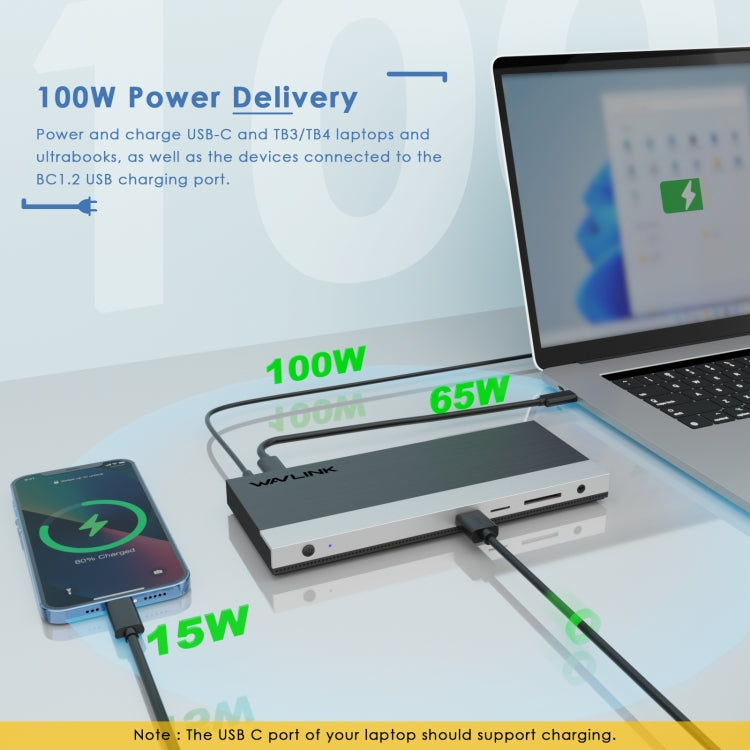

5.Charge your Laptop：This wavlink USB C Hub dock with 100W PD3.0 pass-through charging port, provides up to 65W power delivery to your laptop, quickly charging your connected devices while displaying or transferring data. A USB C Triple Display Docking Station for life, meet your different needs for home/office/outdoor screen expansion.
Specification
1.Provides USB power delivery up to 100W for upstream charging.
2.Supports triple display with two types of video outputs HDMI & DP.
3.RJ45 Gigabit Ethernet port provides high speed and secure network.
4.Compatible with full-featured USB 3.1 compliance (Data transfer, USB power delivery and video alternate).
5.Support Card Reader SDHC/SDXC (Capacity up to 2TB).
Specification:
|
Package Weight
|
| One Package Weight |
1.21kgs / 2.68lb
|
| One Package Size |
27cm * 13cm * 7.5cm / 10.63inch * 5.12inch * 2.95inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
78cm * 38cm * 21cm / 30.71inch * 14.96inch * 8.27inch
|
| Loading Container |
20GP: 428 cartons * 24 pcs = 10272 pcs
40HQ: 994 cartons * 24 pcs = 23856 pcs
|
|
