1. Menu operation and color-screen HD display.
2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.
3. Two measurement methods: single measurement, continuous measurement.
4. Three calibration modes: basic, offset, zero calibration.
5. Metric/imperial unit and storage function.
6. Screen rotation, charge protection, multi-interface displays,screen brightness selection.
7. Bluetooth function(go with corresponding APP).
8. Automatic shutdown.
9. USB transport data(operating with PC software).

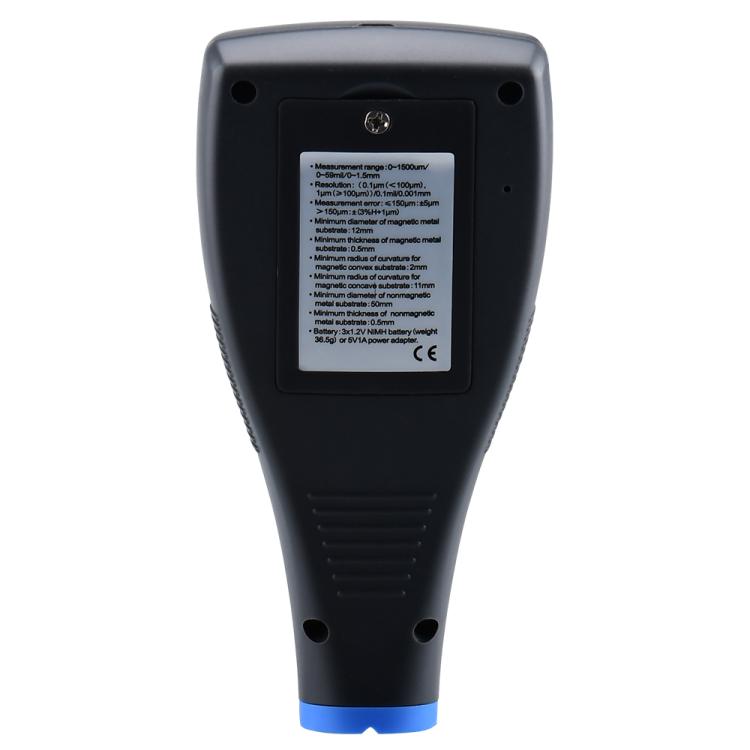

Specification:
1. Measurement range: 0~1500 um/0~59mil/0~1.5mm
2. Resolution: (0.1 um(less than 100 um),1 um(more than or equal to 100 um))/0.1mil/0.001mm
3. Measurement error: less than equal to 150 um , +/-5 um, more than 150 um , +/-(3%H+1 um)
4. Minimum diameter of magnetic metal substrate: 12mm
5. Minimum thickness of magnetic metal substrate: 0.5mm
6. Minimum radius of curvature for magnetic convex substrate: 2mm
7. Minimum radius of curvature for magnetic concave substrate: 11mm
8. Minimum diameter of non-magnetic metal substrate: 50mm
9. Minimum thickness of non-magnetic metal substrate: 0.5mm
10. Size: 70.30x38.6x149.59mm
11. Weight: 108g
Specification:
|
Package Weight
|
| One Package Weight |
0.72kgs / 1.60lb
|
| One Package Size |
27cm * 20cm * 7cm / 10.63inch * 7.87inch * 2.76inch
|
| Carton Weight |
16.18kgs / 35.67lb
|
| Carton Size |
68cm * 46cm * 31cm / 26.77inch * 18.11inch * 12.2inch
|
| Loading Container |
20GP: 275 cartons * 20 pcs = 5500 pcs
40HQ: 638 cartons * 20 pcs = 12760 pcs
|
|
