Feature:

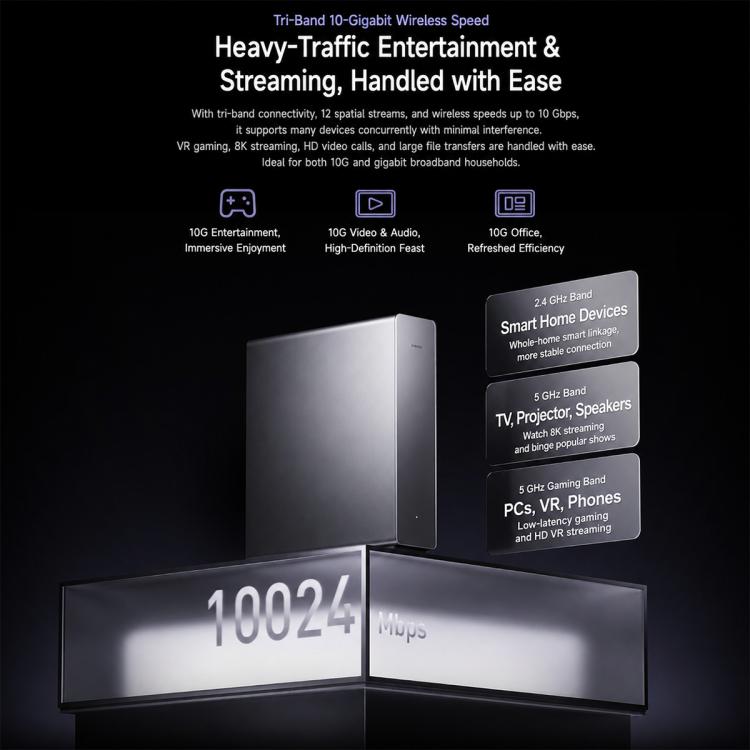

1. Tri-band 10G wireless speed: Equipped with tri-band technology, it delivers wireless speeds up to 10 Gbps, enabling high-concurrency operation of multiple devices without interference—effortlessly handling demanding scenarios such as VR gaming, 8K streaming, HD video conferencing, and large file transfers. Ideal for both 10 Gigabit and Gigabit broadband households.

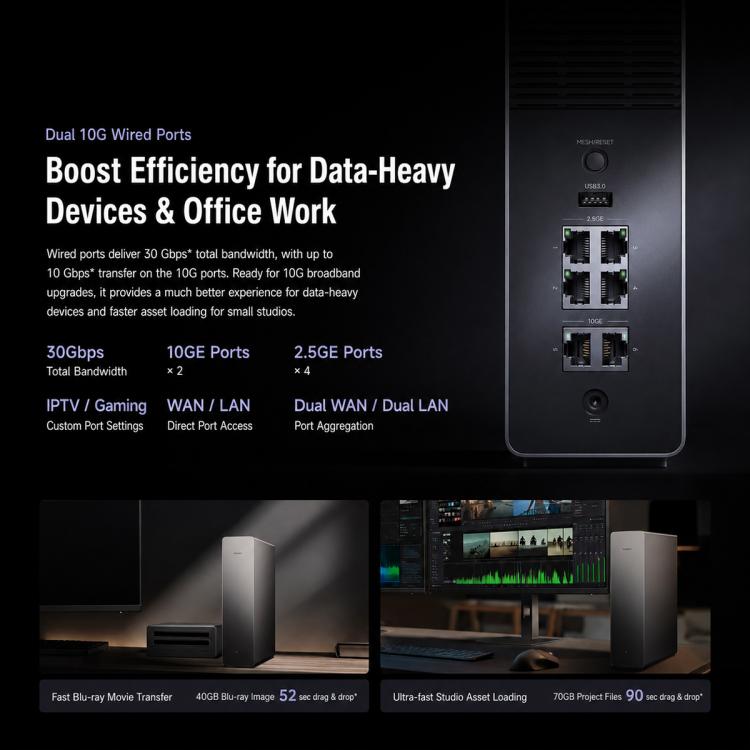

2. Dual 10 Gigabit Ethernet ports: Six network ports deliver a total transmission bandwidth of 30 Gbps. 10 Gigabit port supporting up to 10 Gbps network speeds.
3. Wi-Fi 7 protocol: WiFi7 not only has higher speeds and effectively improves throughput, but also has powerful functions such as MLO multi-channel connection technology, which can make full use of channel resources, reduce delays, and improve anti-interference capabilities.

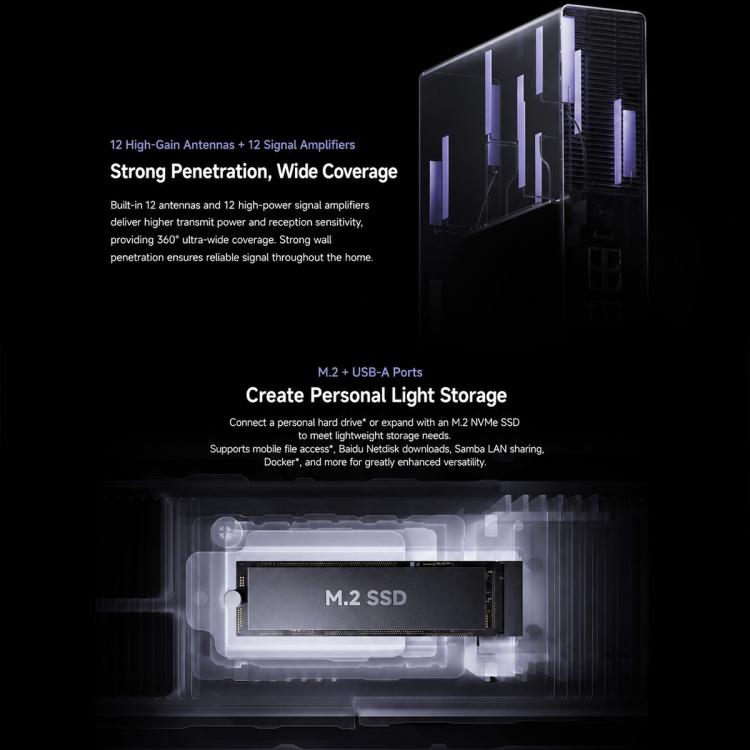

4. M.2 + USB-A ports: Supports external connection of personal hard drives or expansion via M.2 NVMe SSD. Features include file access from mobile devices, Samba LAN sharing, Docker support, and more.

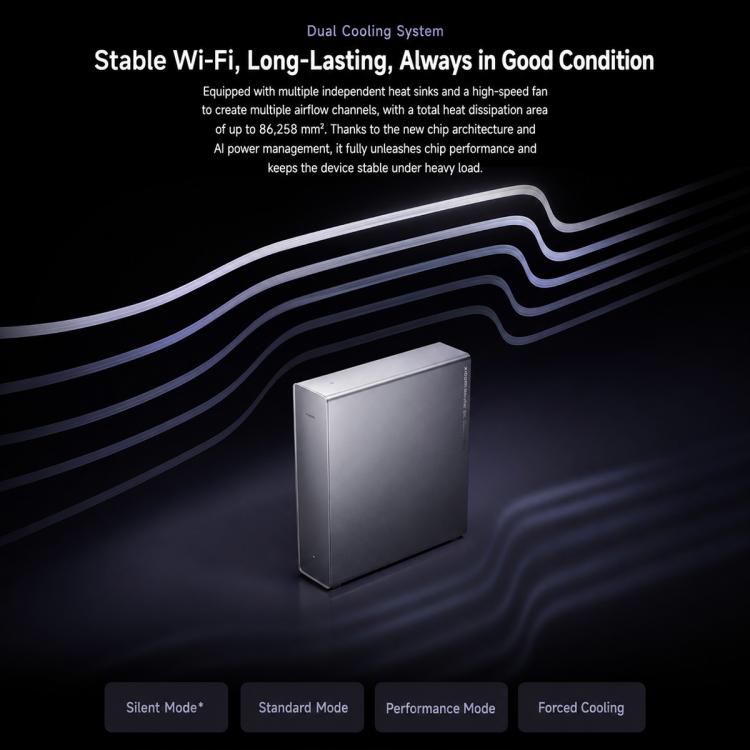

5. Dual cooling system: Equipped with multiple independent heat sinks and a high-speed fan to create multi-path airflow channels for efficient cooling.
6. Powered by Qualcomm Dragonwing NPro A7 quad-core chip: Innovatively equipped with a next-generation AI networking engine, delivering four key AI-powered capabilities: AI scene acceleration, AI interference resistance, AI Mesh roaming, and AI energy management.
7. Support NAS, USB 3.0 port: Intelligently identifies usage scenarios and proactively optimizes performance with AI.
8. AI Interference Resistance: AI intelligently analyzes home network interference to ensure strong signal strength.

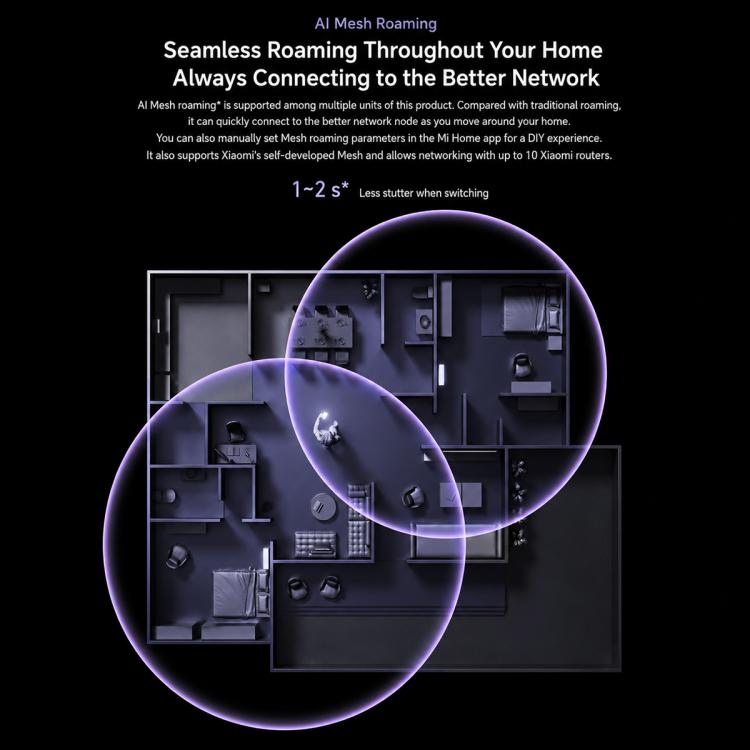

9. AI Mesh Roming: When moving around the house, it can quickly connect to a better network node compared with traditional roaming. You can also manually set the Mesh roaming parameters via the Mi Home App. It also supports Xiaomi's self-developed Mesh technology, allowing up to 10 Xiaomi routers to form a network.
Hardware configuration:
1. Size: 242 x 70 x 273mm
2. CPU: Qualcomm A7 4-Core 1.8GHz
3. RAM：2GB
4. 2.4GHz Wi-Fi: 4x4, theoretical max speed 1376.4Mbps
5. 5.2GHz Wi-Fi: 4x4, theoretical max speed 5764.8Mbps
6. 5.8GHz Wi-Fi: 4x4, theoretical max speed up to 2882.4Mbps
7. Antennas: Built-in high-gain antenna + built-in NFC antenna + built-in Bluetooth antenna
8. Central Gateway: Supported
9. Bluetooth Gateway: Supported
10. Cooling: Active cooling
11. LED Indicators: 7 (System indicator x 1, Ethernet port indicators x 6)
12. MESH/RESET Button: 1
13. Power Input Port: 1
Device Ports:
1. 4 x 10/100/1000/2500Mbps adaptive WAN/LAN ports
2. 2 x 10/100/1000/2500/5000/10000Mbps adaptive WAN/LAN ports
3. 1 x M.2 interface
4. 1 x USB 3.0 port
Wireless Parameters:
1. Wi-Fi Bands: Tri-band (2.4GHz, 5.2GHz, 5.8GHz)
2. Wireless Channels:
2.4GHz Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5.2GHz Channels: 36, 40, 44, 48, 52, 56, 60, 64
5.8GHz Channels: 149, 153, 157, 161, 165
Work environment:
1. Operating temperature: 0 ~ 40degree Celsius
2. Storage temperature: 10% ~ 90% RH non-condensing
3. Operating humidity: -40 ~ 70degree Celsius
4. Storage humidity: 5% ~ 90% RH non-condensing
Software parameter:
1. Operating system: MiWiFi ROM
2. Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-fouling network
3. Management application: Support Web, Mihome App (Android&iOS)
Specification:
|
Package Weight
|
| One Package Weight |
2.60kgs / 5.74lb
|
| One Package Size |
33cm * 25cm * 8cm / 12.99inch * 9.84inch * 3.15inch
|
| Carton Weight |
21.80kgs / 48.06lb
|
| Carton Size |
35cm * 52cm * 34cm / 13.78inch * 20.47inch * 13.39inch
|
| Loading Container |
20GP: 430 cartons * 8 pcs = 3440 pcs
40HQ: 1000 cartons * 8 pcs = 8000 pcs
|
|
