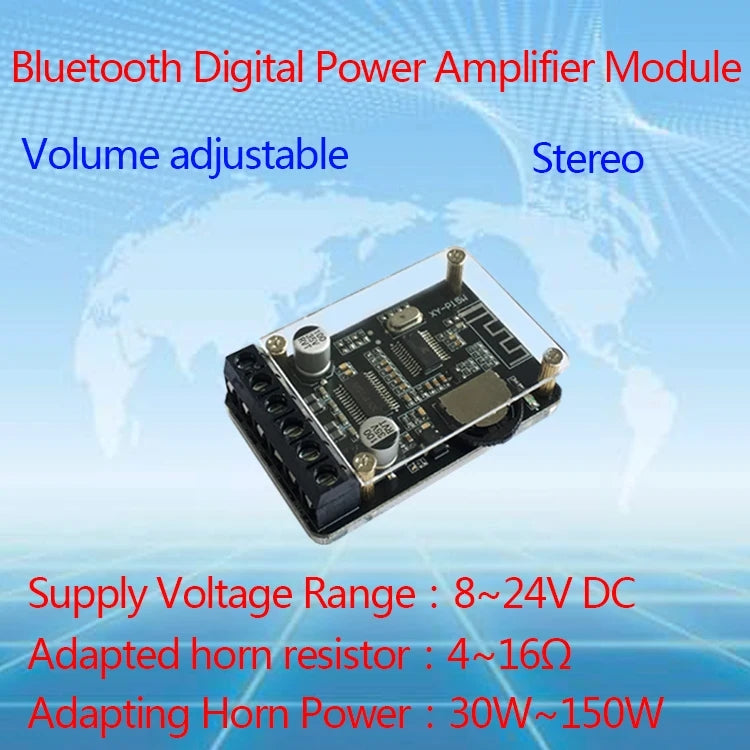

1. Bluetooth version: 5.0
2. Operating voltage: DC8-24V
3. Transmission distance: 15 meters (visible and unobstructed)
4. Number of channels: dual-channel (stereo)
5. Adaptable speaker power (30W-150): 4 ohms (8-12V power supply), 8 ohms (8-24V power supply), 16 ohms (8-24V power supply)
6. Module protection mechanism: reverse power supply protection, short-circuit protection, self-recovery overheating protection
7. Note: to improve the performance of the module, it is recommended to work more than 20W x 2 application scenarios under the amplifier chip plus heat dissipation

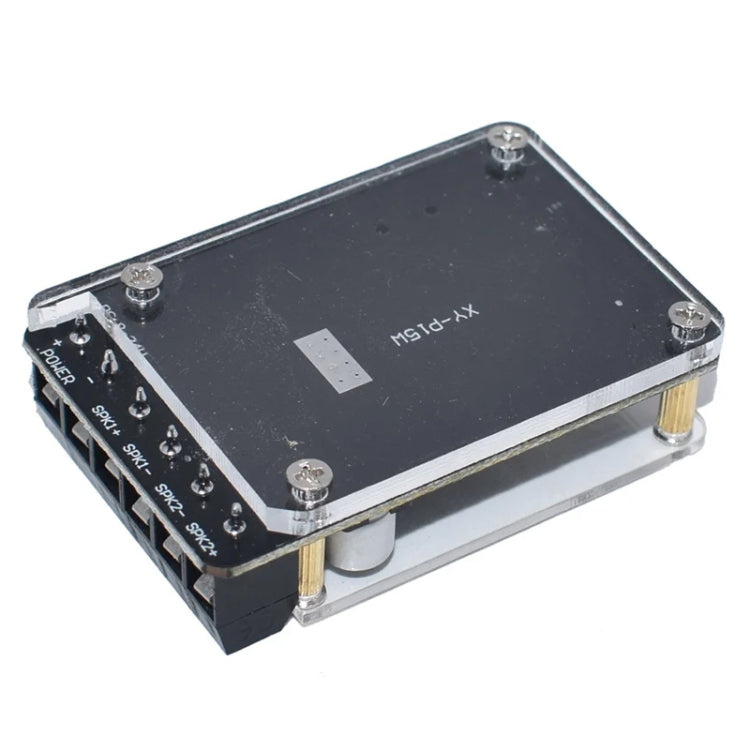

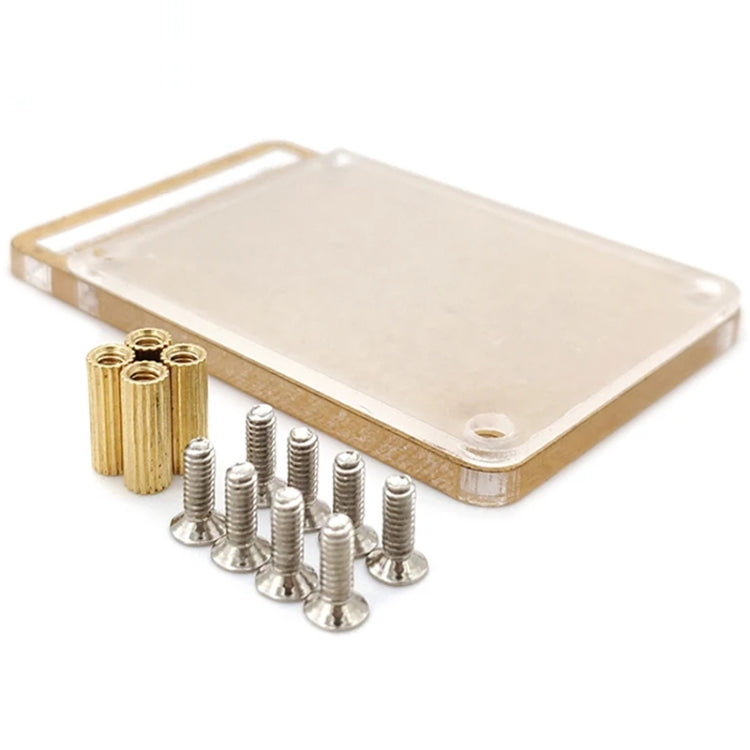

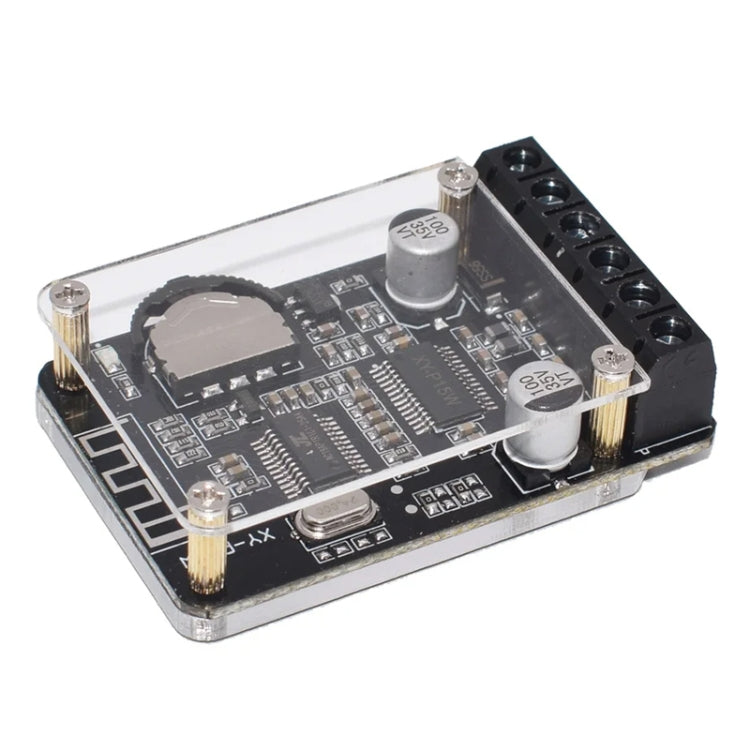

8. Anti-static bag packaging, acrylic panels have a protective film, please tear off when assembling

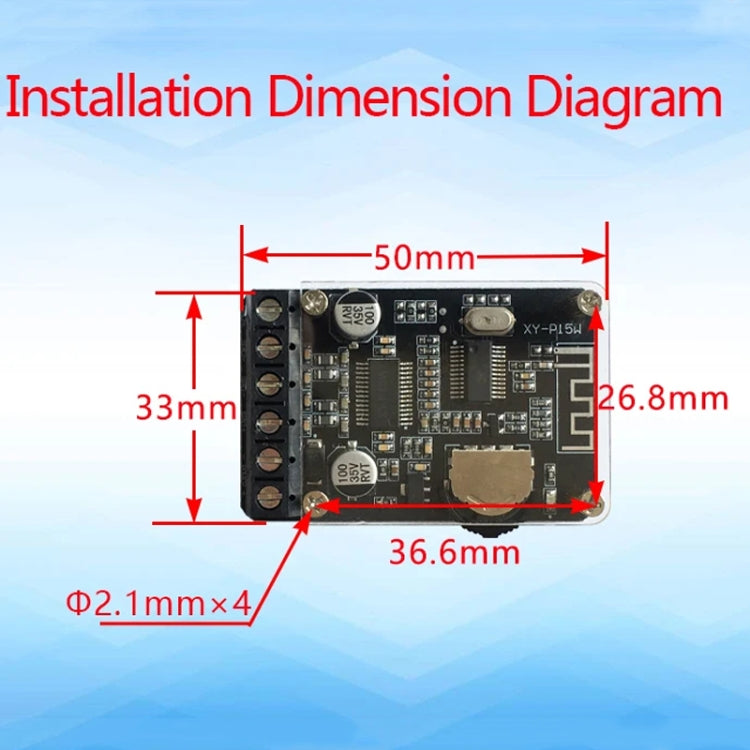

9. Module size: about 5 x 3.3 cm

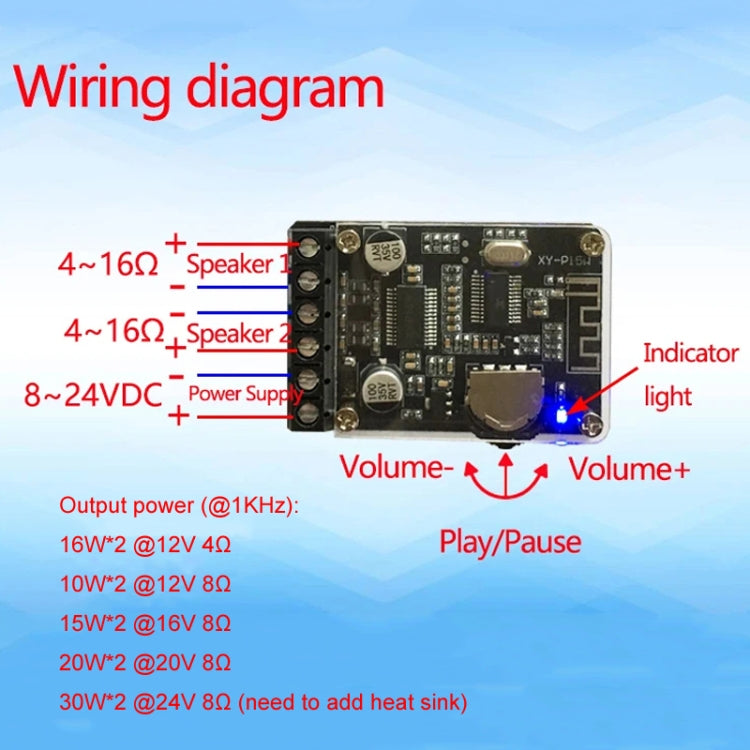

Operating instructions:
1. After turning on the power, the blue indicator light will flash quickly to enter the Bluetooth mode
2. Enter pairing mode and wait for pairing after announcing the beep

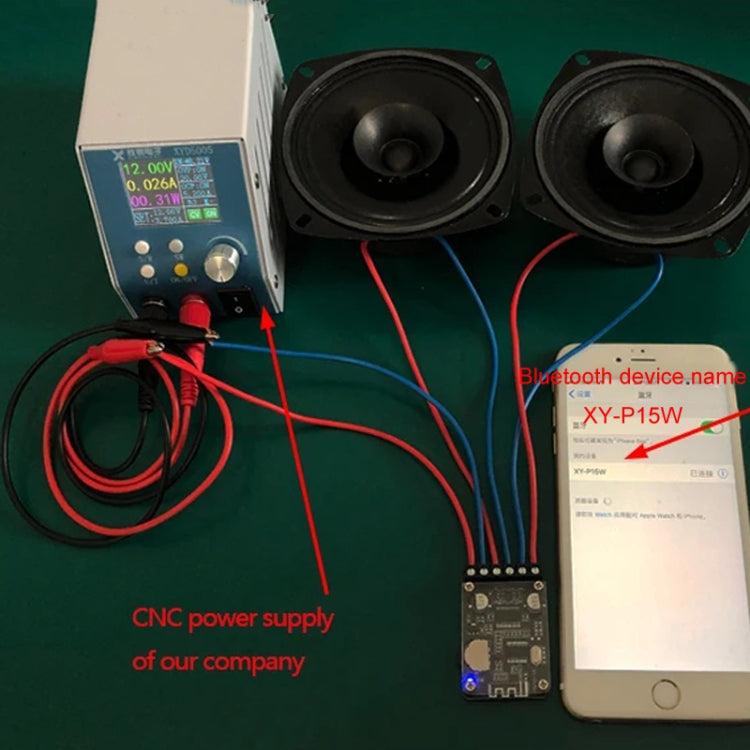

3. Mobile phone bluetooth search to XY-P15W (amplifier board device name), click XY-P15W connection
4. After successful connection, play the tone, the indicator light will be on, you can play the music on your cell phone, and the indicator light will flash slowly when playing the music
5. Bluetooth disconnect the amplifier board to prepare for the next pairing, and play the tone after entering the pairing mode waiting for the pairing
Precautions for use:
1. Amplifier board to use as far away from WIFI signals (router)
2. Recommended power supply voltage DC 8-24V, more than 26V, the chip will be burned
3. Connect 4 ohm speakers when the power supply does not exceed 12V, connect 8 ohm speakers when the power supply does not exceed 24V
4. Recommended power supply current is more than 2A
5. Module working power more than 20W x 2, need to add heat sinks
6. The speaker cable should not be too long, ensure that 1 meter or less is suitable
7. Pay attention to electrostatic protection, contact the amplifier board before the need to release the hand of static electricity, to avoid static electricity will chip breakdown, bluetooth chip is more sensitive to static electricity
8. It is recommended to adapt to the speaker rated power 30W and above, to avoid burning the speaker heat
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.09lb
|
| One Package Size |
12cm * 6cm * 2cm / 4.72inch * 2.36inch * 0.79inch
|
| Carton Weight |
12.24kgs / 26.98lb
|
| Carton Size |
50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 438 cartons * 360 pcs = 157680 pcs
40HQ: 1018 cartons * 360 pcs = 366480 pcs
|
|
