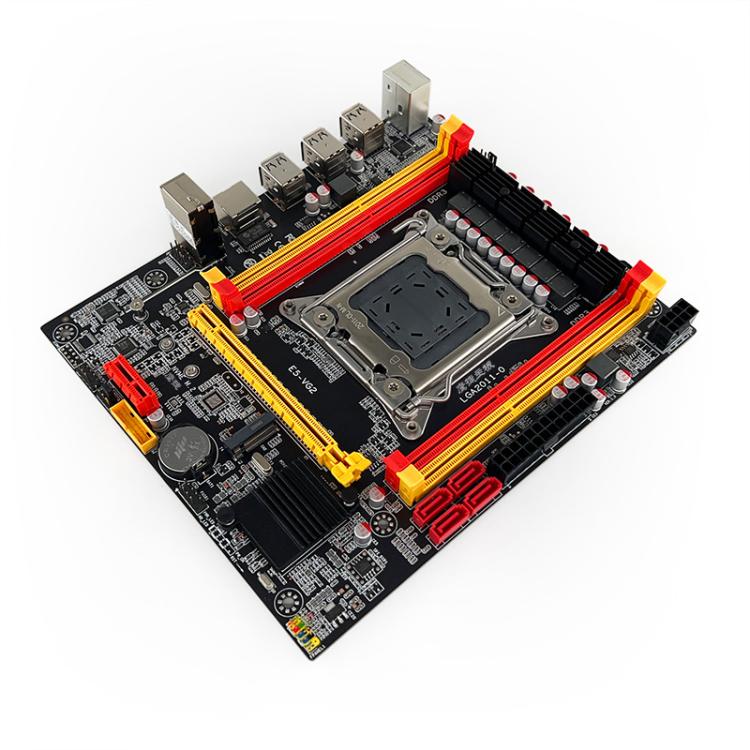

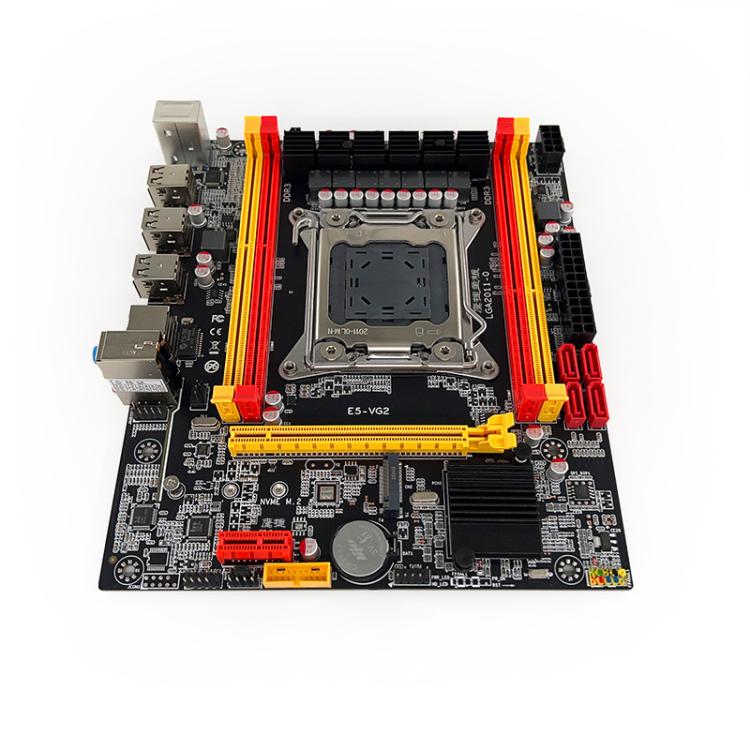

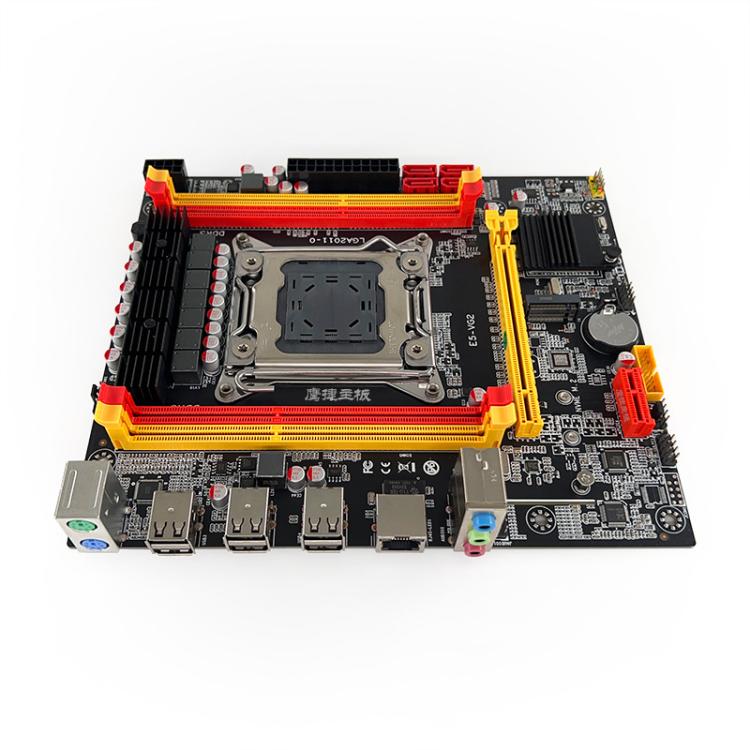

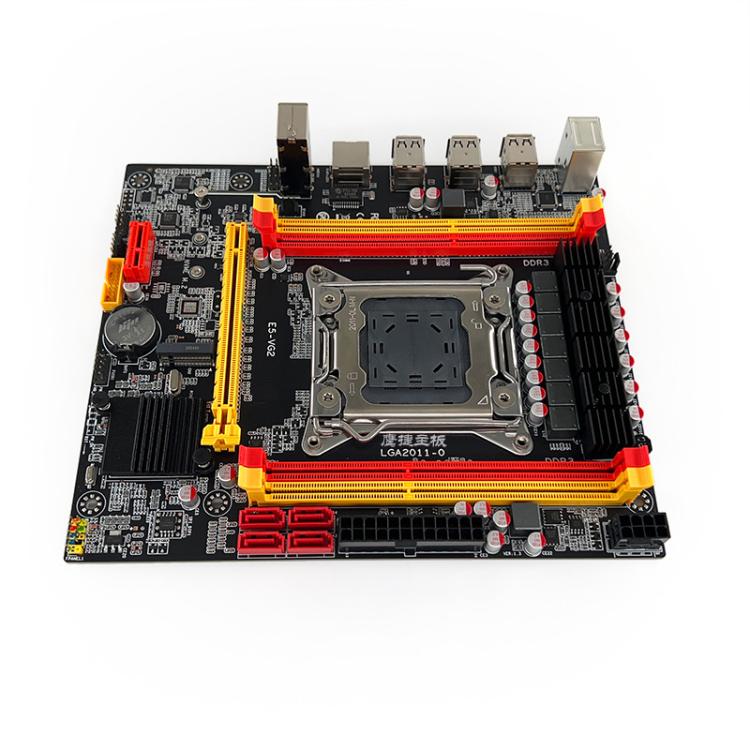

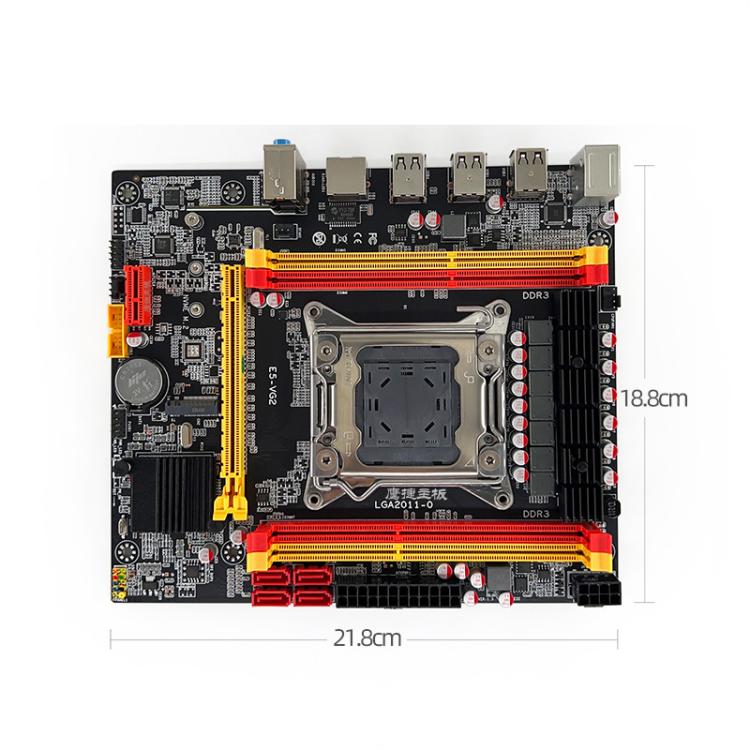

1. Motherboard Model: X79-VG2
2. Chipset: H61 Chipset Series
3. CPU Support: Supports LGA 2011 series processors (Common models: Xeon E5-2620, E5-2650, E5-2680 V1/V2 series)
4. Memory Slots: 4 x DDR3 (Supports 1066/1333/1600 MHz)
5. Maximum Memory Capacity: Up to 64GB
6. Rear USB Ports: 6 x USB 2.0
7. Front USB Headers: 2 x USB 2.0, 1 x USB 3.0
8. Storage Interfaces: 4 x SATA 2.0
9. Network Interface: Gigabit Ethernet
10. Audio: Integrated HD Audio
11. Graphics Card Slot: 1 x PCIe x16 (Requires dedicated GPU)
12. Expansion Slots: 1 x PCIe x1, 1 x NVMe M.2
13. Power Connectors: 24-pin + 8-pin (4+4)
14. Peripheral Interface: PS/2 Keyboard/Mouse Port
15. Included Accessories: I/O Shield, SATA Data Cable
16. Note: Electronic products update rapidly; specifications are for reference only.
Specification:
|
Package Weight
|
| One Package Weight |
0.80kgs / 1.77lb
|
| One Package Size |
32cm * 24cm * 7cm / 12.6inch * 9.45inch * 2.76inch
|
| Carton Weight |
10.70kgs / 23.59lb
|
| Carton Size |
32cm * 46cm * 32cm / 12.6inch * 18.11inch * 12.6inch
|
| Loading Container |
20GP: 566 cartons * 12 pcs = 6792 pcs
40HQ: 1314 cartons * 12 pcs = 15768 pcs
|
|
