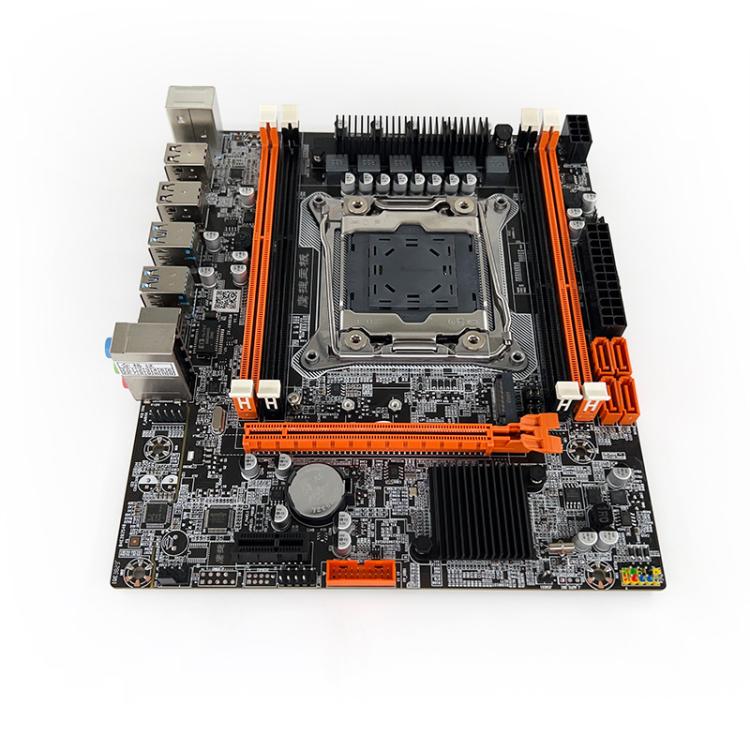

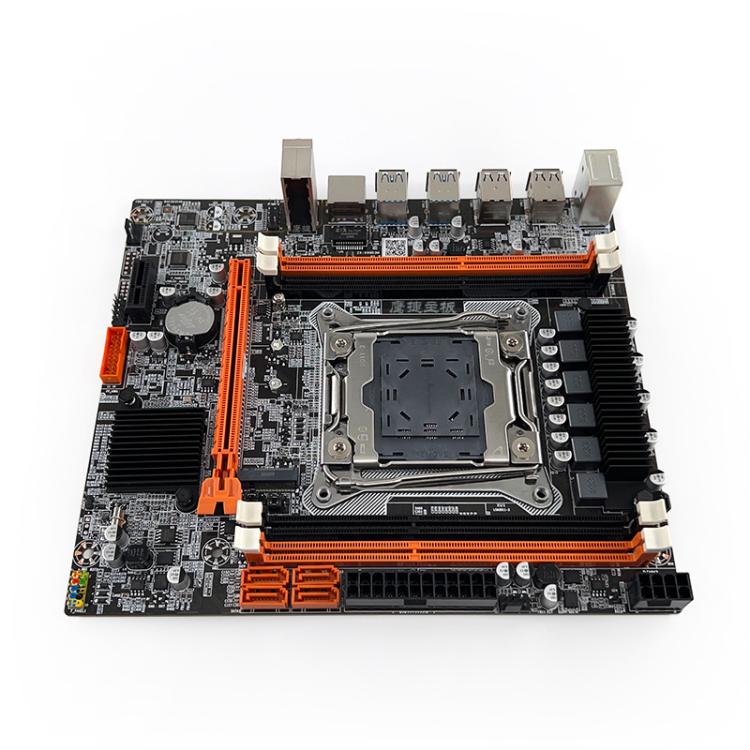

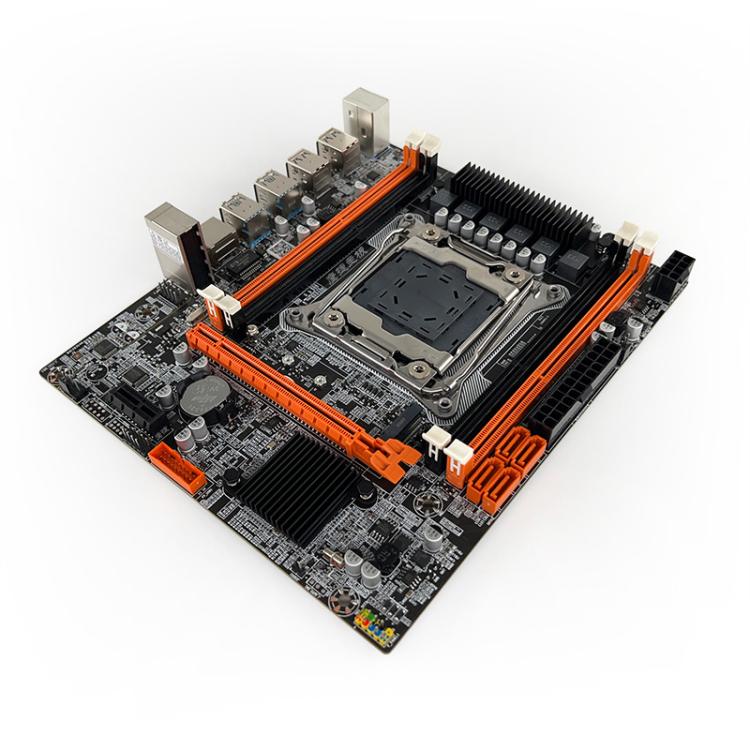

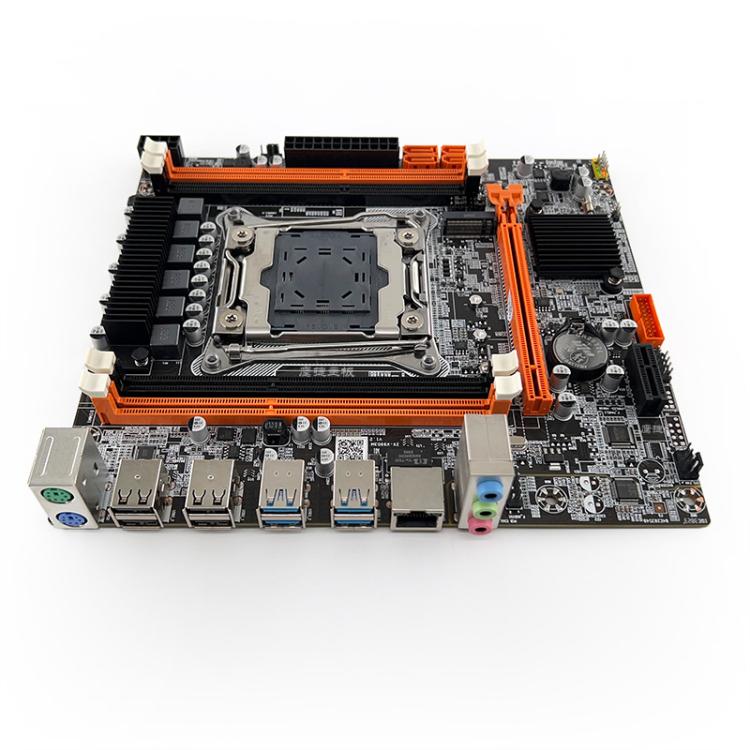

1. Product Name: Yingjie Intel X99D3M Motherboard
2. Main Chipset: Intel X99
3. Chipset Description: Uses Intel X99 chipset
4. Chipset Manufacturer: Intel
5. Number of CPU Sockets: 1
6. CPU Socket Type: Supports Intel LGA 2011-V3 processors
7. CPU Support: Supports LGA 2011-3 CPUs compatible with DDR3 memory
8. Memory Type: DDR3
9. Memory Description: Supports 4 x DDR3 memory modules (1333/1600 MHz)
10. Integrated Chips: Audio/Network
11. Audio Chip: Integrated Realtek ALC audio chip
12. Graphics Chip: None
13. Network Chip: Onboard network controller
14. Video Interface: Requires a discrete graphics card
15. USB Ports: 8 rear USB ports, 3 front USB ports
16. USB 3.0: 2 rear USB 3.0 ports, 1 front USB 3.0 port
17. Graphics Slots: PCI-E graphics slot, Mini PCI-E slot
18. IDE Slot: None
19. FDD Slot: None
20. Keyboard/Mouse Interface: PS/2 port
21. External Ports: USB / Audio / Network
22. SATA Interfaces: 4 x SATA ports, 1 x M.2 slot
23. Memory Slots: 4 x DDR3 DIMM
24. Form Factor: mATX

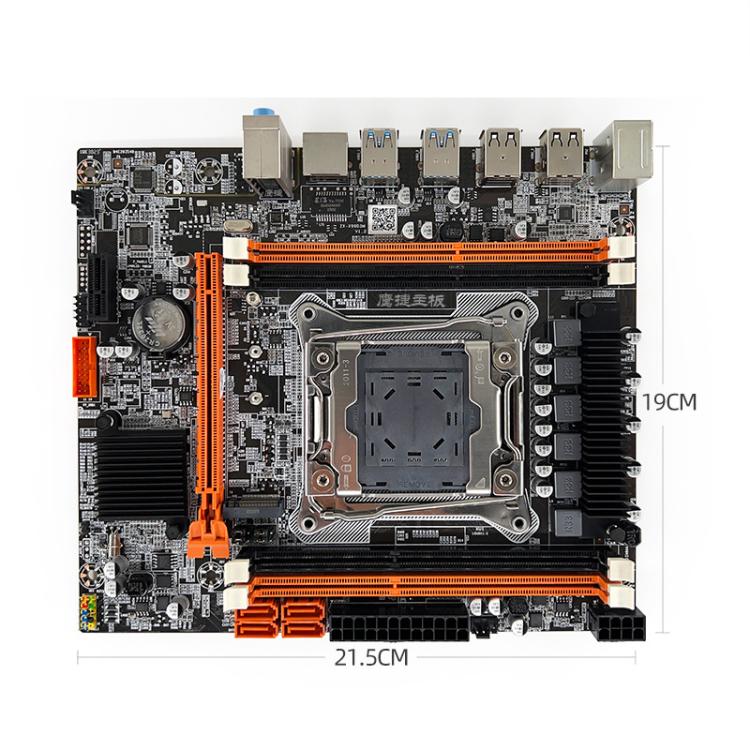

25. Board Dimensions: 19 x 21.5 cm
26. Power Connectors: One 8-pin and one 24-pin power connector
27. Included Accessories: I/O shield, data cable
28. Note: Electronic products are subject to rapid updates; the specifications above are for reference only.
Specification:
|
Package Weight
|
| One Package Weight |
0.70kgs / 1.55lb
|
| One Package Size |
32cm * 24cm * 7cm / 12.6inch * 9.45inch * 2.76inch
|
| Carton Weight |
9.50kgs / 20.94lb
|
| Carton Size |
32cm * 46cm * 32cm / 12.6inch * 18.11inch * 12.6inch
|
| Loading Container |
20GP: 566 cartons * 12 pcs = 6792 pcs
40HQ: 1314 cartons * 12 pcs = 15768 pcs
|
|
