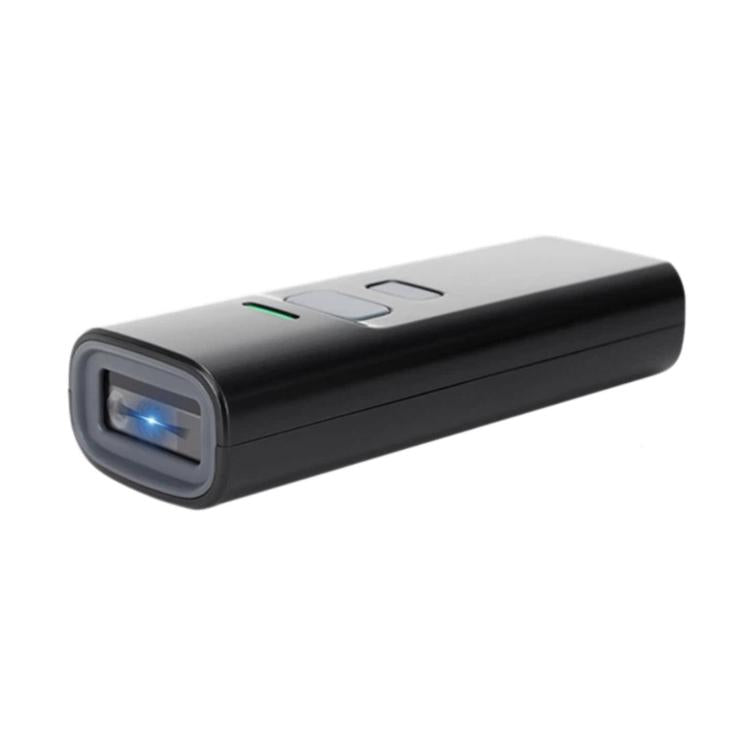

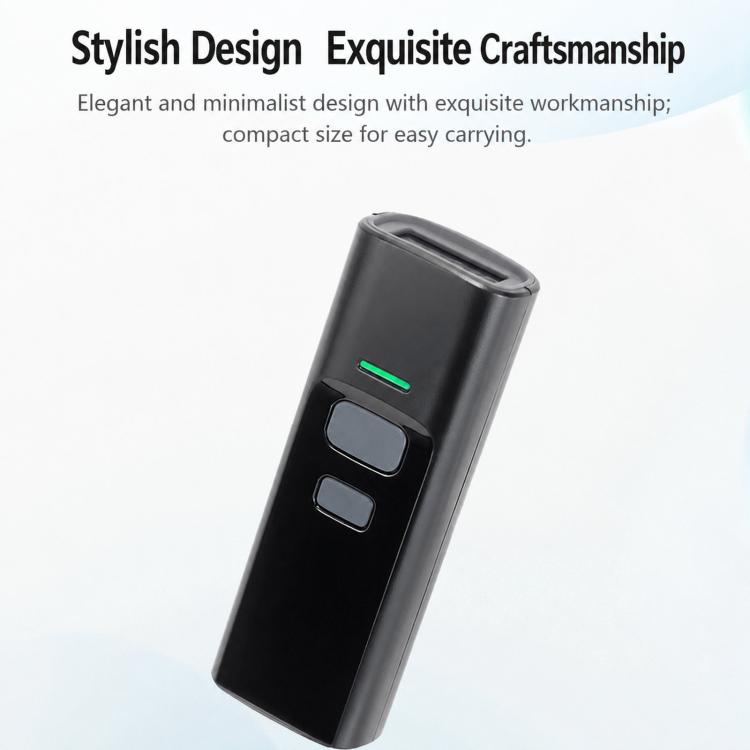

1. The machine is compact in size and easy to carry around

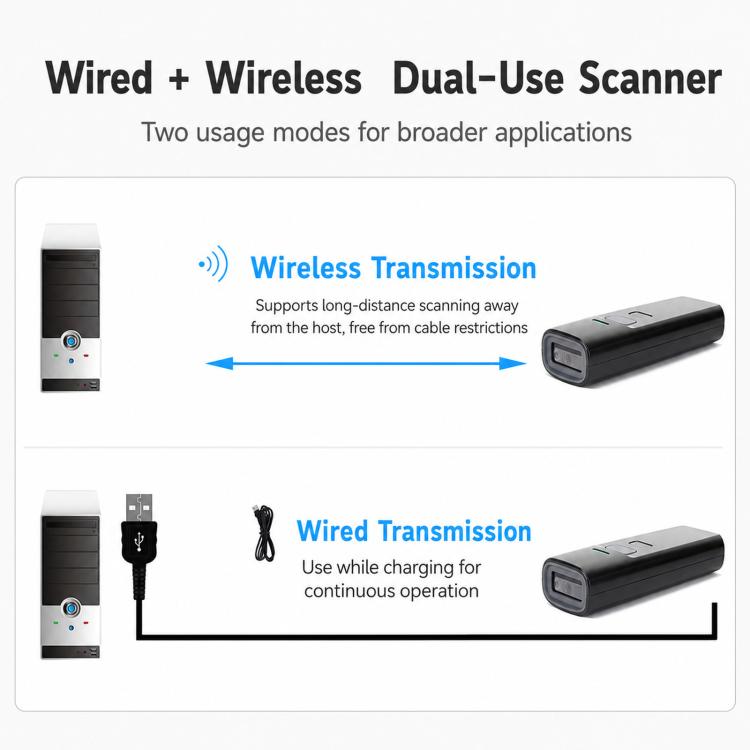

2. It supports two working modes: wired mode and wireless mode, allowing for easy switching at any time

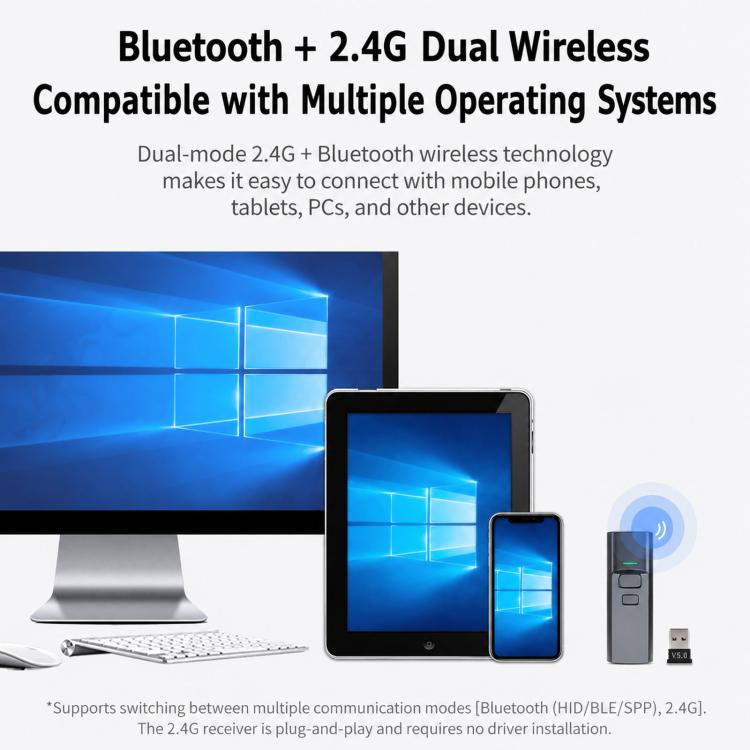

3. It adopts a dual-mode wireless solution of 2.4G and Bluetooth, compatible with various terminals such as mobile phones, tablets, and computers
4. It is equipped with a 1100mAh lithium battery, featuring low power consumption and long-lasting battery life
5. It is made of high quality shell material, providing shock resistance and impact resistance
6. The device supports multiple language keyboard layouts. The default is the American keyboard, and options include English, German, Japanese, French, Italian, Spanish, etc

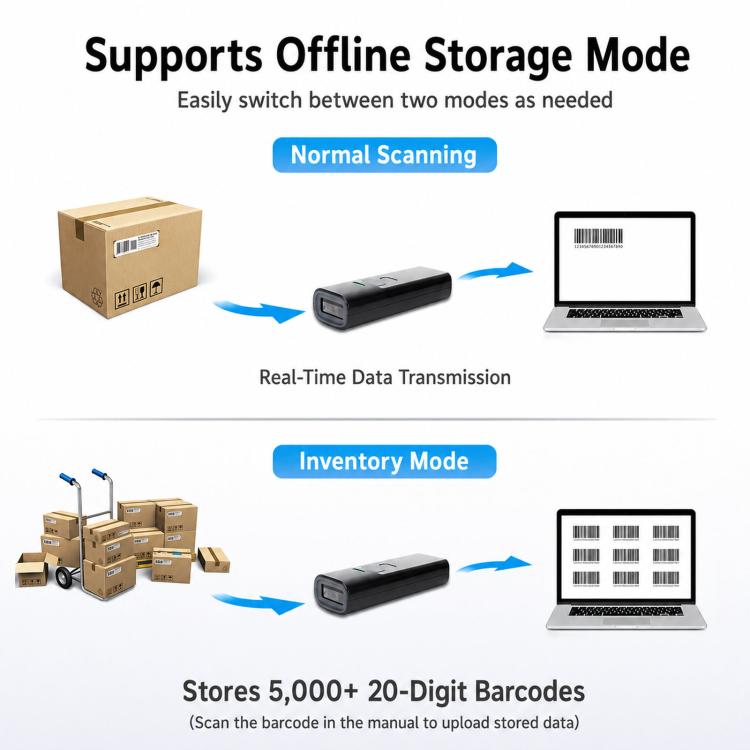

7. It supports offline inventory storage in both regular mode and offline inventory mode. In regular mode, barcode data is uploaded in real time; in offline inventory mode, barcodes can be stored locally, and the device can store no less than 5000 20-digit barcodes. Later, the data can be uploaded in batches

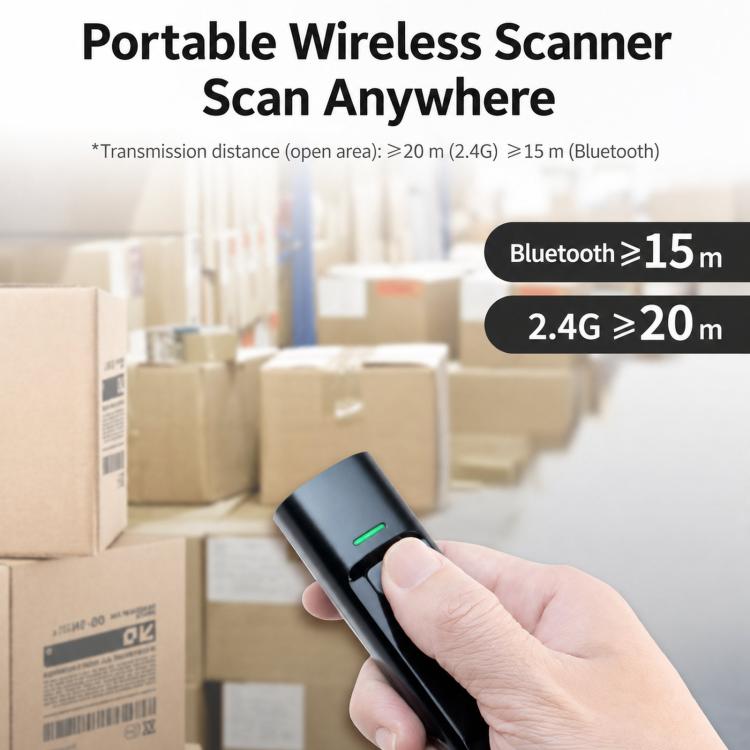

8. In open spaces, the Bluetooth transmission distance is at least 15 meters, and the 2.4G wireless transmission distance is at least 20 meters. During warehouse inventory and field receiving, the device can freely move and scan barcodes.

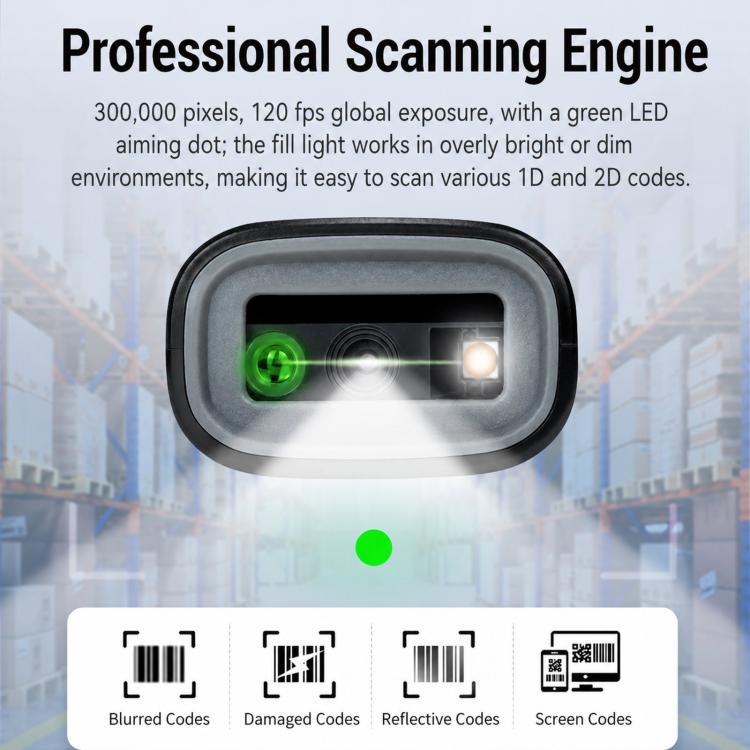

7. It is equipped with a green LED dot aiming and supplementary lighting. It can work stably in both bright and dim environments, easily recognizing one-dimensional and two-dimensional codes, supporting blurry codes, damaged codes, reflective codes, and mobile screen payment codes
Parameters
1. Image sensor: CMOS 640 x 480 sensor
2. Size: about 8.96 x 3.2 x 2.02 cm
3. Light source: white LED
4. Focusing: green LED dots
5. Barcode sensitivity: tilt ±60°, deviation ±60°, rotation 360°
6. Reading accuracy: greater than or equal to 5 mil
7. Symbol contrast: greater than or equal to 20%
8. Decoding capability: 1D barcode: Supports UPC-A, UPC-E, EAN-8, EAN-13, MSI, ISSN, ISBN, Code 93, Code 11, Code 128, Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBar; 2D barcode: Supports PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix

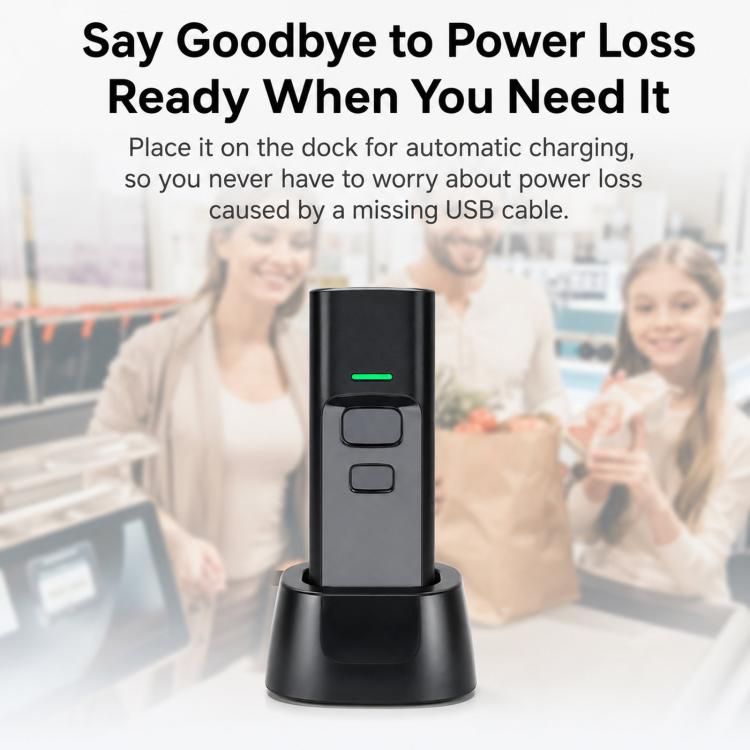

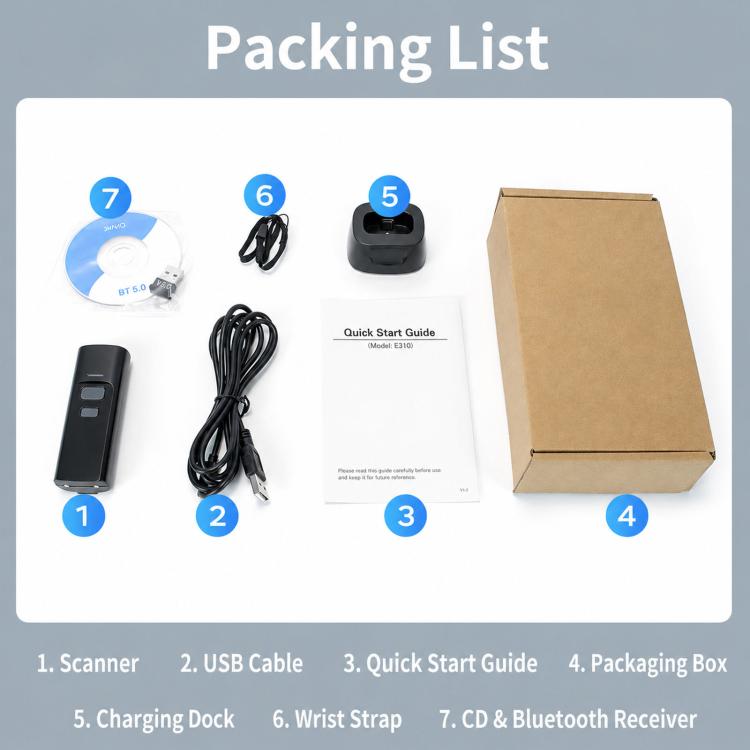

14. Packaging list: scanner x 1, USB cable x 1, quick start suide x 1, packaging box x 1, charging base x 1, rope x 1, CD x 1, bluetooth receiver x 1
Communication interface
1. Charging voltage: 5VDC ± 5%
2. Operating current (typical value): 240mA (3.7VDC)
3. Operating current (maximum value): 300mA (3.7VDC)
4. Standby current: 100mA (3.7VDC)
5. Sleep current: 40mA
6. Rated power consumption (typical value): 888mW (3.7VDC)
Wireless performance
1. Communication mode: synchronous upload mode / Manual batch upload mode
2. Wireless standard: 2.4G / Bluetooth
3. Transmission distance (open area): greater than or equal to 20 meters (2.4G); Greater than or equal to 15 meters (Bluetooth)
4. Storage capacity: greater than or equal to 5000 items (20-byte Code128)
5. Battery capacity: 1100mAh
6. Battery charging time: less than or equal to 4 hours
7. Continuous working time: greater than or equal to 8 hours (6 seconds/each) (2.4G upload mode)
User environment
1. Operating temperature: -10℃ - 45℃
2. Storage temperature: -20℃ - 50℃
3. Humidity: 5% - 95% (no condensation)

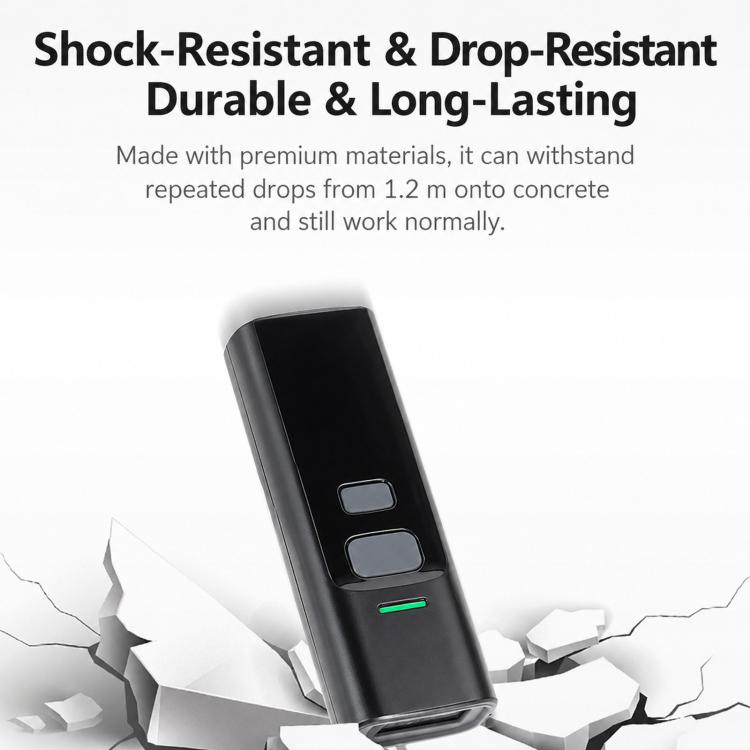

4. Drop test specification: can withstand multiple drops from 1.2m to a concrete floor
5. Protection grade: IP52
6. Electrostatic protection grade: ESD compliant with EN61000-4-2, ±15KV air discharge, ±8KV contact discharge
7. Environmental illumination: 0 - 100,000 LUX
8. LED safety grade: IEC62471
Specification:
|
Package Weight
|
| One Package Weight |
0.16kgs / 0.36lb
|
| One Package Size |
14cm * 7cm * 7cm / 5.51inch * 2.76inch * 2.76inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
44cm * 37cm * 30cm / 17.32inch * 14.57inch * 11.81inch
|
| Loading Container |
20GP: 546 cartons * 60 pcs = 32760 pcs
40HQ: 1267 cartons * 60 pcs = 76020 pcs
|
|
