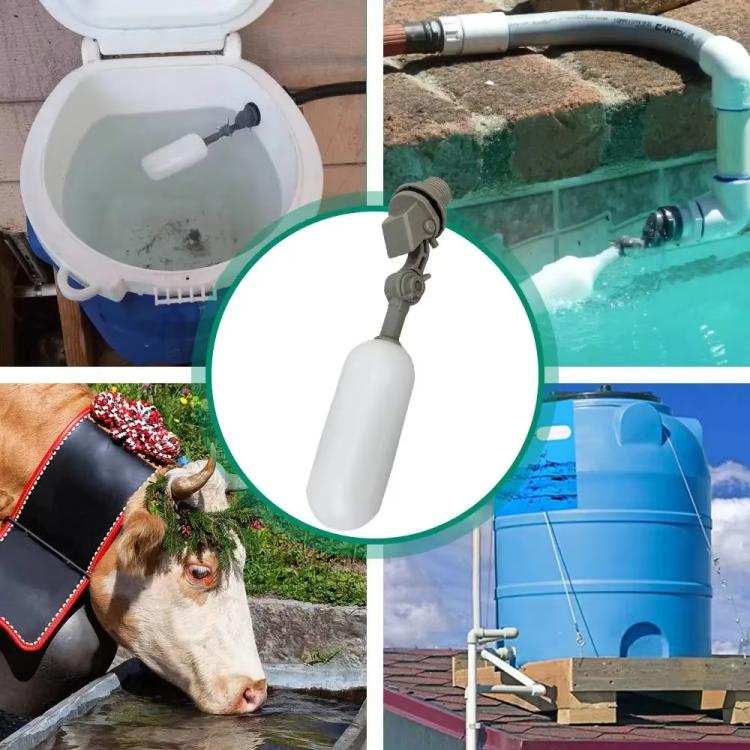

1. Purpose: Water level control for water tanks/water towers/water reservoirs.
2. Working Principle: When the water level in the tank drops, the float ball descends. Utilizing the water pressure inside the pipe, it opens the sealing silicone-faced plunger inside the valve body, allowing the valve to open and supply water. When the water level in the tank rises, the float ball ascends. The connecting rod drives the plunger, causing the silicone body to seal the water inlet hole, thereby stopping the water supply.

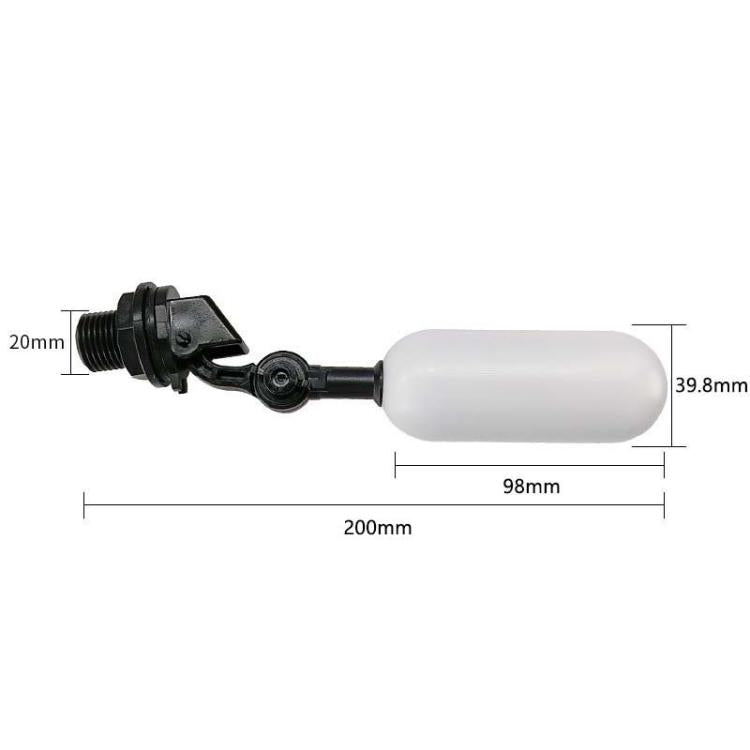

3. Dual Specifications Available: Offers two connection sizes: 1/2 inch (20mm) and 3/4 inch (25mm), compatible with standard water pipes.

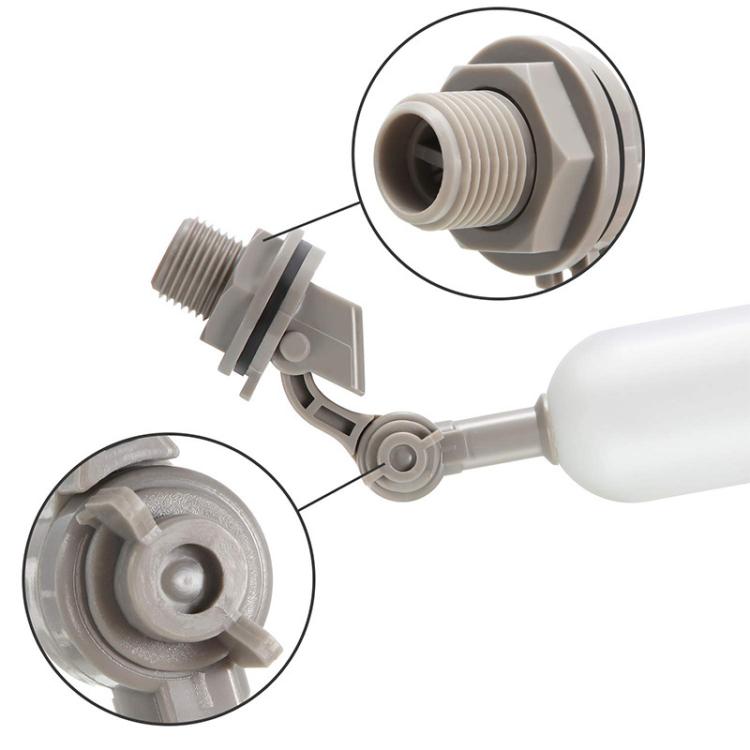

4. 225-Degree Rotatable Valve Head: Adapts to installation needs in confined spaces.
5. Valve Body Material: Eco-friendly ABS plastic.
6. Float Ball Material: PE (Polyethylene) plastic.
7. Operating Temperature: 0-50 degrees Celsius.
8. Operating Water Pressure: 0.1 - 10 kilograms-force per square centimeter.
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
24cm * 6cm * 6cm / 9.45inch * 2.36inch * 2.36inch
|
| Carton Weight |
5.90kgs / 13.01lb
|
| Carton Size |
46cm * 32cm * 38cm / 18.11inch * 12.6inch * 14.96inch
|
| Loading Container |
20GP: 476 cartons * 60 pcs = 28560 pcs
40HQ: 1106 cartons * 60 pcs = 66360 pcs
|
|
